Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 626-633 |

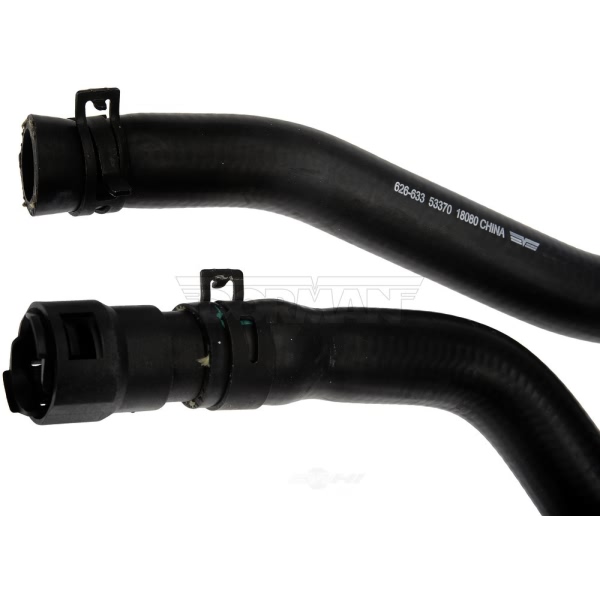

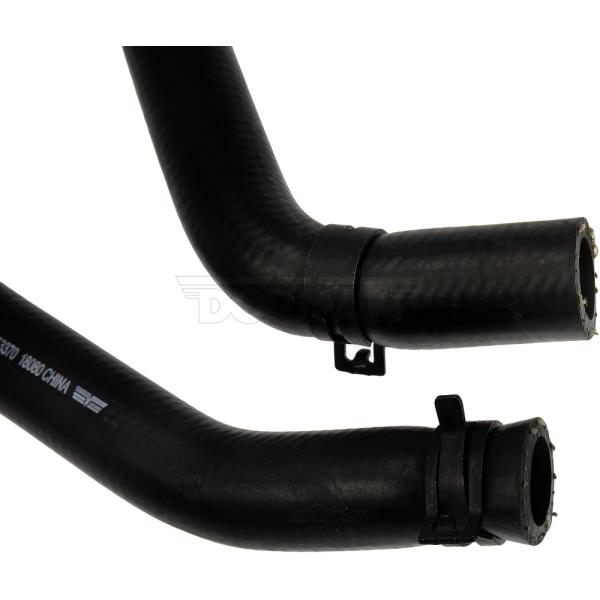

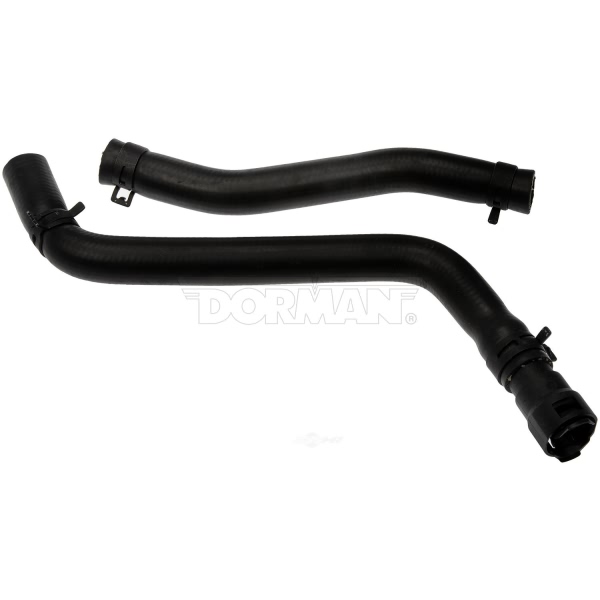

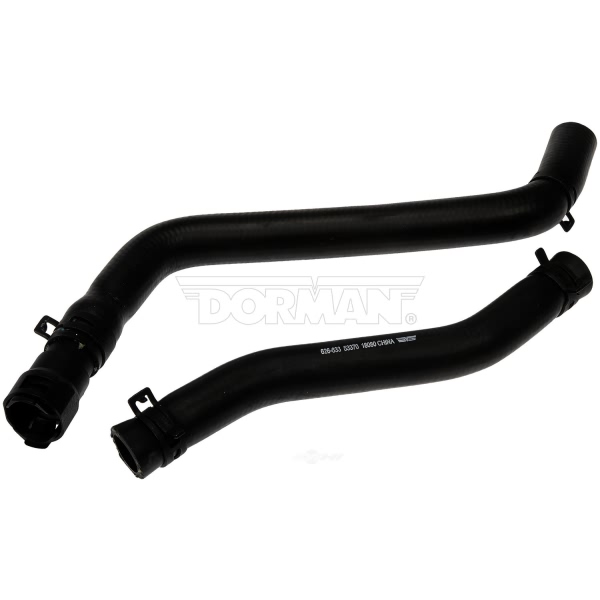

Part Description | Hvac Heater Hose Assembly |
Branch Quantity | 1 |
Color/Finish | Black/Rubber |
Contains Spring | No |
Coolant Hose Heat Shield Included | No |
Coolant Hose Length | 23" |
Coolant Hose Material | Rubber |
Coolant Hose Protective Sleeve Included | No |
Coolant Hose Type | Single I.D. (Inside Diameter) |
End 1 Attachment Type | Quick Connect |
End 2 Attachment Type | Clamp |
Grade Type | Regular |
Hose End (1) Inside Diameter (In) | 1.01" |
Hose End (1) Outside Diameter (In) | 10.7" |
Hose End (2) Inside Diameter (In) | 0.61" |
Hose End (2) Outside Diameter (In) | 0.99" |
Hose Shape | Molded Assembly |
Maximum Working Pressure (psi) | 100 PSI |
UPC | 885484724631 |
OE Part Number | 5C3Z18472F |
Thermostatically Controlled | No |
With Clamps | Yes |
Year Make Model | Trim | Engine |
---|---|---|
2005-2007 Ford F-250 Super Duty | All Trims | 8 Cyl 6.0L |
2005-2007 Ford F-350 Super Duty | All Trims | 8 Cyl 6.0L |
