Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 626-627 |

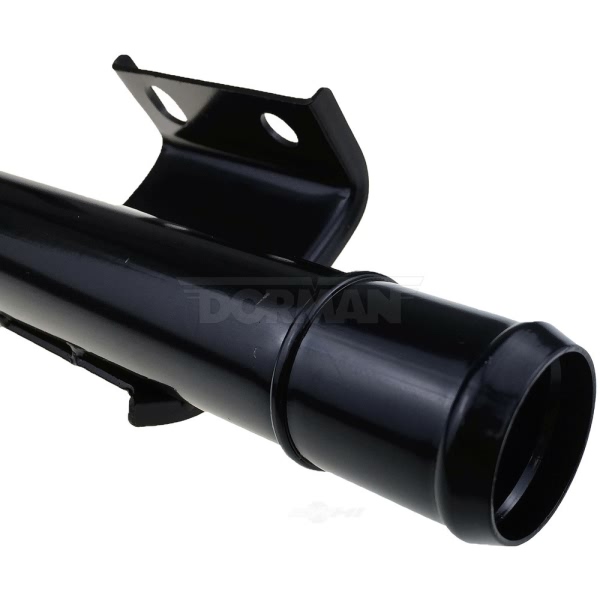

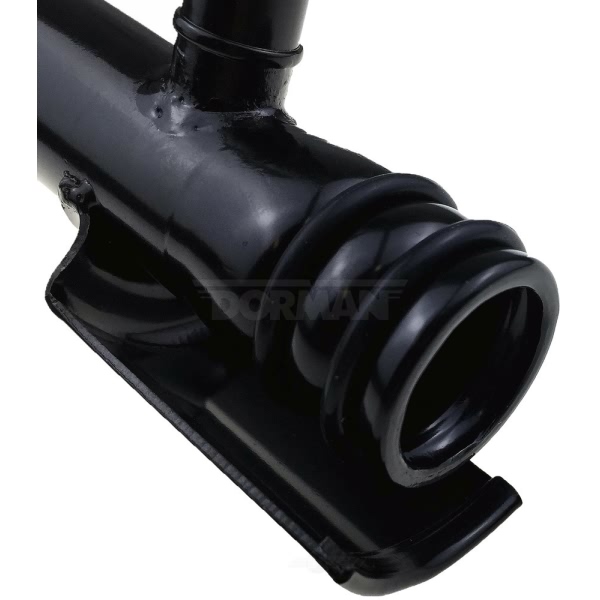

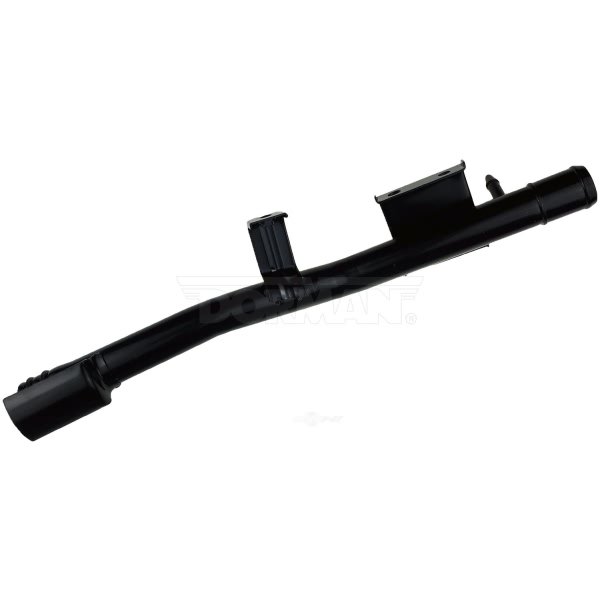

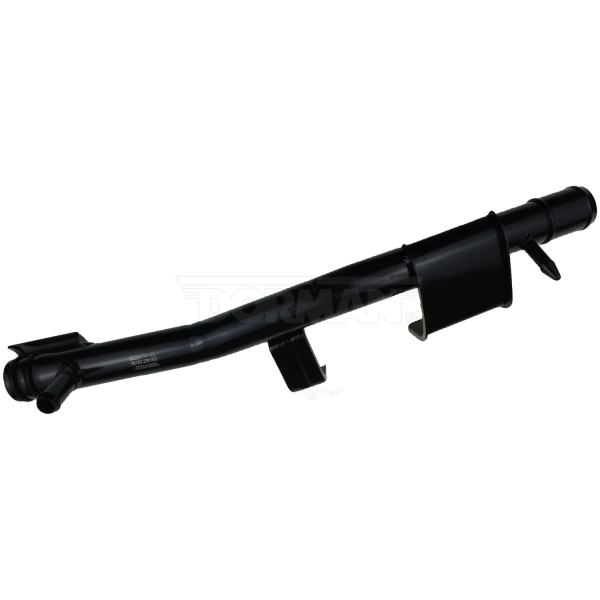

Part Description | Hvac Heater Hose Assembly |
Color/Finish | Black/Coated |
Contains Spring | No |
Coolant Hose Heat Shield Included | No |
Coolant Hose Length | 18" |
Coolant Hose Material | Steel |
Coolant Hose Protective Sleeve Included | No |
Coolant Hose Type | Single I.D. (Inside Diameter) |
End 1 Attachment Type | Hose |
End 2 Attachment Type | Straight |
End 3 Attachment Type | Hose |
Grade Type | Regular |
Hose End (1) Inside Diameter (In) | 1.065" |
Hose End (1) Outside Diameter (In) | 1.357" |
Hose End (2) Inside Diameter (In) | 1.143" |
Hose End (2) Outside Diameter (In) | 1.312" |
Hose End (3) Inside Diameter (In) | 0.467" |
Hose End (3) Outside Diameter (In) | 0.641" |
Hose Shape | Straight |
Maximum Working Pressure (psi) | 100 PSI |
UPC | 885484675056 |
OE Part Number | 1L5Z8592CF |
Package Contents | 1 Heater Hose Assembly; 2 O-Rings |
Thermostatically Controlled | No |
With Clamps | No |
Year Make Model | Trim | Engine |
---|---|---|
2001-2011 Ford Ranger | All Trims | 4 Cyl 2.3L |
