Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 626-605 |

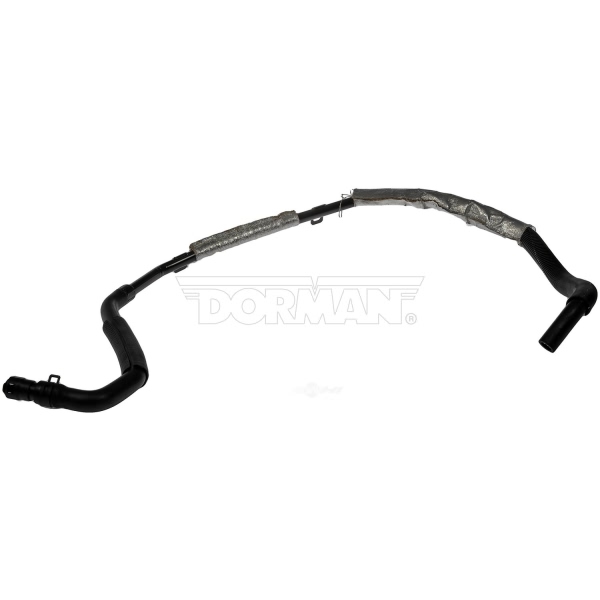

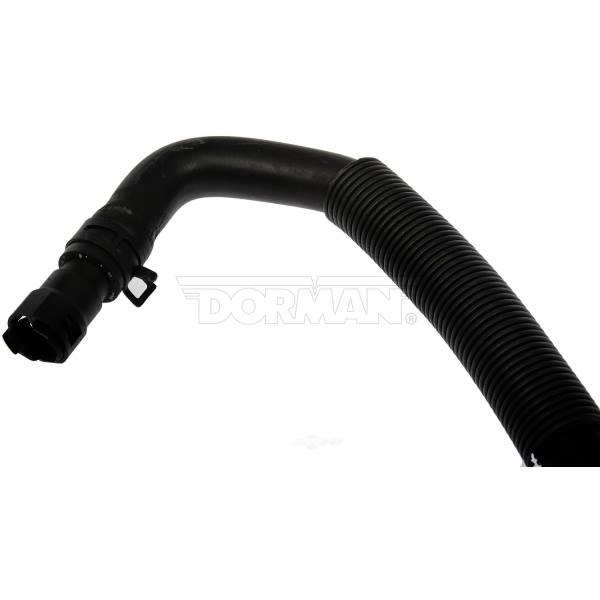

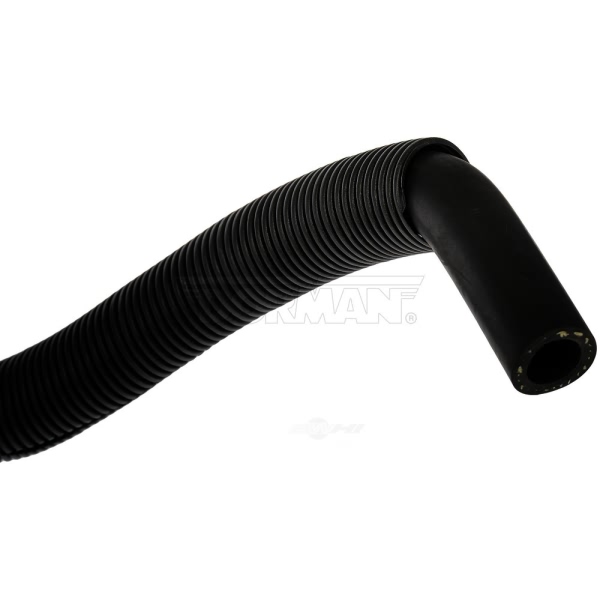

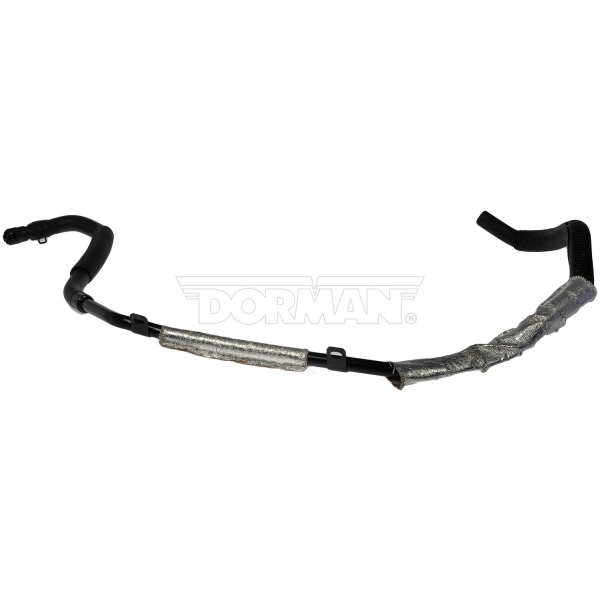

Part Description | Hvac Heater Hose Assembly |
Branch Quantity | 1 |
Color/Finish | Black; Rubber |
Contains Spring | No |
Coolant Hose Heat Shield Included | No |
Coolant Hose Length | 34" |
Coolant Hose Material | Aluminum; Rubber |
Coolant Hose Protective Sleeve Included | Yes |
Coolant Hose Type | Single I.D. (Inside Diameter) |
End 1 Attachment Type | Hose |
End 2 Attachment Type | Quick Connect |
Grade Type | Regular |
Hose End (1) Inside Diameter (In) | 0.68" |
Hose End (1) Outside Diameter (In) | 1.05" |
Hose End (2) Inside Diameter (In) | 1" |
Hose End (2) Outside Diameter (In) | 1.11" |
Hose Shape | Molded Assembly |
Maximum Working Pressure (psi) | 100 PSI |
UPC | 885484379206 |
OE Part Number | 7C3Z18472E, 7C3Z18472J |
Thermostatically Controlled | No |
With Clamps | No |
Year Make Model | Trim | Engine |
---|---|---|
2008-2010 Ford F-250 Super Duty | All Trims | 8 Cyl 6.4L |
2008-2010 Ford F-350 Super Duty | All Trims | 8 Cyl 6.4L |
