Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 626-575 |

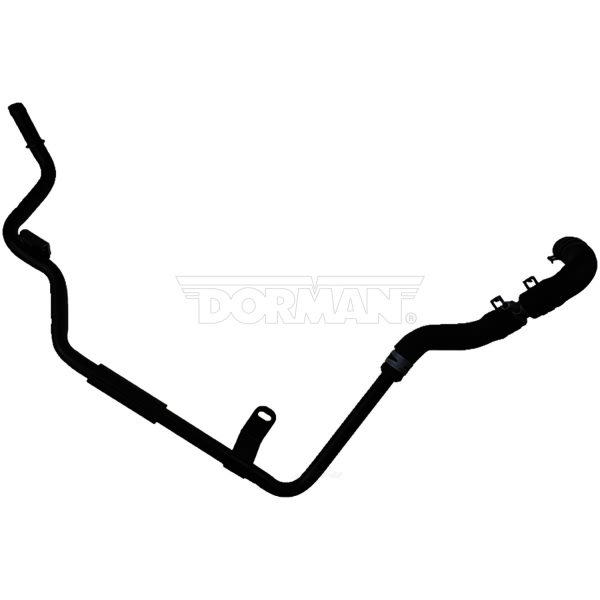

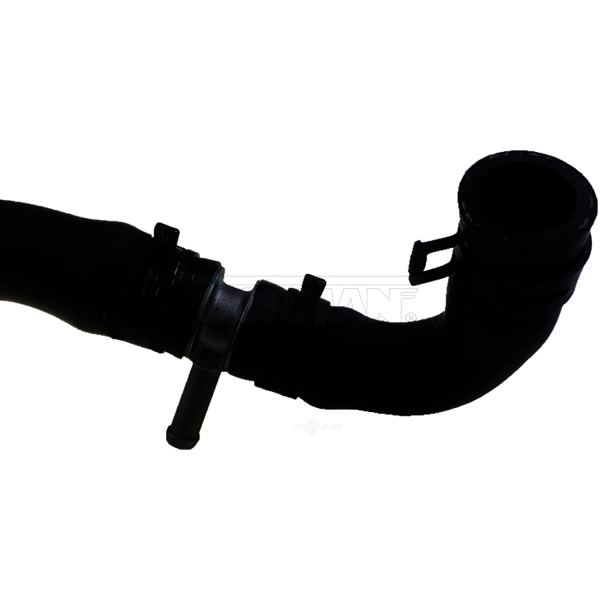

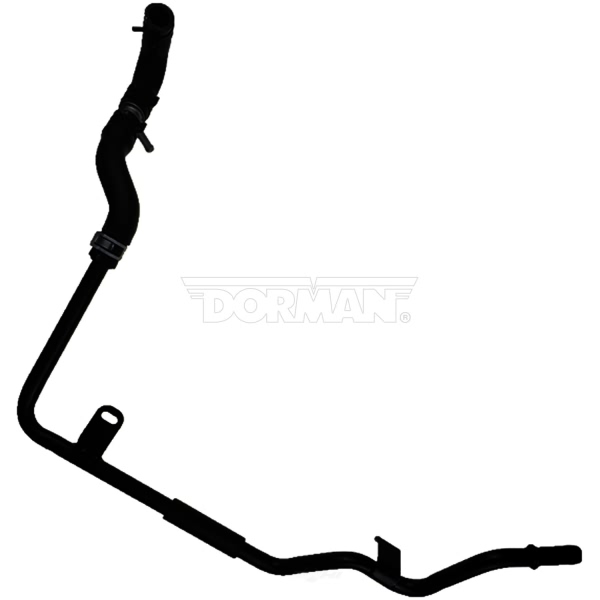

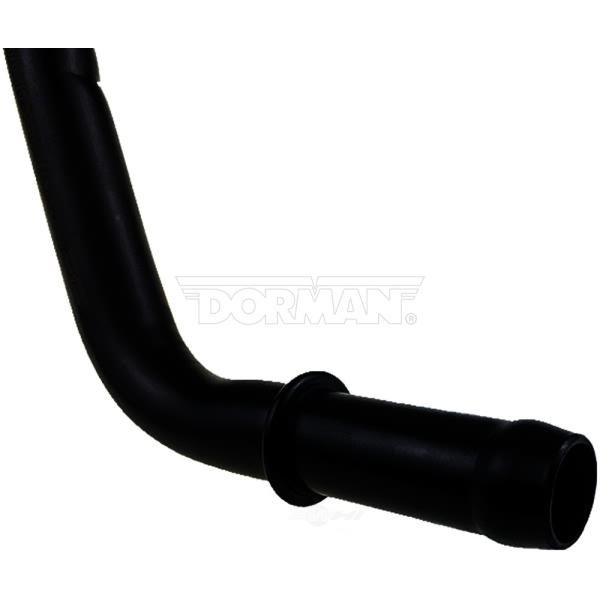

Part Description | Hvac Heater Hose Assembly |
Branch Quantity | 1 |
Color/Finish | Black/Coated |
Contains Spring | No |
Coolant Hose Heat Shield Included | No |
Coolant Hose Length | 24" |
Coolant Hose Material | Rubber |
Coolant Hose Protective Sleeve Included | No |
Coolant Hose Type | Single I.D. (Inside Diameter) |
End 1 Attachment Type | Hose |
End 2 Attachment Type | Clamp |
End 3 Attachment Type | Hose |
Grade Type | Regular |
Hose End (1) Inside Diameter (In) | 0.6" |
Hose End (1) Outside Diameter (In) | 1" |
Hose End (2) Inside Diameter (In) | 0.47" |
Hose End (2) Outside Diameter (In) | 0.67 In. |
Hose End (3) Inside Diameter (In) | 0.186" |
Hose End (3) Outside Diameter (In) | 0.31" |
Hose Shape | Molded Assembly |
Maximum Working Pressure (psi) | 100 PSI |
UPC | 885484718982 |
OE Part Number | GN3D6121XC |
Package Contents | 1 Heater Hose Assembly |
Thermostatically Controlled | No |
With Clamps | Yes |
Year Make Model | Trim | Engine |
---|---|---|
2005-2008 Mazda 6 | All Trims | 6 Cyl 3.0L |
