Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 626-557 |

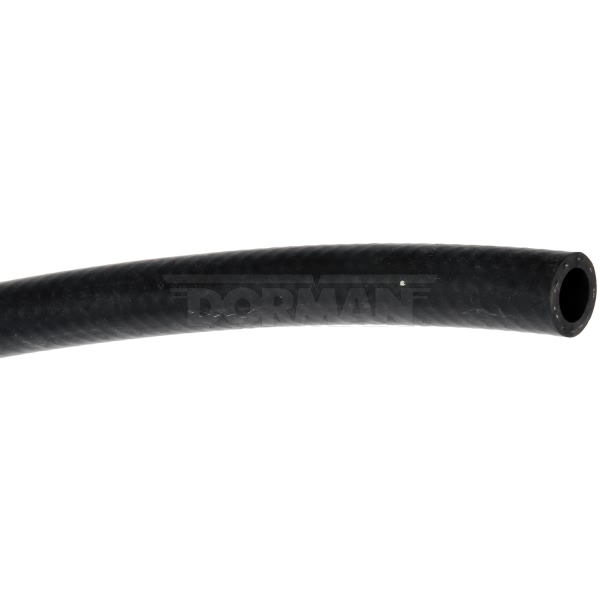

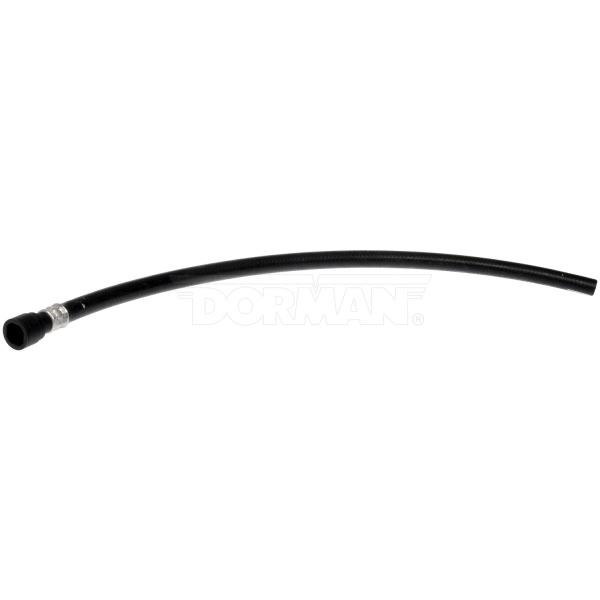

Part Description | Hvac Heater Hose Assembly |
Branch Quantity | 2 |
Color/Finish | Natural/No Finish |
Contains Spring | No |
Coolant Hose Heat Shield Included | No Heat Shield Required |
Coolant Hose Length | 34" |
Coolant Hose Material | Rubber |
Coolant Hose Protective Sleeve Included | Not Required |
Coolant Hose Type | Single I.D. (Inside Diameter) |
End 1 Attachment Type | Hose |

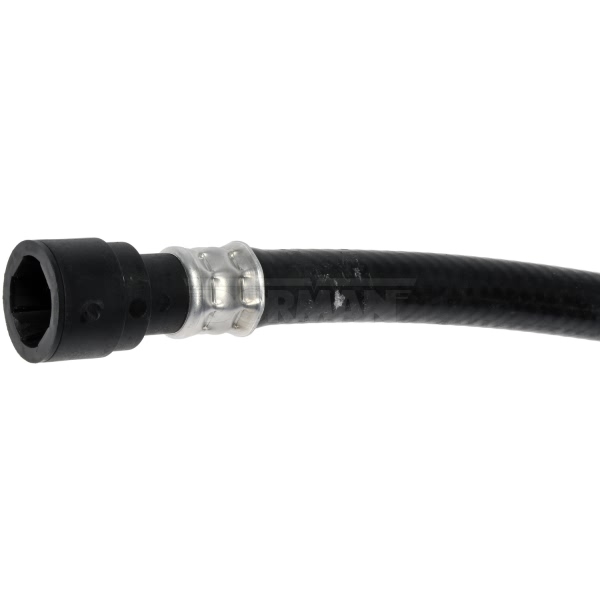

End 2 Attachment Type | Quick Disconnect |
Grade Type | Standard |
Hose End (1) Inside Diameter (In) | 0.99" |
Hose End (1) Outside Diameter (In) | 1.33" |
Hose End (2) Inside Diameter (In) | 1.33" |
Hose End (2) Outside Diameter (In) | 0.62 In. |
Hose End (3) Inside Diameter (In) | 0.9" |
Hose Shape | Straight |
Maximum Working Pressure (psi) | 100 PSI |
UPC | 885484595286 |
OE Part Number | 15763368 |
Package Contents | Heater Hose Assembly |
Thermostatically Controlled | No |
With Clamps | No |
Year Make Model | Trim | Engine |
---|---|---|
2002-2005 Cadillac Escalade | All Trims | 8 Cyl 5.3L |
2002-2006 Cadillac Escalade | All Trims | 8 Cyl 6.0L |
2003-2006 Cadillac Escalade ESV | All Trims | 8 Cyl 6.0L |
2002-2006 Cadillac Escalade EXT | All Trims | 8 Cyl 6.0L |
2002-2006 Chevrolet Avalanche 1500 | All Trims | 8 Cyl 5.3L |
2002-2006 Chevrolet Avalanche 2500 | All Trims | 8 Cyl 8.1L |
1999-2006 Chevrolet Silverado 1500 | All Trims | 8 Cyl 5.3L |
2000-2006 Chevrolet Silverado 1500 | All Trims | 8 Cyl 4.8L |
2003-2006 Chevrolet Silverado 1500 | All Trims | 8 Cyl 6.0L |
2007 Chevrolet Silverado 1500 Classic | All Trims | 8 Cyl 4.8L |
