Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 626-556 |

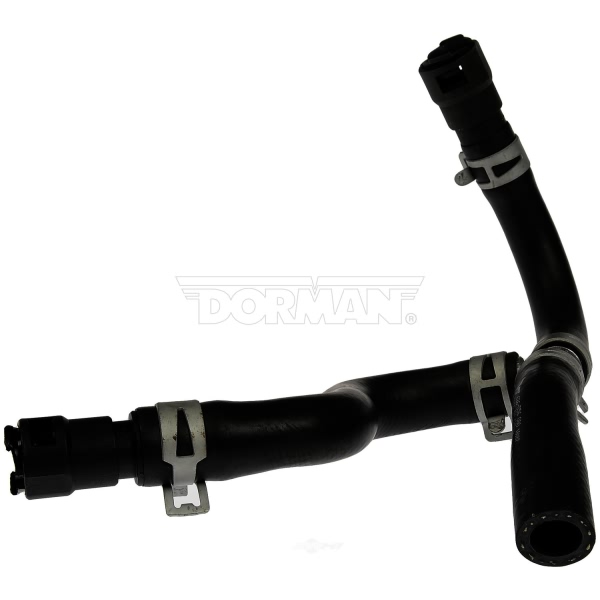

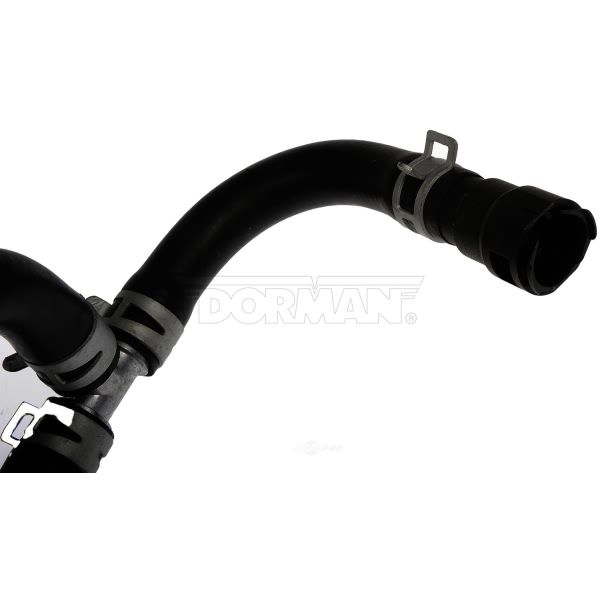

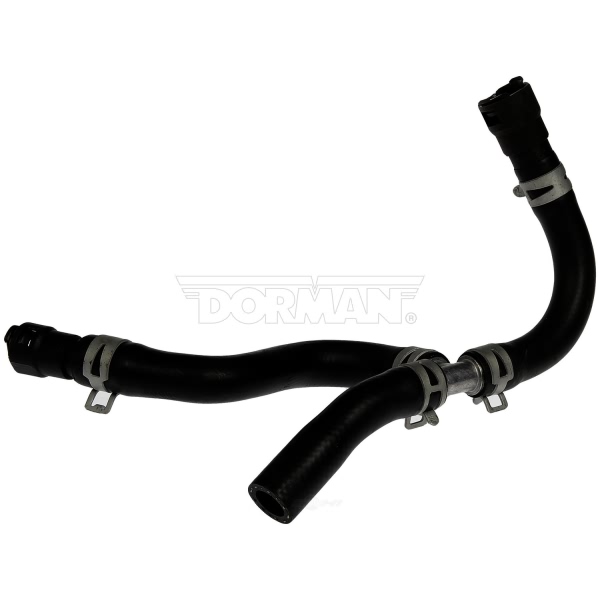

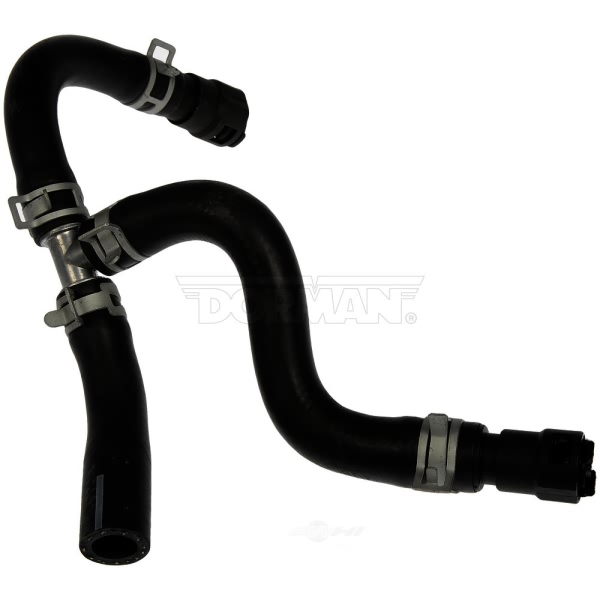

Part Description | Hvac Heater Hose Assembly |
Branch Quantity | 2 |
Color/Finish | Black/Rubber |
Contains Spring | No |
Coolant Hose Heat Shield Included | No |
Coolant Hose Length | 11" |
Coolant Hose Material | Aluminum and Rubber |
Coolant Hose Protective Sleeve Included | No |
Coolant Hose Type | Branched |
End 1 Attachment Type | Hose |
End 2 Attachment Type | Quick Connect |
End 3 Attachment Type | Quick Connect |
Grade Type | Regular |
Hose End (1) Inside Diameter (In) | 0.686" |
Hose End (1) Outside Diameter (In) | 1.04" |
Hose End (2) Inside Diameter (In) | 0.849" |
Hose End (2) Outside Diameter (In) | 1.041" |
Hose End (3) Inside Diameter (In) | 1.009" |
Hose End (3) Outside Diameter (In) | 1.128" |
Hose Shape | Molded Assembly |
Maximum Working Pressure (psi) | 100 PSI |
UPC | 885484592773 |
OE Part Number | 20765678 |
Thermostatically Controlled | No |
With Clamps | Yes |
Year Make Model | Trim | Engine |
---|---|---|
2008-2017 Buick Enclave | All Trims | All Engines |
2009-2017 Chevrolet Traverse | All Trims | All Engines |
2007-2017 GMC Acadia | All Trims | All Engines |
2007-2010 Saturn Outlook | All Trims | All Engines |
