Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 626-544 |

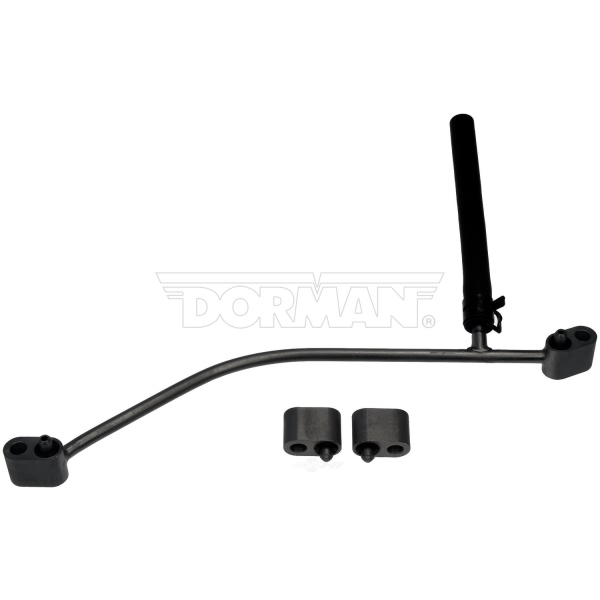

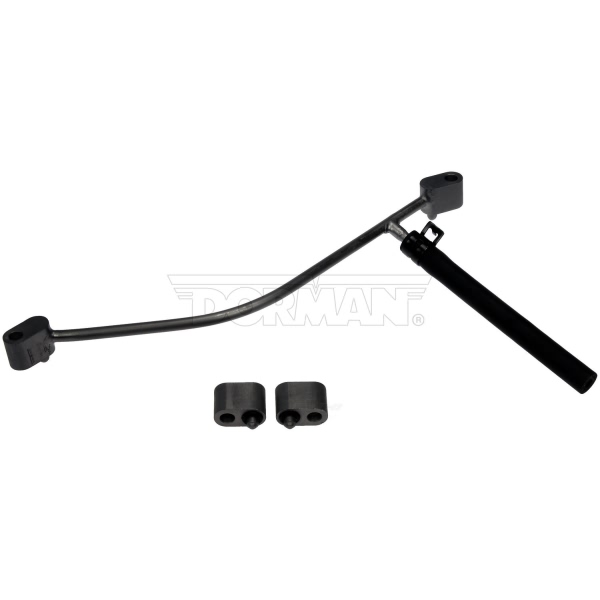

Part Description | Hvac Heater Hose Assembly |
Color/Finish | Natural/No Finish |
Coolant Hose Heat Shield Included | No Heat Shield Required |
Coolant Hose Length | 11" |
Coolant Hose Material | Steel |
Coolant Hose Protective Sleeve Included | Not Required |
Coolant Hose Type | Single I.D. (Inside Diameter) |
End 1 Attachment Type | Flange |
End 2 Attachment Type | Flange |
End 3 Attachment Type | Hose |
Hose End (1) Inside Diameter (In) | 0.22" |
Hose End (1) Outside Diameter (In) | 0.23" |
Hose End (2) Inside Diameter (In) | 0.22" |
Hose End (2) Outside Diameter (In) | 0.23" |
Hose End (3) Inside Diameter (In) | 0.22" |
Hose End (3) Outside Diameter (In) | 0.5" |
Maximum Working Pressure (psi) | 100 PSI |
UPC | 885484410190 |
OE Part Number | 12602544 |
Thermostatically Controlled | No |
With Clamps | No |
Year Make Model | Trim | Engine |
---|---|---|
2004 Cadillac XLR | All Trims | 8 Cyl 4.6L |
1997-2004 Chevrolet Corvette | All Trims | 8 Cyl 5.7L |
