Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 626-534 |

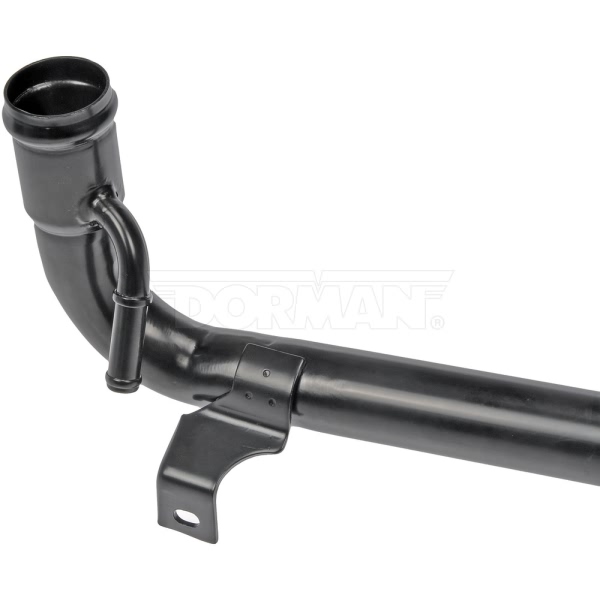

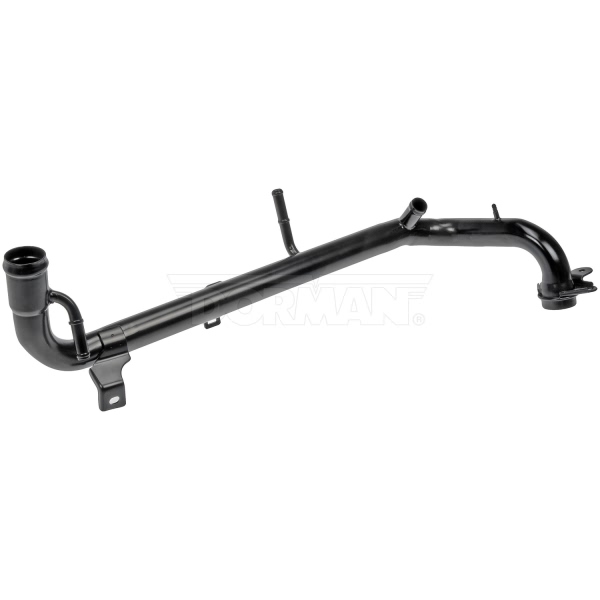

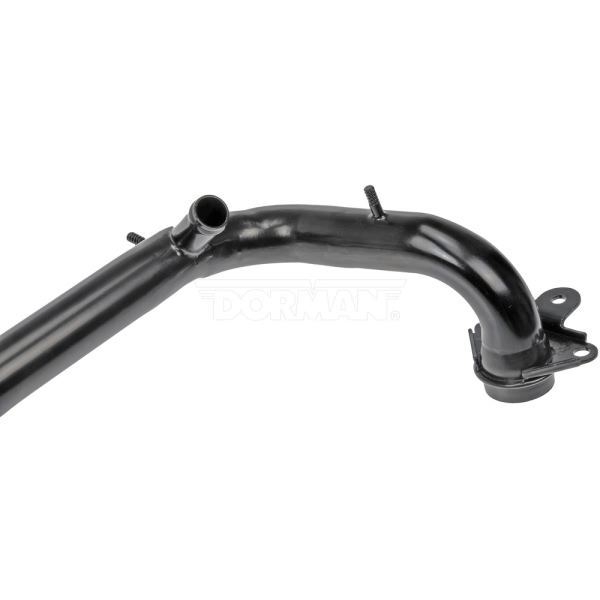

Part Description | Hvac Heater Hose Assembly |
Color Finish | Black/Coated |
Coolant Hose Heat Shield Included | No Heat Shield Required |
Coolant Hose Length | 21" |
Coolant Hose Material | Steel |
Coolant Hose Protective Sleeve Included | No Protective Sleeve Required |
Coolant Hose Type | Branched |
End 1 Attachment Type | Flange |
End 2 Attachment Type | Hose |
Hose End 1 Inside Diameter in | 1.18" |
Hose End 1 outside Diameter in | 1.27" |
Hose End 2 Inside Diameter in | 1.15" |
Hose End 2 Outside Diameter In | 1.26" |
Maximum Working Pressure Psi | 100 PSI |
UPC | 037495629508 |
OE Part Number | 06B121071L |
Package Contents | Heater Hose Assembly |
Package Quantity | 1 |
Packaging Type | Bag |
Thermostatically Controlled | No |
With Clamps | No |
Year Make Model | Trim | Engine |
---|---|---|
1999-2001 Audi A4 | All Trims | 4 Cyl 1.8L |
1999-2001 Audi A4 Quattro | All Trims | 4 Cyl 1.8L |
1999-2005 Volkswagen Passat | All Trims | 4 Cyl 1.8L |
