Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 626-502 |

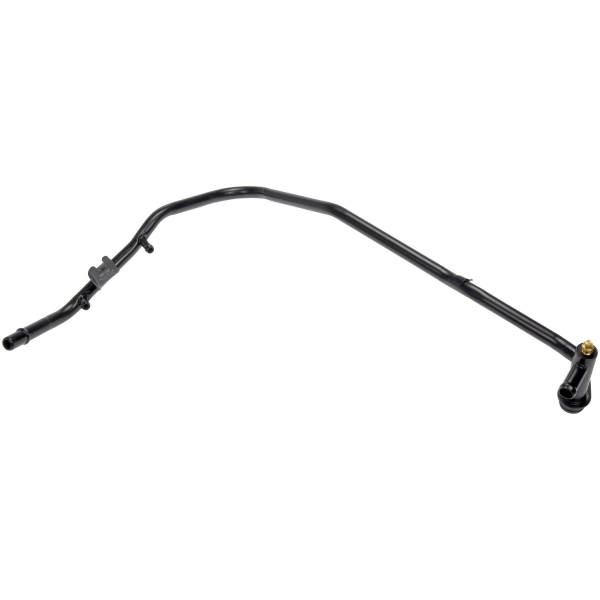

Part Description | Hvac Heater Hose Assembly |
Color | Black/Coated |
Coolant Hose Heat Shield Included | No Heat Shield Required |
Coolant Hose Length | 35" |
Coolant Hose Material | Steel |
Coolant Hose Protective Sleeve Included | No Protective Sleeve Required |
Coolant Hose Type | Dual I.D. (Inside Diameter) |

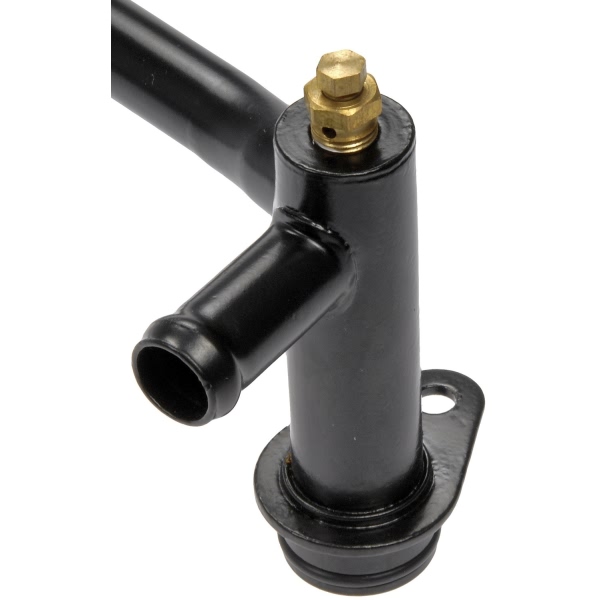

End 1 Attachment Type | Flange |
End 2 Attachment Type | Quick Disconnect |
Hose End (1) Inside Diameter (In) | 0.79" |
Hose End (1) Outside Diameter (In) | 1.05" |
Hose End (2) Inside Diameter (In) | 0.5" |
Hose End (2) Outside Diameter (In) | 0.62" |
Maximum Working Pressure (psi) | 100 |
UPC | 019495419952 |
OE Part Number | 24507950 |
Package Contents | Heater Hose Assembly |
SAE Standards | J20 |
Thermostatically Controlled | No |
With Clamps | No |
Year Make Model | Trim | Engine |
---|---|---|
2002-2005 Buick Rendezvous | All Trims | 6 Cyl 3.4L |
2000-2005 Chevrolet Venture | All Trims | 6 Cyl 3.4L |
2000-2004 Oldsmobile Silhouette | All Trims | 6 Cyl 3.4L |
2001-2005 Pontiac Aztek | All Trims | 6 Cyl 3.4L |
2000-2005 Pontiac Montana | All Trims | 6 Cyl 3.4L |
