Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 626-217 |

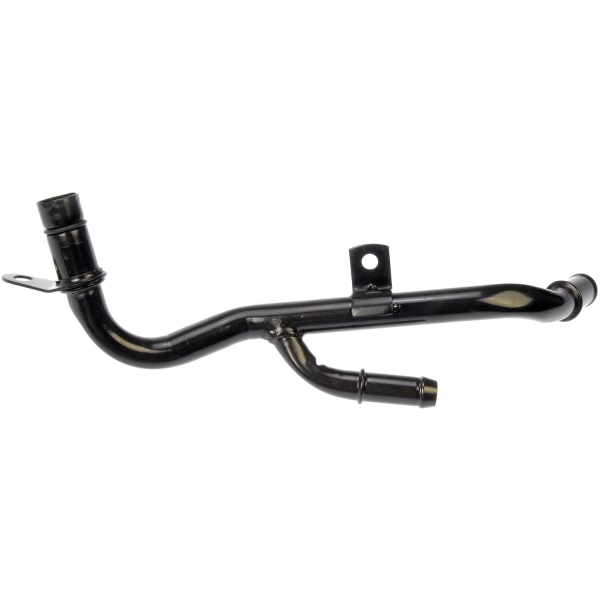

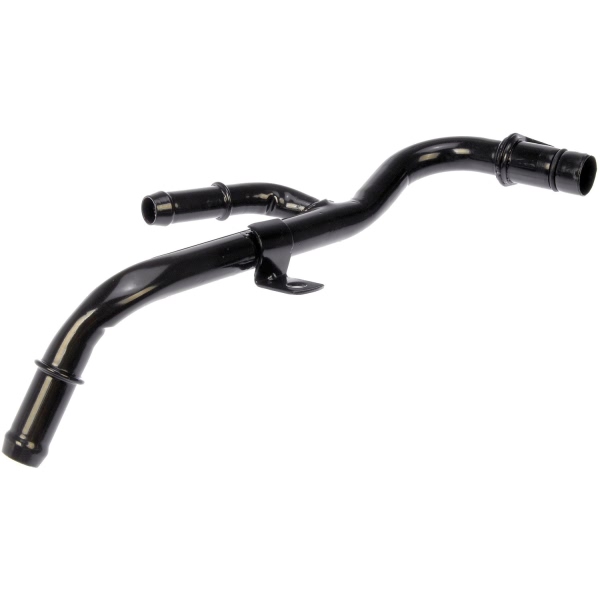

Part Description | Hvac Heater Hose Assembly |
Color | Black/Coated |
Coolant Hose Heat Shield Included | No Heat Shield Required |
Coolant Hose Length | 13" |
Coolant Hose Material | Steel |
Coolant Hose Protective Sleeve Included | No Protective Sleeve Required |
Coolant Hose Type | Branched |
End 1 Attachment Type | Flange |
End 2 Attachment Type | Flared |
End 3 Attachment Type | Flared |
Hose End (1) Inside Diameter (In) | 0.78" |
Hose End (1) Outside Diameter (In) | 0.88" |
Hose End (2) Inside Diameter (In) | 0.47" |
Hose End (2) Outside Diameter (In) | 0.63" |
Hose End (3) Inside Diameter (In) | 0.6" |
Hose End (3) Outside Diameter (In) | 0.75" |
Maximum Working Pressure (psi) | 100 |
UPC | 019495381020 |
OE Part Number | F68Z18B402DA |
Package Contents | Heater Hose |
SAE Standards | Not Applicable |
Thermostatically Controlled | No |
With Clamps | No |
Year Make Model | Trim | Engine |
---|---|---|
1996-1998 Ford Windstar | All Trims | 6 Cyl 3.8L |
