Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 626-202 |

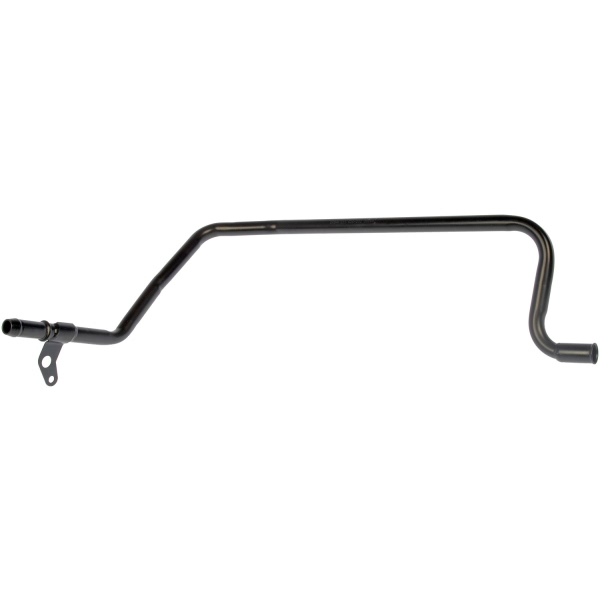

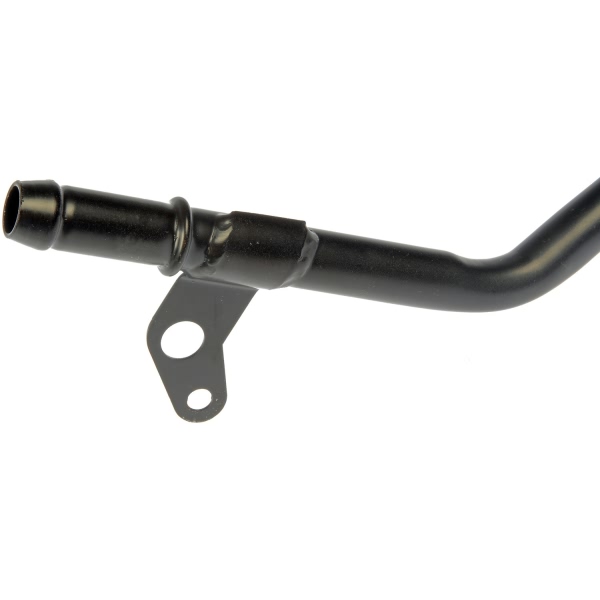

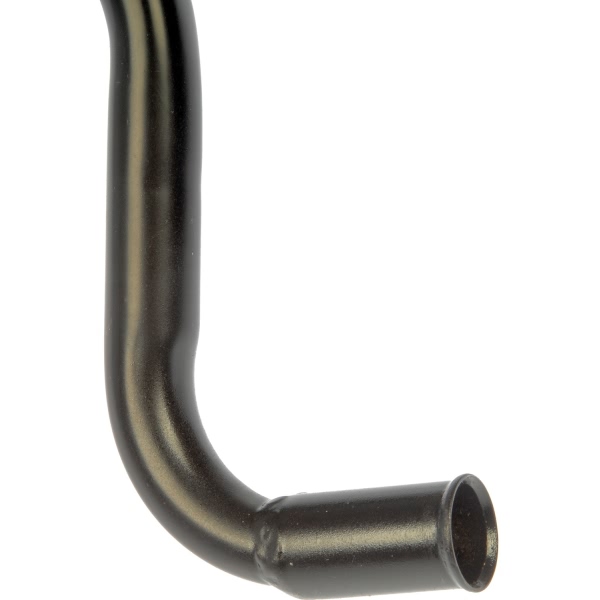

Part Description | Hvac Heater Hose Assembly |
Color | Black/Coated |
Coolant Hose Heat Shield Included | No Heat Shield Required |
Coolant Hose Length | 34" |
Coolant Hose Material | Steel |
Coolant Hose Protective Sleeve Included | No Protective Sleeve Required |
Coolant Hose Type | Branched |
End 1 Attachment Type | Flared |
End 2 Attachment Type | Flared |
Hose End (1) Inside Diameter (In) | 0.625" |
Hose End (1) Outside Diameter (In) | 0.66" |
Hose End (2) Inside Diameter (In) | 0.485" |
Hose End (2) Outside Diameter (In) | 0.69" |
Maximum Working Pressure (psi) | 100 |
UPC | 019495148067 |
OE Part Number | 3W7Z 18663-BA, 9W7Z18663A |
Package Contents | Heater Hose Assembly |
SAE Standards | J20 |
Thermostatically Controlled | No |
With Clamps | Not Required |
Year Make Model | Trim | Engine |
---|---|---|
2003-2009 Ford Crown Victoria | All Trims | All Engines |
2003-2009 Lincoln Town Car | All Trims | All Engines |
2003-2009 Mercury Grand Marquis | All Trims | All Engines |
