Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 626-114 |

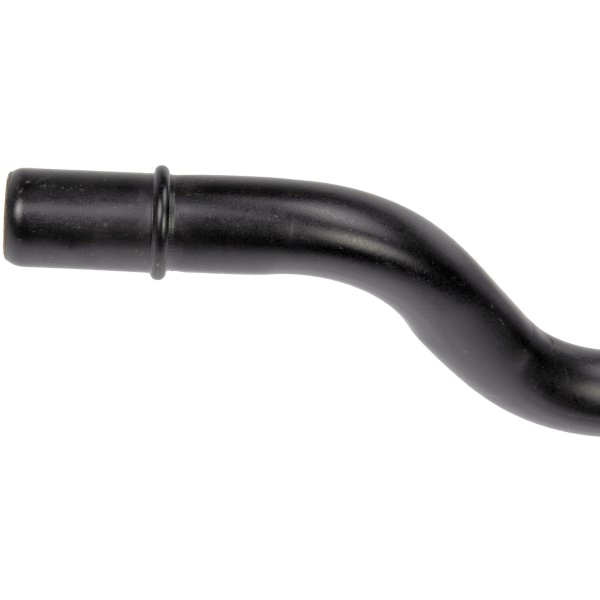

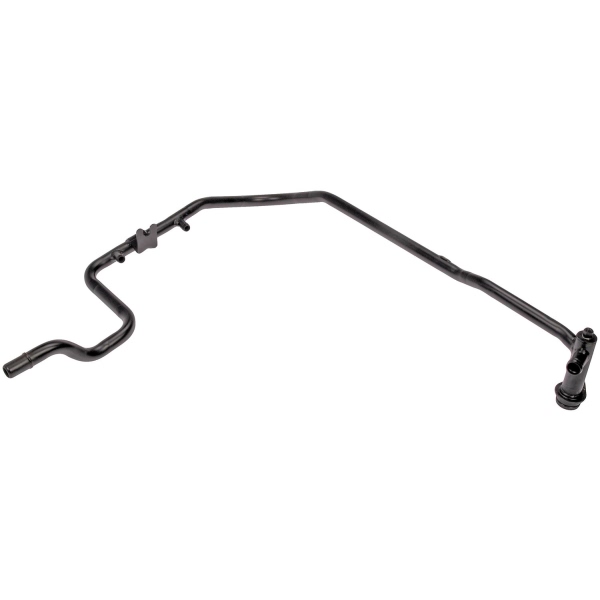

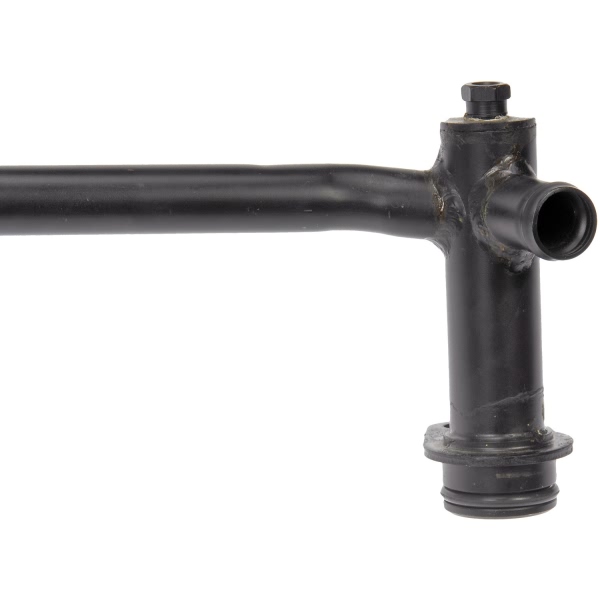

Part Description | Hvac Heater Hose Assembly |
Color | Black/Coated |
Coolant Hose Heat Shield Included | No |
Coolant Hose Length | 21" |
Coolant Hose Material | Steel |
Coolant Hose Protective Sleeve Included | No Protective Sleeve Required |
Coolant Hose Type | Branched |
End 1 Attachment Type | Flange |
End 2 Attachment Type | Quick Connect |
Hose End (1) Inside Diameter (In) | 0.78" |
Hose End (1) Outside Diameter (In) | 1.05" |
Hose End (2) Inside Diameter (In) | 0.44" |
Hose End (2) Outside Diameter (In) | 0.62" |
Maximum Working Pressure (psi) | 100 |
UPC | 019495356011 |
OE Part Number | 12568001 |
Package Contents | Heater Hose Assembly |
SAE Standards | J20 |
Thermostatically Controlled | No |
With Clamps | No |
Year Make Model | Trim | Engine |
---|---|---|
2001-2003 Chevrolet Malibu | All Trims | 6 Cyl 3.1L |
2001-2004 Oldsmobile Alero | All Trims | 6 Cyl 3.4L |
2001-2005 Pontiac Grand Am | All Trims | 6 Cyl 3.4L |
