Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 626-110 |

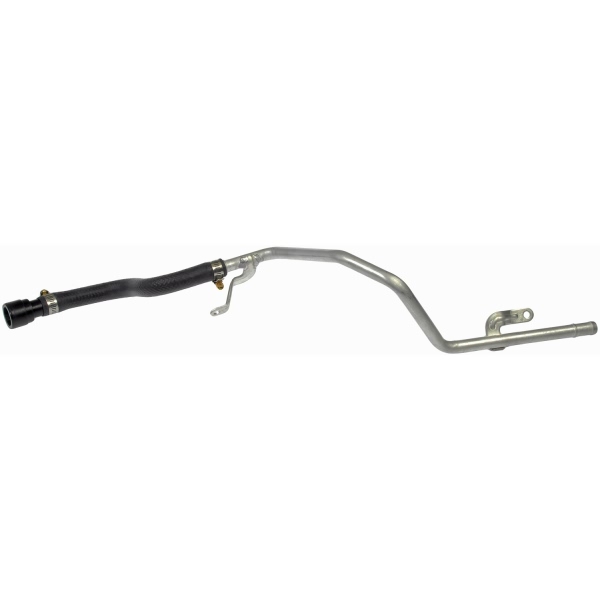

Part Description | Hvac Heater Hose Assembly |
Color | Natural |
Coolant Hose Heat Shield Included | No Heat Shield Required |
Coolant Hose Length | 29.5" |
Coolant Hose Material | Aluminum and Rubber |
Coolant Hose Protective Sleeve Included | No Protective Sleeve Required |
Coolant Hose Type | Single I.D. (Inside Diameter) |

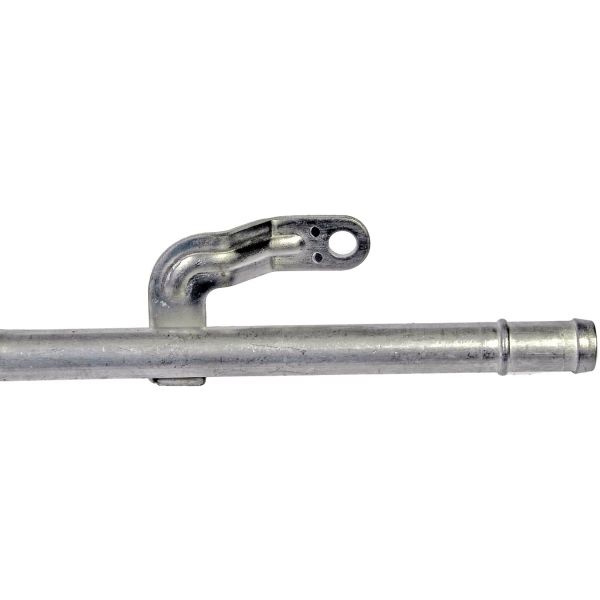

End 1 Attachment Type | Barbed |

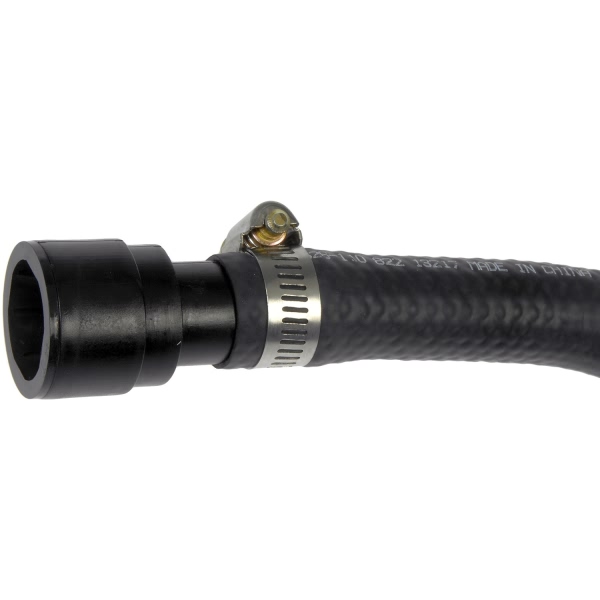

End 2 Attachment Type | Quick Disconnect |
Hose End (1) Inside Diameter (In) | 0.5" |
Hose End (1) Outside Diameter (In) | 0.63" |
Hose End (2) Inside Diameter (In) | 0.75" |
Hose End (2) Outside Diameter (In) | 0.85" |
Maximum Working Pressure (psi) | 100 |
UPC | 019495426998 |
OE Part Number | 15768212 |
Package Contents | Heater Hose Assembly |
SAE Standards | J20 |
Thermostatically Controlled | No |
With Clamps | No |
Year Make Model | Trim | Engine |
---|---|---|
2001-2004 Chevrolet Silverado 2500 HD | All Trims | 8 Cyl 6.6L |
2001-2004 Chevrolet Silverado 3500 | All Trims | 8 Cyl 6.6L |
2001-2004 GMC Sierra 2500 HD | All Trims | 8 Cyl 6.6L |
2001-2004 GMC Sierra 3500 | All Trims | 8 Cyl 6.6L |
