Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 2630352 |

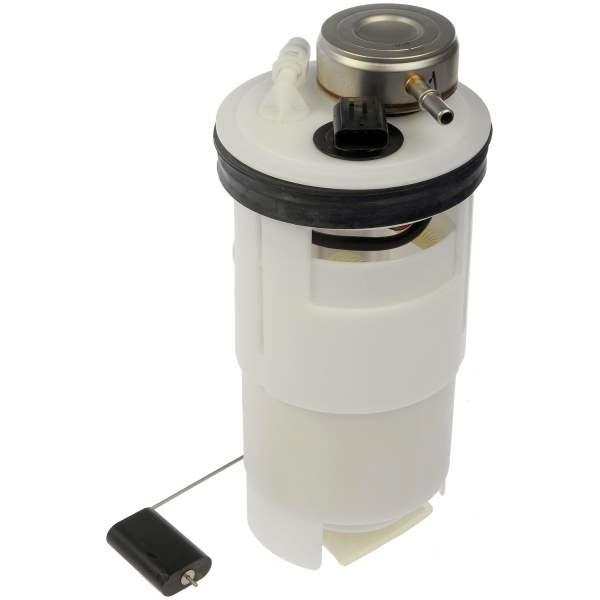

Part Description | Fuel Tank Sending Unit |
Connector Color | Black |
Connector Gender | Male |
Connector Shape | Square |
Gasket or Seal Included | Yes |
Height | 366 |
Housing Length | 215 |
Housing Material | Plastic |
Housing Width | 120 |
Inlet Type | Filter |
Length | 220 |
Lock Ring Included | No |
Maximum Flow Rating | 42.27 |
Maximum Pressure | 50 |
Outlet Diameter | 3/8 In.; 3/8 In. |
Outlet Quantity | 2 |
Outlet Type | Male Quick Connect |
Package Contents | 1 Fuel Pump Module Assembly |
Terminal Gender | Male |
Terminal Quantity | 3 |
Terminal Type | Spade |
Top Mount Diameter | 147 |
Universal Or Specific Fit | Specific |
UPC | 747214303526 |
Width | 147 |
Wire Gauge Measurement | 15 or 17 |
Wire Quantity | 4 |
Year Make Model | Trim | Engine |
---|---|---|
2002-2003 Dodge Ram 1500 Van | All Trims | All Engines |
2002-2003 Dodge Ram 2500 Van | All Trims | All Engines |
2002-2003 Dodge Ram 3500 Van | All Trims | All Engines |
