Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 2630308 |

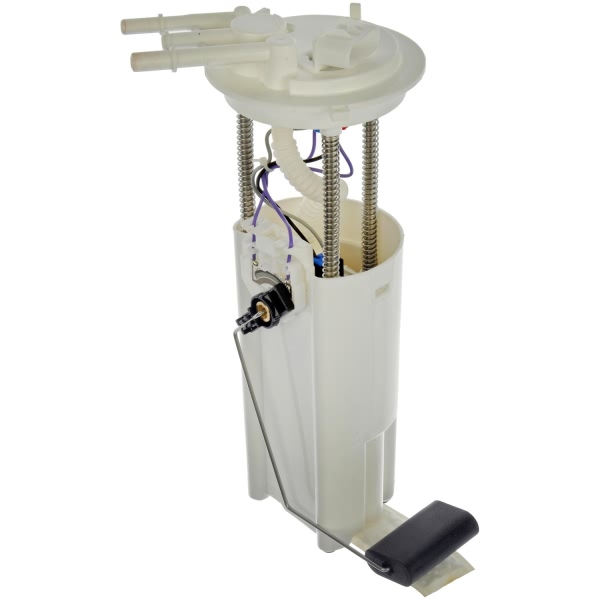

Part Description | Fuel Tank Sending Unit |
Connector Color | White |
Connector Gender | Female |
Connector Shape | Flat Plug |
Height | 270 mm |
Housing Length | 184 mm |
Housing Material | Plastic (Polybutylene Terephthalate) |
Housing Width | 94 mm |
Inlet Diameter | 7.89 mm |
Inlet Type | Male |
Length | 19.5 mm |
Lock Ring Included | No |
Maximum Flow Rating | 117 LPH |
Maximum Pressure | 0.8 MPA |
UPC | 747214016419 |
OE Part Number | 19179597, 25314022, 25314327, 25314329 |
Outlet Diameter | 9.49 mm |
Outlet Quantity | 1 |
Outlet Type | Male |

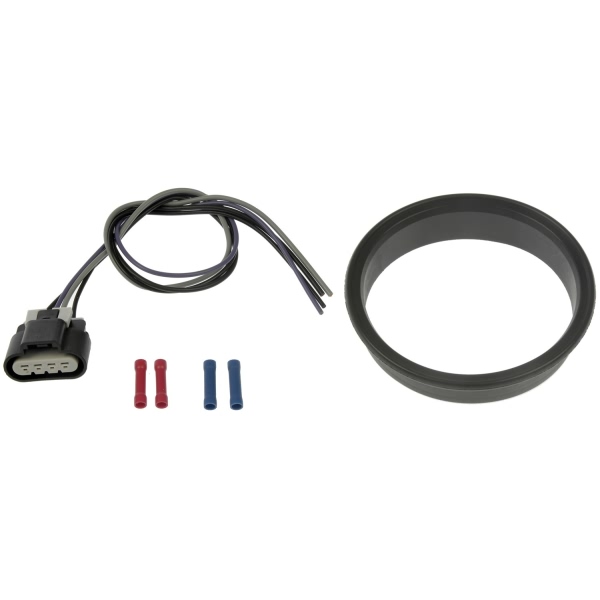

Seal Included | Yes |
Terminal Gender | Male Female |
Terminal Quantity | 4 |
Terminal Type | Spade |
Top Mount Diameter | 6.35 mm |
Universal Or Specific Fit | Specific |
Width | 6.35 mm |
Wire Gauge Measurement | 1.5 AWG |
Wire Quantity | 4 |
Year Make Model | Trim | Engine |
---|---|---|
1999-2000 Cadillac Escalade | All Trims | All Engines |
1998-2000 Chevrolet Tahoe | All Trims | 8 Cyl 5.7L |
1998-1999 GMC Yukon | All Trims | All Engines |
2000 GMC Yukon | All Trims | 8 Cyl 5.7L |
