Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 2630327 |

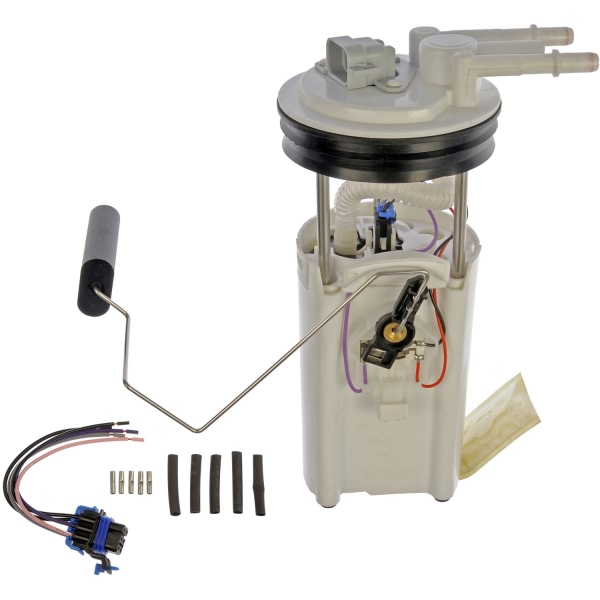

Part Description | Fuel Pump Module Assembly |
Connector Color | Gray |
Connector Gender | Female |
Connector Shape | Square |
Gasket or Seal Included | Yes |
Height | 272 |
Housing Length | 168 |
Housing Material | Plastic |
Housing Width | 92 |
Inlet Type | Jet |
Length | 170 |
Lock Ring Included | No |
Maximum Flow Rating | 47.56 |
Maximum Pressure | 110 |
Outlet Diameter | 3/8 In.; 3/8 In. |
Outlet Quantity | 2 |
Outlet Type | Male Quick Connect |
Package Contents | 1 Fuel Pump Module Assembly |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Spade |
Top Mount Diameter | 108 |
Universal Or Specific Fit | Specific |
UPC | 747214044894 |
Width | 92 |
Wire Gauge Measurement | 15 or 17 |
Wire Quantity | 5 |
Year Make Model | Trim | Engine |
---|---|---|
1994-1995 Cadillac DeVille | All Trims | 8 Cyl 4.6L |
1996 Cadillac DeVille | All Trims | All Engines |
1993 Cadillac Eldorado | All Trims | 8 Cyl 4.6L |
1994-1996 Cadillac Eldorado | All Trims | All Engines |
1993 Cadillac Seville | All Trims | 8 Cyl 4.6L |
1994-1996 Cadillac Seville | All Trims | All Engines |
