Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 524-541 |

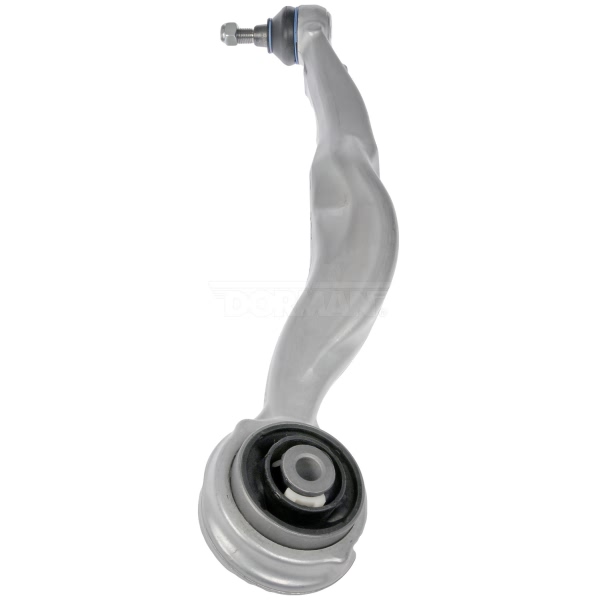

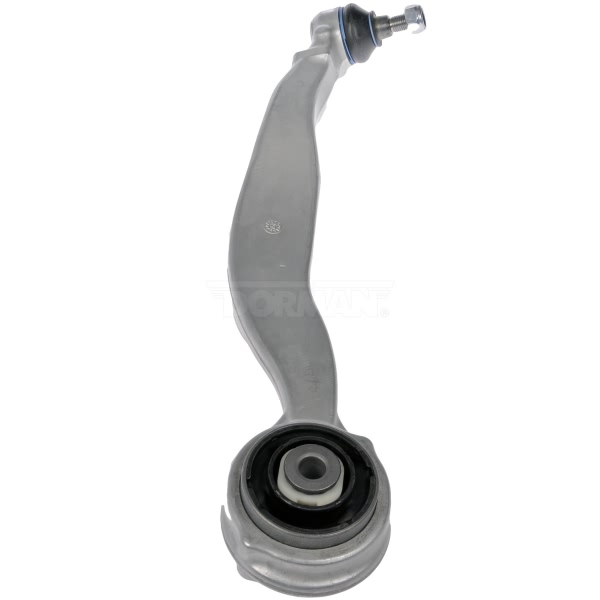

Part Description | Front Driver Side Upper Control Arm |
Adjustable | Yes |
Ball Joint Included | Yes |
Ball Joint Installed | Yes |
Ball Joint Mounting Type | Machined |
Ball Joint Stud Type | Threaded |
Ball Joint Thread Diameter | 14 |
Bushing Material | Rubber |
Bushings Included | Yes |
Control Arm Color | Black |
Control Arm Construction | Casting/Forged |
Control Arm Material | Aluminum |
Control Arm Maximum Length | 237 |
Control Arm Maximum Width | 288.5 |
Grade Type | Regular |
Grease Fitting Included | No |
Mounting Hardware Included | Yes |
Mounting Hole Diameter | 12.3 |
Mounting Hole Quantity | 1 |
UPC | 885484413375 |
OE Part Number | 212 330 31 11 |
Package Contents | Suspension Control Arm and Ball Joint Assembly |
Pre-Greased | Yes |
Suspension Grade Type | Light |
Year Make Model | Trim | Engine |
---|---|---|
2015-2017 Mercedes-Benz CLS400 | All Trims | All Engines |
2012-2018 Mercedes-Benz CLS550 | All Trims | All Engines |
2014-2016 Mercedes-Benz E250 | All Trims | All Engines |
2012-2016 Mercedes-Benz E300 | All Trims | All Engines |
2010-2016 Mercedes-Benz E350 | All Trims | All Engines |
2015-2017 Mercedes-Benz E400 | All Trims | All Engines |
2010-2016 Mercedes-Benz E550 | All Trims | All Engines |
