Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 620-197 |

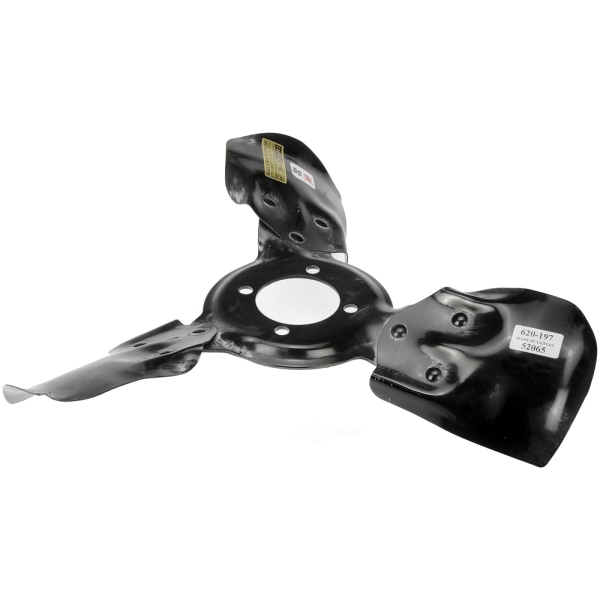

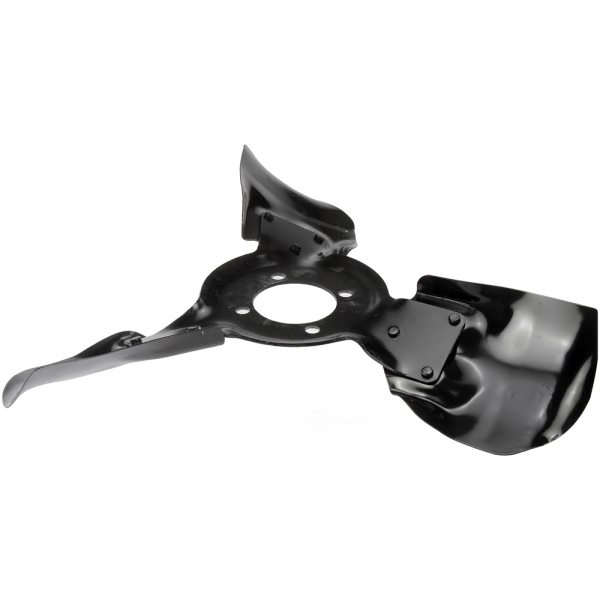

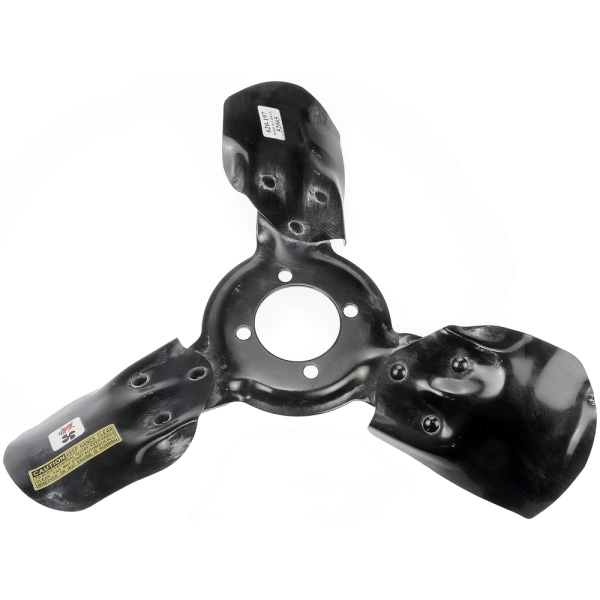

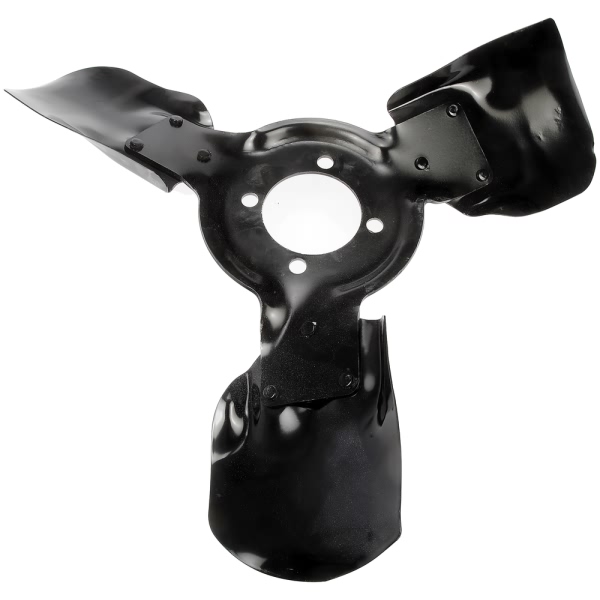

Part Description | Engine Cooling Fan Blade |
Airflow Type | Pusher |
Blade Count | 3 |
Blade Thickness | 2.5 mm |
Blade Type | Forward Align Fin |
Bolt Circle Diameter | 83 mm |
Color/Finish | Black |
Diameter | 464 mm |
Flexible Blades | No |
Hub Depth | 55 mm |
Hub Material | Steel |
Installation Hardware Included | No |
Item Grade | Standard Replacement |
Material | Steel |
Maximum RPM | 3000 RPM |
UPC | 889245532121 |
OE Part Number | 15600390 |
Package Contents | 1 Clutch Fan Assembly |
Package Quantity | 1 |
Packaging Type | Box |
Rotation | Clockwise |
Year Make Model | Trim | Engine |
---|---|---|
1987-1994 Chevrolet Astro | All Trims | 6 Cyl 4.3L |
1995-2003 Chevrolet Blazer | All Trims | 6 Cyl 4.3L |
1988-2003 Chevrolet S10 | All Trims | 6 Cyl 4.3L |
1988-1994 Chevrolet S10 Blazer | All Trims | 6 Cyl 4.3L |
1992-2001 GMC Jimmy | All Trims | 6 Cyl 4.3L |
1988-1990 GMC S15 | All Trims | 6 Cyl 4.3L |
1988-1991 GMC S15 Jimmy | All Trims | 6 Cyl 4.3L |
1987-1994 GMC Safari | All Trims | 6 Cyl 4.3L |
1991-2003 GMC Sonoma | All Trims | 6 Cyl 4.3L |
1991 GMC Syclone | All Trims | 6 Cyl 4.3L |
