Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 621-619 |

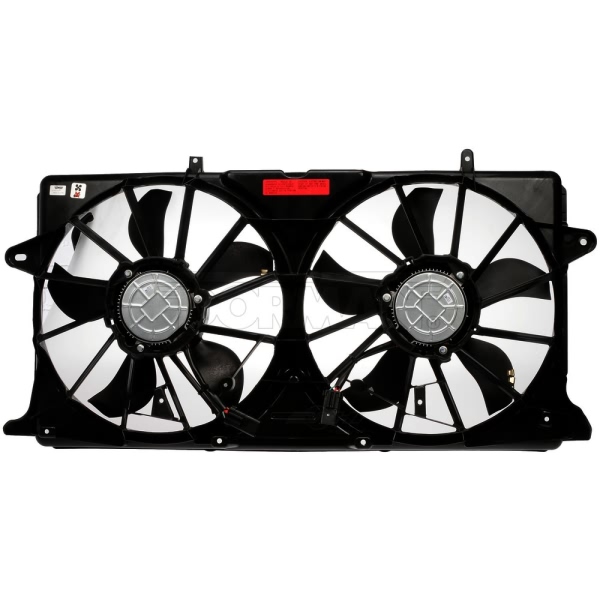

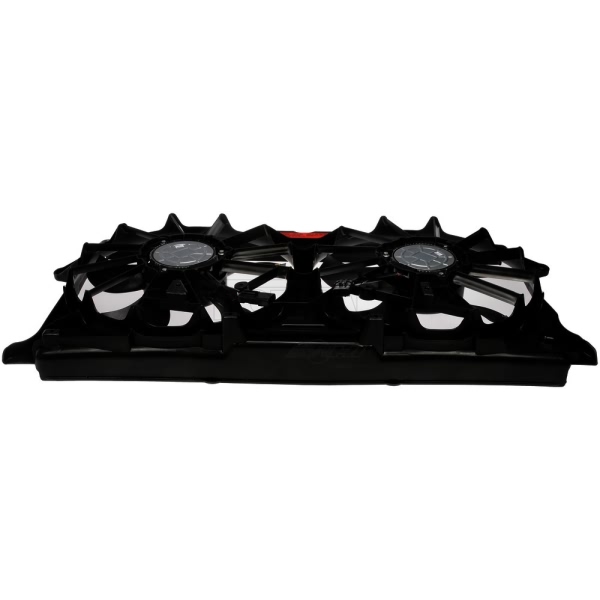

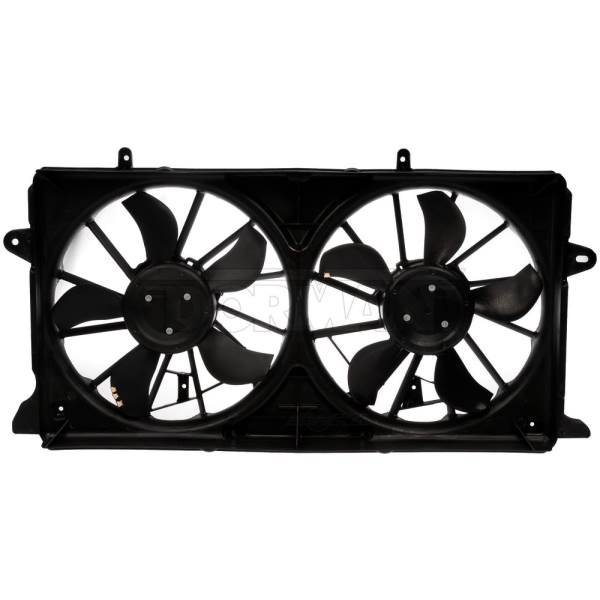

Part Description | Engine Cooling Fan Assembly |
Blade Quantity | 5; 5 |
Blade Type | Forward Align Fin |
Color/Finish | Black |

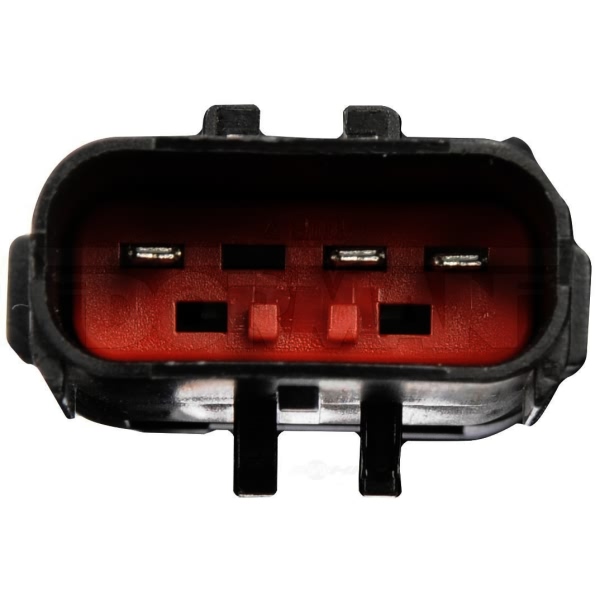

Connector Gender | Male |
Connector Quantity | 2 |
Connector Type | Male |
Diameter | 390 mm |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 5 |
Fan 1 Diameter | 390 mm |
Fan 2 Blade Quantity | 5 |
Fan 2 Diameter | 390 mm |
Fan Blade Material | Plastic |
Fan Quantity | 2 |
Fan Rotation | Counterclockwise |
Flat Side On Shaft | No |
Grade Type | Standard |
Motor Type | Brushless |
Mounting Bracket Included | Yes |
UPC | 885484612136 |
OE Part Number | 23123633, 23123634, 23123635, 23390829, 23445428 |
Package Contents | 1 Radiator Fan Assembly |
Package Quantity | 1 |
Packaging Type | Box |
Shaft Diameter | 7 mm |
Shroud Included | Yes |
Shroud Material | Plastic |
Terminal Gender | Male |
Terminal Quantity | 3; 3 |
Voltage | 13.6v |
Year Make Model | Trim | Engine |
---|---|---|
2015-2020 Cadillac Escalade | All Trims | 8 Cyl 6.2L |
2015-2020 Cadillac Escalade ESV | All Trims | 8 Cyl 6.2L |
2014-2015 Chevrolet Cheyenne | All Trims | All Engines |
2014-2019 Chevrolet Cheyenne | All Trims | 8 Cyl 5.3L |
2014-2019 Chevrolet Cheyenne | All Trims | 8 Cyl 6.2L |
2014-2018 Chevrolet Silverado 1500 | All Trims | 6 Cyl 4.3L |
2014-2018 Chevrolet Silverado 1500 | All Trims | 8 Cyl 5.3L |
2014-2018 Chevrolet Silverado 1500 | All Trims | 8 Cyl 6.2L |
2019 Chevrolet Silverado 1500 LD | All Trims | 8 Cyl 5.3L |
2015-2017 Chevrolet Silverado 2500 | All Trims | 8 Cyl 5.3L |
