Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 621-569 |

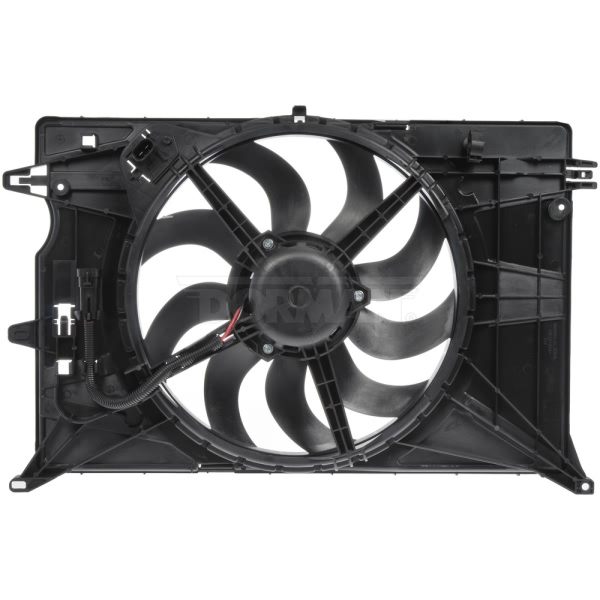

Part Description | Engine Cooling Fan Assembly |
Blade Quantity | 1 |
Blade Type | Forward Align Fin |
Color/Finish | Black |

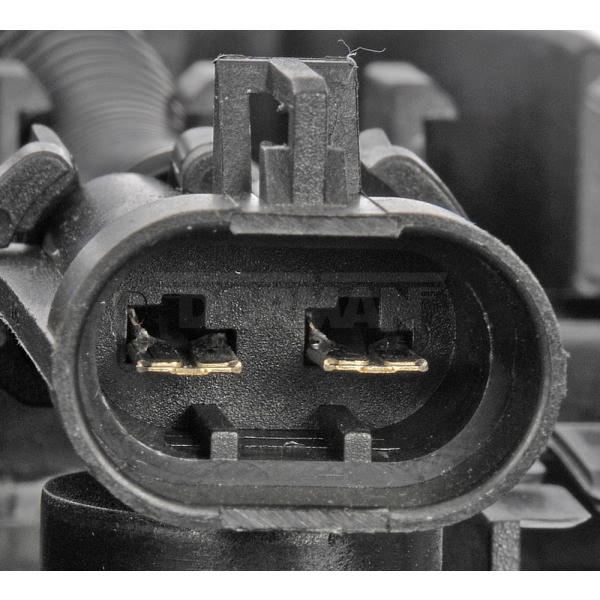

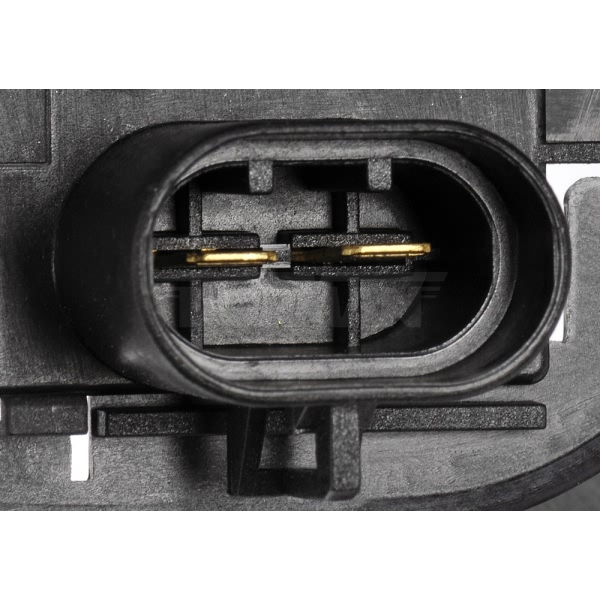

Connector Gender | Male |
Connector Quantity | 1 |
Connector Type | Male |
Diameter | 370 mm |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 9 |
Fan 1 Diameter | 370 mm |
Fan 2 Blade Quantity | 0 |
Fan Blade Material | Plastic |
Fan Quantity | 1 |
Fan Rotation | Counterclockwise |
Flat Side On Shaft | No |
Grade Type | Standard |
Motor Type | Brushed |
Mounting Bracket Included | No |
UPC | 885484646544 |
OE Part Number | 68248150AA, 68256125AA |
Package Contents | Radiator Fan Assembly |
Package Quantity | 1 |
Packaging Type | Box |
Shaft Diameter | 5 mm |
Shroud Included | Yes |
Shroud Material | Plastic |
Terminal Gender | Male |
Terminal Quantity | 2 |
Voltage | 13.6 V |
Year Make Model | Trim | Engine |
---|---|---|
2016-2018 Fiat 500X | All Trims | 4 Cyl 1.4L |
2015-2018 Jeep Renegade | All Trims | 4 Cyl 1.4L |
