Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 621-563 |

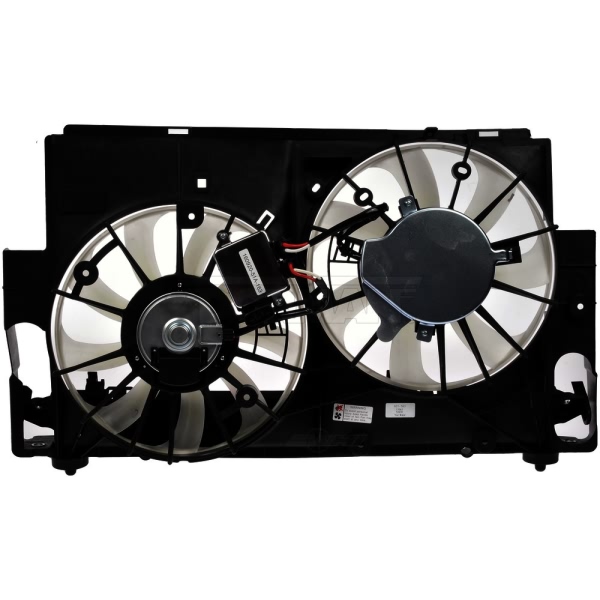

Part Description | Engine Cooling Fan Assembly |
Blade Quantity | 2 |
Blade Type | Forward Align Fin |
Color/Finish | Black |

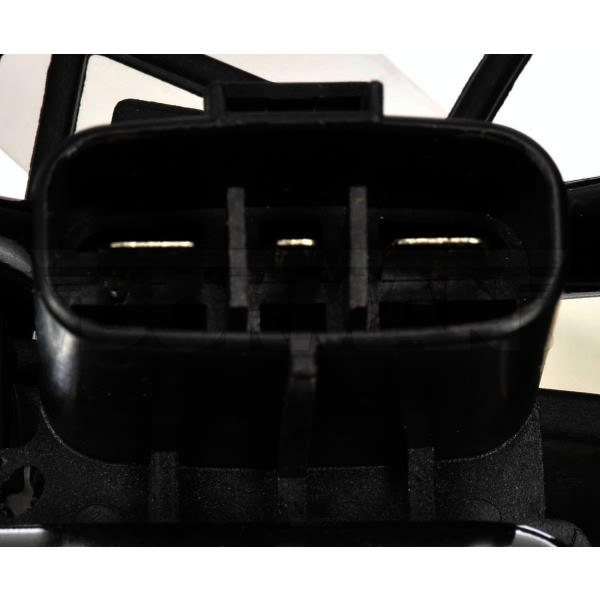

Connector Gender | Male |
Connector Quantity | 1 |
Connector Type | Male |
Diameter | 340 mm |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 9 |
Fan 1 Diameter | 340 mm |
Fan 2 Blade Quantity | 7 |
Fan 2 Diameter | 340 mm |
Fan Blade Material | Plastic |
Fan Quantity | 2 |
Fan Rotation | Counterclockwise/Clockwise |
Flat Side On Shaft | No |
Grade Type | Standard |
Motor Type | Brushed |
Mounting Bracket Included | No |
UPC | 885484853393 |
OE Part Number | 16361-36150, 16363-36190, 16711-36180, 16361-36140, 16363-36180 |
Package Contents | Radiator Fan Assembly |
Package Quantity | 1 |
Packaging Type | Box |
Shaft Diameter | 5.25 mm |
Shroud Included | Yes |
Shroud Material | Plastic |
Terminal Gender | Male |
Terminal Quantity | 3 |
Voltage | 13.6 V |
Year Make Model | Trim | Engine |
---|---|---|
2015-2020 Lexus NX300h | All Trims | 4 Cyl 2.5L |
2016-2018 Toyota RAV4 | All Trims | 4 Cyl 2.5L |
