Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 621-557 |

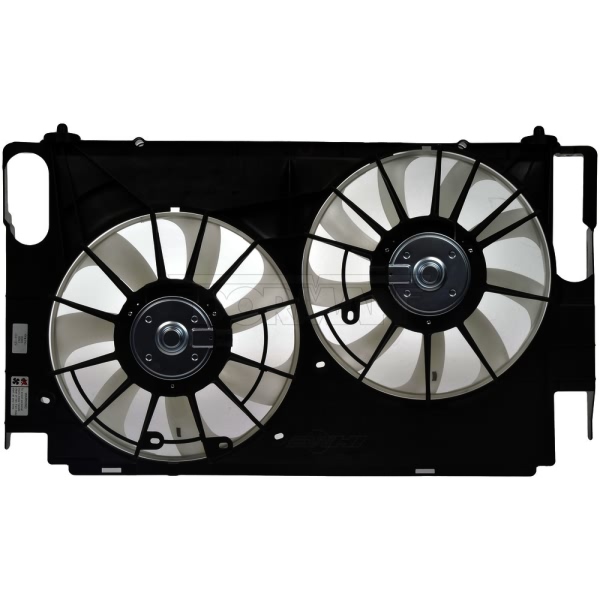

Part Description | Engine Cooling Fan Assembly |
Blade Quantity | 2 |
Blade Type | Forward Align Fin |
Color/Finish | Black and White |

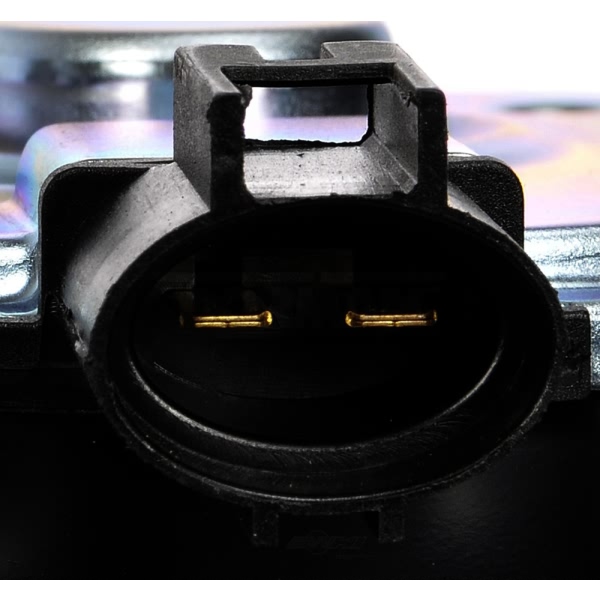

Connector Gender | Male |
Connector Quantity | 2 |
Connector Type | Male |
Diameter | 330 mm |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 7 |
Fan 1 Diameter | 330 mm |
Fan 2 Blade Quantity | 9 |
Fan 2 Diameter | 330 mm |
Fan Blade Material | Plastic |
Fan Quantity | 2 |
Fan Rotation | Counterclockwise/Clockwise |
Flat Side On Shaft | No |
Grade Type | Standard |
Motor Type | Brushed |
Mounting Bracket Included | No |
UPC | 885484842267 |
OE Part Number | 1636336100, 1636336110, 167110V210, 163610V330, 163610V340 |
Package Contents | Radiator Fan Assembly |
Package Quantity | 1 |
Packaging Type | Box |
Shaft Diameter | 4.5 mm |
Shroud Included | Yes |
Shroud Material | Plastic |
Terminal Gender | Male |
Terminal Quantity | 2 |
Voltage | 13.6 V |
Year Make Model | Trim | Engine |
---|---|---|
2013-2019 Toyota RAV4 | All Trims | 4 Cyl 2.5L |
