Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 620-814 |

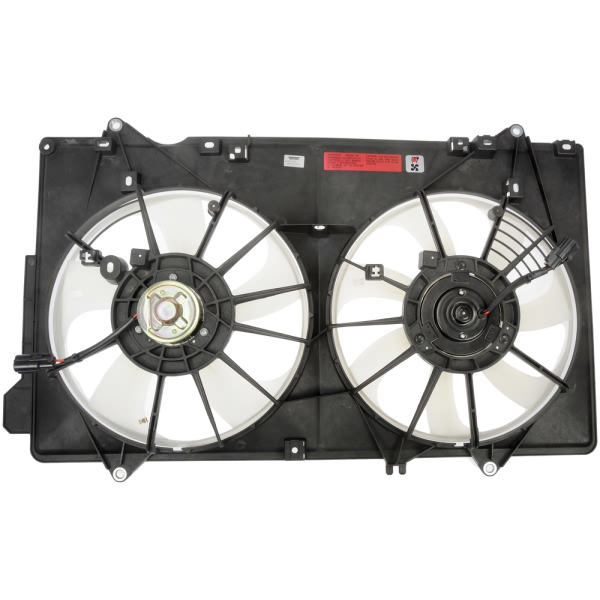

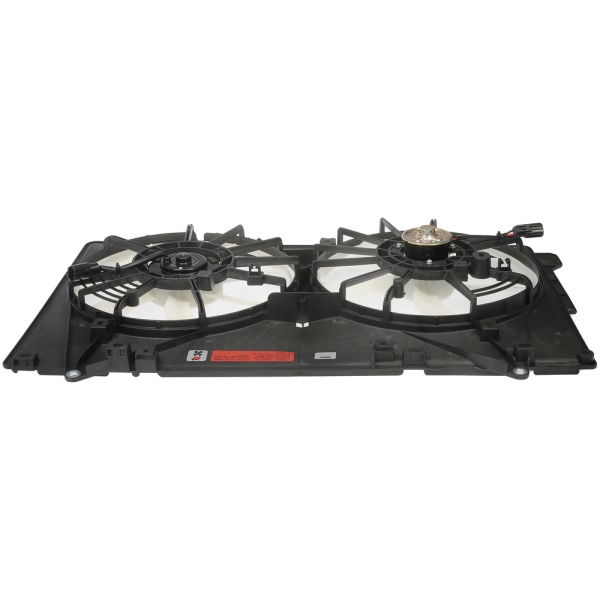

Part Description | Engine Cooling Fan Assembly |
Blade Quantity | 5; 7 |
Blade Type | Forward Align Fin |
Color/Finish | Black |

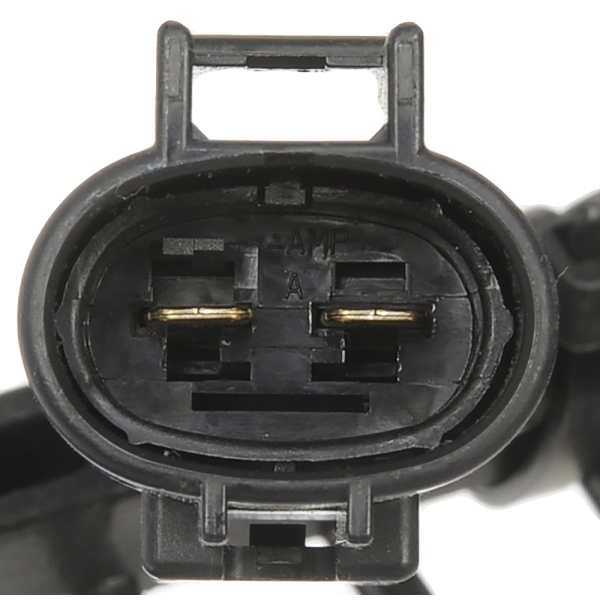

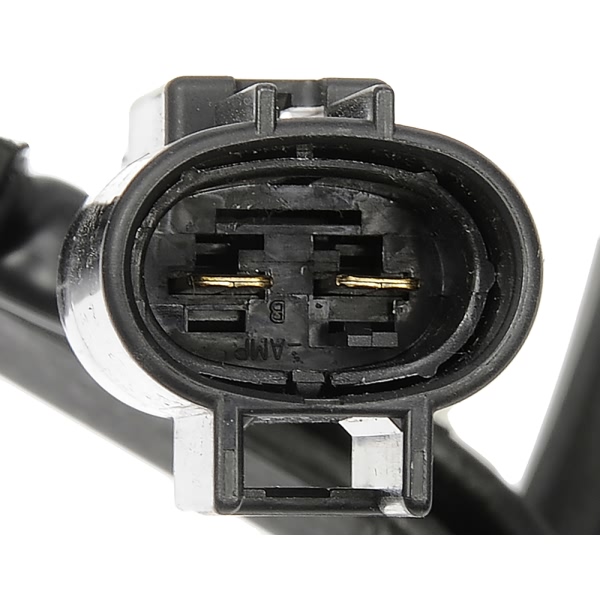

Connector Gender | Male |
Connector Quantity | 2 |
Connector Type | Male |
Diameter | 330 mm; 330 mm |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 5 |
Fan 1 Diameter | 330 mm |
Fan 2 Blade Quantity | 7 |
Fan 2 Diameter | 330 mm |
Fan Blade Material | Plastic |
Fan Quantity | 2 |
Fan Rotation | Counterclockwise |
Flat Side On Shaft | Yes |
Grade Type | Standard |
Motor Type | Brushed |
Mounting Bracket Included | No |
UPC | 037495162630 |
OE Part Number | PE0115150, PE0115210, PE0215140, PE0215150, PE011540 |
Package Contents | Radiator Fan Assembly |
Package Quantity | 1 |
Packaging Type | Box |
Shaft Diameter | 5 mm |
Shroud Included | Yes |
Shroud Material | Plastic |
Terminal Gender | Male |
Terminal Quantity | 2; 2 |
Voltage | 12 V |
Year Make Model | Trim | Engine |
---|---|---|
2013-2016 Mazda CX-5 | All Trims | 4 Cyl 2.0L |
2014-2016 Mazda CX-5 | All Trims | 4 Cyl 2.5L |
