Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 902-6117 |

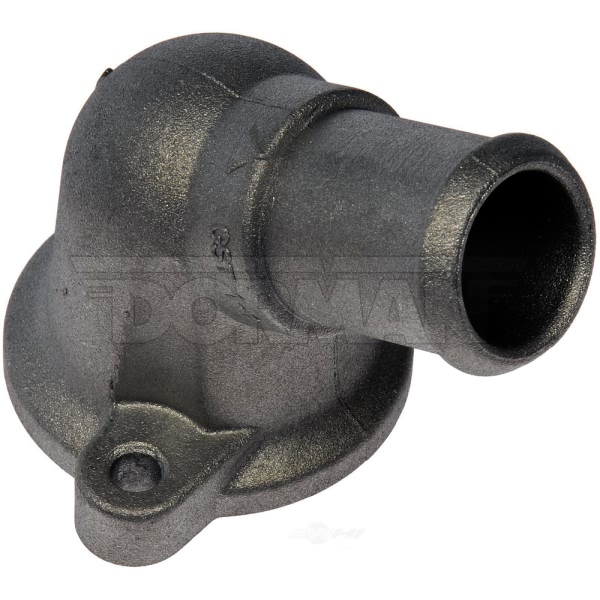

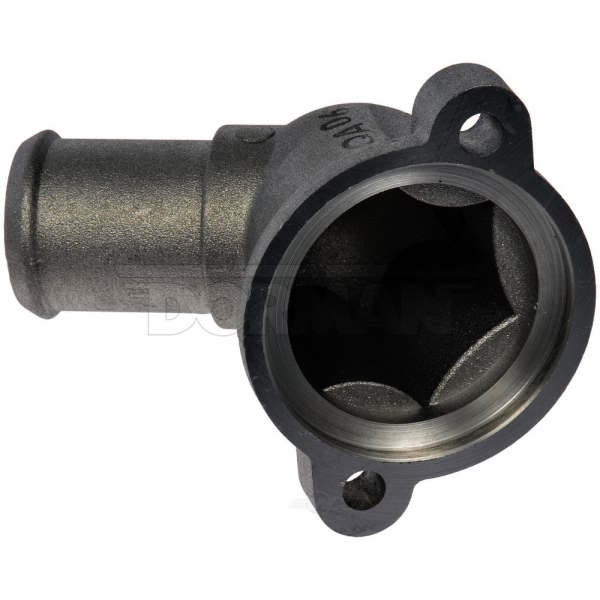

Part Description | Engine Coolant Thermostat Housing |
Air Vent (Bleeder Valve) | No |
Bolt Hole Center To Bolt Hole Center | 2.375" |
Bolt Hole Diameter | 0.25" |
Bolt Hole Quantity | 2 |
Bolts Included | No |
Color/Finish | Natural |
Flange Thickness | 0.8" |
Gasket or Seal Included | No |
Height | 2.875" |
Housing Neck Angle (°) | 45 Degree |
Inlet Port Diameter | 2" |
Material | Metal |
Mount Hole Diameter | 0.25" |
Mount Hole Quantity | 2 |
O Rings Included | Not Required |
UPC | 885484491076 |
OE Part Number | 96317980 |
Outlet Diameter | 1.25" |
Thermostat Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2011-2015 Chevrolet Matiz | All Trims | 4 Cyl 1.0L |
2012-2015 Chevrolet Spark | All Trims | All Engines |
2004-2010 Pontiac Matiz | All Trims | 4 Cyl 1.0L |
