Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Denso |
Part Number | 5313 |

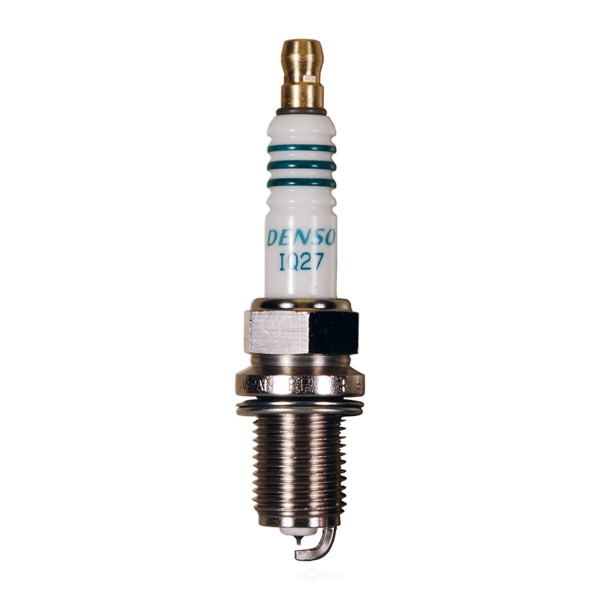

Part Description | Iridium Power™ Spark Plug |
Center Electrode Design | Fine Wire |
Center Electrode Tip Material | 0.4mm Iridium or Iridium Rhodium Alloy |
Drive Size | 5/8 in |
Gap - Factory Preset | 0.8 mm = 0.032 in |
Ground Configuration | Standard |
Ground Electrode Configuration | Single |
Ground Electrode Core Material | Nickel |
Ground Electrode Design | U-Grooved |
Ground Electrode Quantity | 1 |
Ground Electrode Tip Design | Tapercut, U-Groove |
Ground Electrode Tip Material | Taper Cut Nickel Alloy |
Hex Size | 16.0 |
Insulator Material | Ceramic |
Insulator Type | Non-Projected |
Internet Product Code (IPC) | 51BFC19F063 |
Item has MSDS (SDS) | N |
Manufacturer Heat Range | 22 |
Manufacturer Heat Range Number | 22 |
MFG Brand Name | DENSO Auto Parts |
MFG Model # (Series) | 5313 |
MFG Name | DENSO |
Pre-Gap Size | 0.032 |
Reach | 19.00 |
Resistance | 5000 |
Resistor | Yes |
Seat Style | Gasket |
Seat Type | Flat |
Short Style | No |
Supplier Company Name | DENSO |
Thread Diameter | 0.551 |
Thread Size | 14mm |
UPC | 042511053137 |
Year Make Model | Trim | Engine |
---|---|---|
1989-1990 Porsche 911 | All Trims | 6 Cyl 3.6L |
1991-1993 Porsche 911 | Carrera 2 | 6 Cyl 3.6L |
1991-1993 Porsche 911 | Carrera 4 | 6 Cyl 3.6L |
1992-1993 Porsche 911 | RS America | 6 Cyl 3.6L |
1999-2000 Saab 9-3 | All Trims | 4 Cyl 2.3L |
1999-2002 Saab 9-3 | All Trims | 4 Cyl 2.0L |
2002 Saab 9-3 | All Trims | 4 Cyl 2.3L |
1999-2000 Saab 9-5 | All Trims | 4 Cyl 2.3L |
1999-2003 Saab 9-5 | All Trims | 6 Cyl 3.0L |
1985-1998 Saab 900 | All Trims | 4 Cyl 2.0L |
