Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Denso |
Part Number | 3436 |

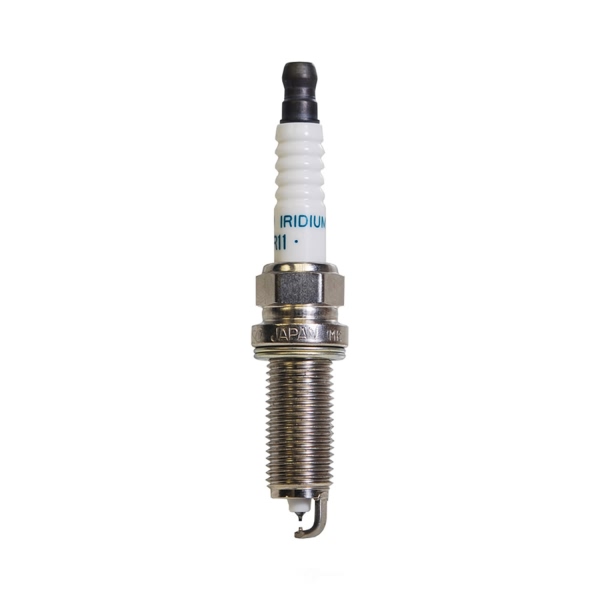

Part Description | Iridium Long-Life Spark Plug |
Center Electrode Core Material | Copper |
Center Electrode Design | Fine Wire |
Center Electrode Tip Material | 0.55mm Iridium or Iridium-Rhodium Alloy |
Drive Size | 5/8 in |
Gap - Factory Preset | 1.1 mm = 0.044 in |
Ground Configuration | Needle-to-Needle |
Ground Electrode Configuration | Single |
Ground Electrode Core Material | Nickel |
Ground Electrode Design | Needle to Needle |
Ground Electrode Quantity | 1 |
Ground Electrode Tip Design | Platinum Needle |
Ground Electrode Tip Material | 0.7mm Platinum |
Hex Size | 14.3 |
Insulator Material | Ceramic |
Insulator Type | Non-Projected |
Internet Product Code (IPC) | 69AC6EA2234 |
Item has MSDS (SDS) | N |
Manufacturer Heat Range | 20 |
Manufacturer Heat Range Number | 20 |
MFG Brand Name | DENSO Auto Parts |
MFG Model # (Series) | 3436 |
MFG Name | DENSO |
Pre-Gap Size | 0.044 |
Reach | 28.50 |
Resistance | 5000 |
Resistor | Yes |
Seat Style | Gasket |
Seat Type | Flat |
Short Style | No |
Supplier Company Name | DENSO |
Thread Diameter | 0.472 |
Thread Size | 12mm |
UPC | 042511034365 |
Year Make Model | Trim | Engine |
---|---|---|
2009 Nissan Versa | All Trims | 4 Cyl 1.6L |
2011 Nissan Versa | All Trims | 4 Cyl 1.6L |
