Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Denso |
Part Number | 3422 |

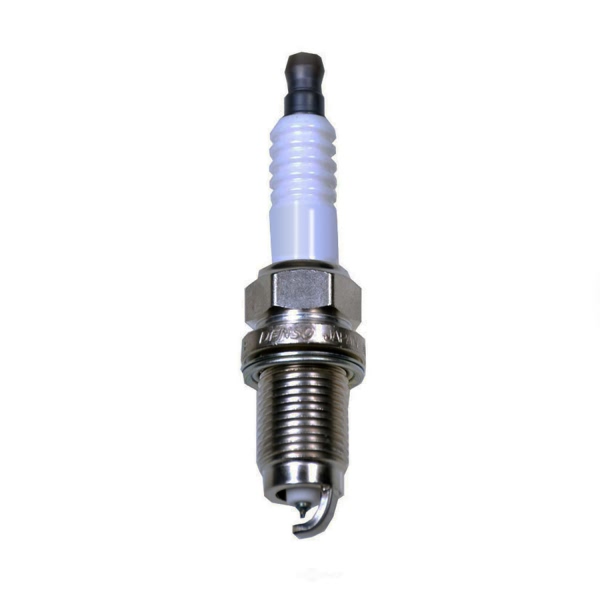

Part Description | Iridium Long-Life Spark Plug |
Center Electrode Core Material | Copper |
Center Electrode Design | Fine Wire |
Center Electrode Tip Material | 0.7mm Iridium or Iridium-Rhodium Alloy |
Drive Size | 13/16 in |
Gap - Factory Preset | 1.1 mm = 0.044 in |
Ground Configuration | Thick Electrode |
Ground Electrode Configuration | Single |
Ground Electrode Core Material | Nickel |
Ground Electrode Quantity | 1 |
Ground Electrode Tip Design | Platinum Chip |
Ground Electrode Tip Material | Platinum |
Hex Size | 16.0 |
Insulator Material | Ceramic |
Insulator Type | Projected |
Internet Product Code (IPC) | 57C5006B65E |
Item has MSDS (SDS) | N |
Manufacturer Heat Range | 16 |
Manufacturer Heat Range Number | 16 |
MFG Brand Name | DENSO Auto Parts |
MFG Model # (Series) | 3422 |
MFG Name | DENSO |
Pre-Gap Size | 0.044 |
Reach | 19.00 |
Resistance | 5000 |
Resistor | Yes |
Seat Style | Gasket |
Seat Type | Flat |
Short Style | No |
Supplier Company Name | DENSO |
Thread Diameter | 0.551 |
Thread Size | 14mm |
UPC | 042511034228 |
Year Make Model | Trim | Engine |
---|---|---|
2003-2006 Acura MDX | All Trims | 6 Cyl 3.5L |
2005-2010 Honda Odyssey | All Trims | 6 Cyl 3.5L |
2005-2008 Honda Pilot | All Trims | 6 Cyl 3.5L |
2006-2008 Honda Ridgeline | All Trims | 6 Cyl 3.5L |
2004-2007 Saturn Vue | All Trims | 6 Cyl 3.5L |
