Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Denso |
Part Number | 3128 |

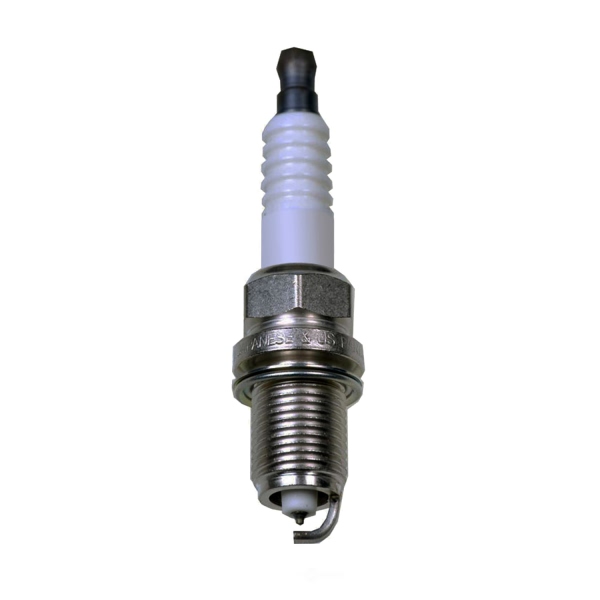

Part Description | Double Platinum Spark Plug |
Center Electrode Core Material | Copper |
Center Electrode Design | Fine Wire |
Center Electrode Tip Material | 1.1mm Platinum or Platinum |
Drive Size | 5/8 in |
Gap - Factory Preset | 1.1 mm = 0.044 in |
Ground Configuration | Standard |
Ground Electrode Configuration | Single |
Ground Electrode Core Material | Nickel |
Ground Electrode Quantity | 1 |
Ground Electrode Tip Design | Platinum Chip |
Ground Electrode Tip Material | Platinum |
Hex Size | 16.0 |
Insulator Material | Ceramic |
Insulator Type | Non-Projected |
Internet Product Code (IPC) | 66D3561ABF3 |
Item has MSDS (SDS) | N |
Manufacturer Heat Range | 20 |
Manufacturer Heat Range Number | 20 |
MFG Brand Name | DENSO Auto Parts |
MFG Model # (Series) | 3128 |
MFG Name | DENSO |
Pre-Gap Size | 0.044 |
Reach | 19.00 |
Resistance | 5000 |
Resistor | Yes |
Seat Style | Gasket |
Seat Type | Flat |
Short Style | No |
Supplier Company Name | DENSO |
Thread Diameter | 0.551 |
Thread Size | 14mm |
UPC | 042511031289 |
Year Make Model | Trim | Engine |
---|---|---|
2006 Chrysler Crossfire | All Trims | 6 Cyl 3.2L |
1994-1995 Lexus ES300 | All Trims | 6 Cyl 3.0L |
2002-2003 Lexus ES300 | All Trims | 6 Cyl 3.0L |
2004-2006 Lexus ES330 | All Trims | 6 Cyl 3.3L |
1998-2000 Lexus GS400 | All Trims | 8 Cyl 4.0L |
2001-2007 Lexus GS430 | All Trims | 8 Cyl 4.3L |
2003-2009 Lexus GX470 | All Trims | 8 Cyl 4.7L |
2010-2012 Lexus HS250h | All Trims | 4 Cyl 2.4L |
1990-1994 Lexus LS400 | All Trims | 8 Cyl 4.0L |
1997-2000 Lexus LS400 | All Trims | 8 Cyl 4.0L |
