Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | TA2553 |

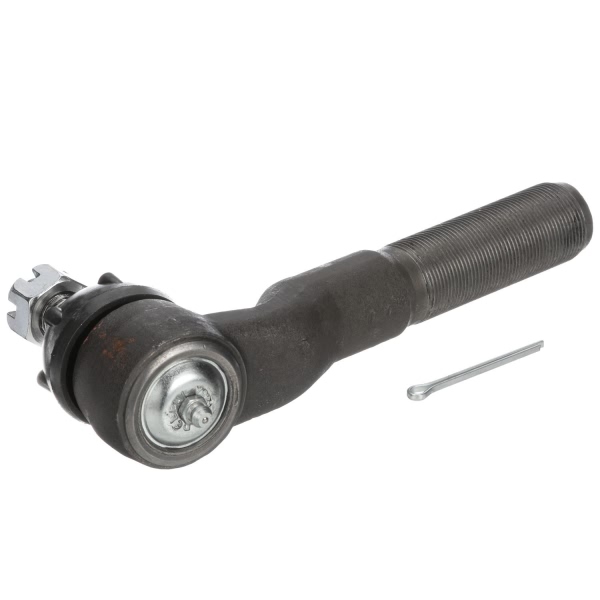

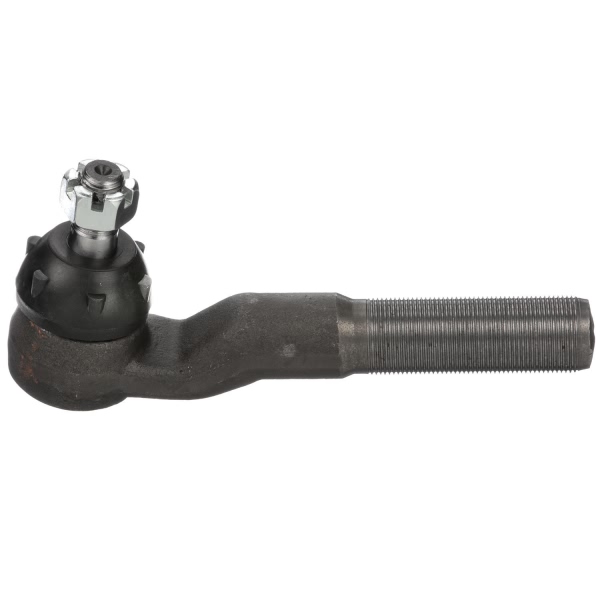

Part Description | Passenger Side Outer Steering Tie Rod End |
Adjustable | No |
Bearing Material | Plastic |
Color | Grey |
Dust Boot Included | Yes |
Dust Boot Material | CR |
End 1 Gender | Male |
End 1 Thread Diameter | 22.00 |
End 1 Thread Direction | Clockwise |
End 1 Thread Pitch | 1.5 |
End 2 Gender | Male |
End 2 Thread Diameter | 14.00 |
End 2 Thread Direction | Clockwise |
End 2 Thread Pitch | 1.5 |
Finish | Chrome Plating |
Grade | Standard |
Greasable | Yes |
Grease Fitting Included | Yes |
Height | 97.00 |
Housing Material | Steel |
Item Grade | Standard Replacement |
Length | 185.00 |
Length Stud Center to End | 163.00 |
Mounting Hardware Included | Yes |
Pre-Greased | Yes |
Stud Type | Threaded |
Tie Rod Material | Steel |
UPC | 689604275054 |
Weight | 2.171531 |
Width | 45.00 |
Year Make Model | Trim | Engine |
---|---|---|
1991 Ford Explorer | All Trims | All Engines |
1992-1994 Mazda Navajo | All Trims | All Engines |
