Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG2150 |

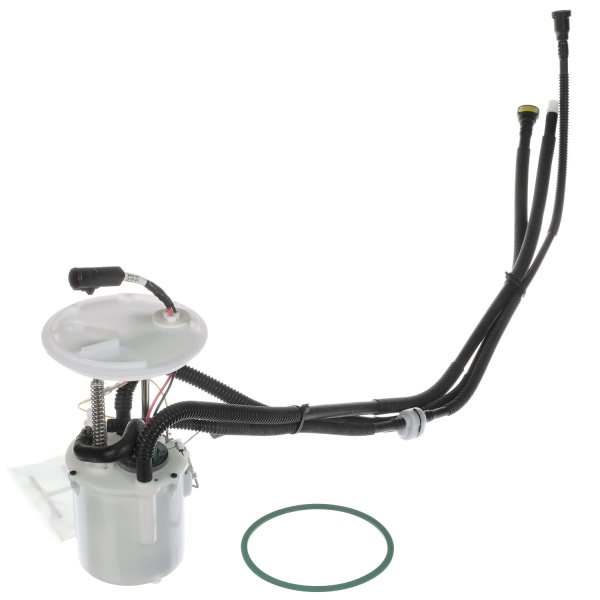

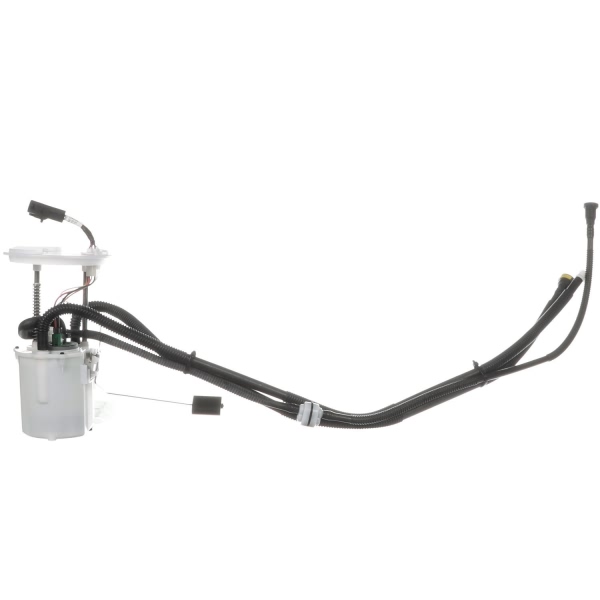

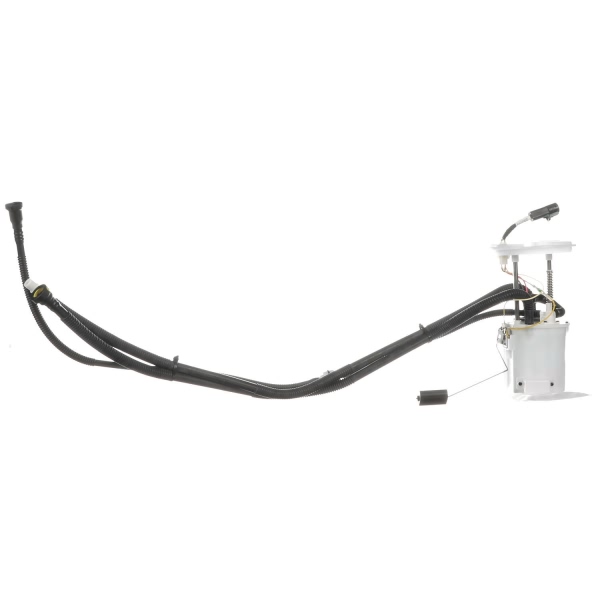

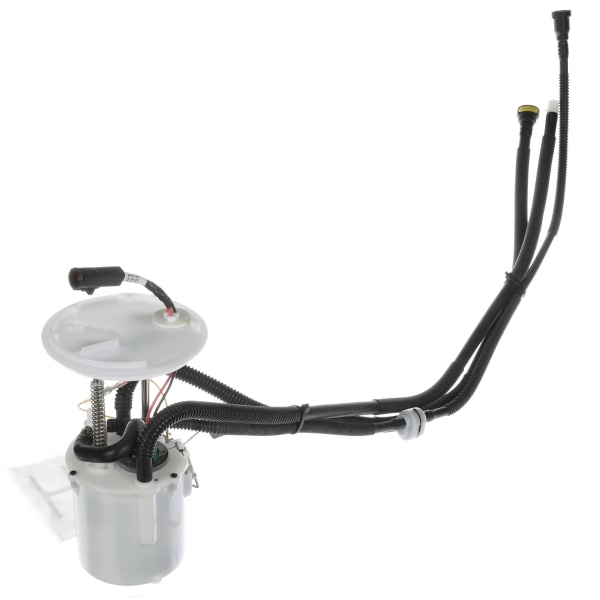

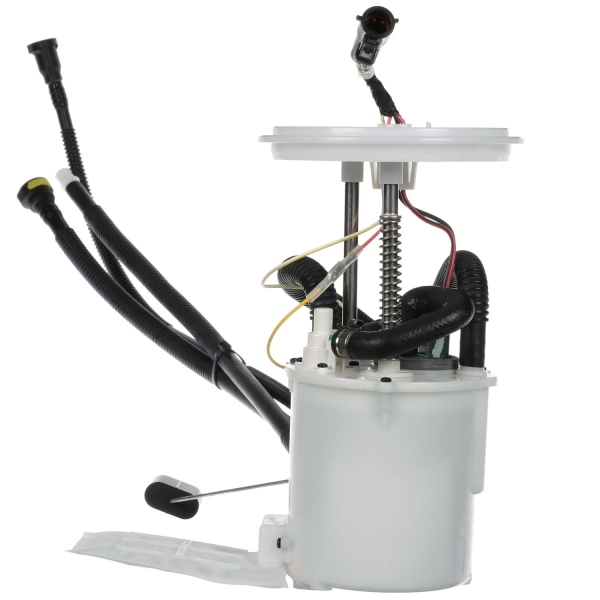

Part Description | Passenger Side Fuel Pump Module Assembly |

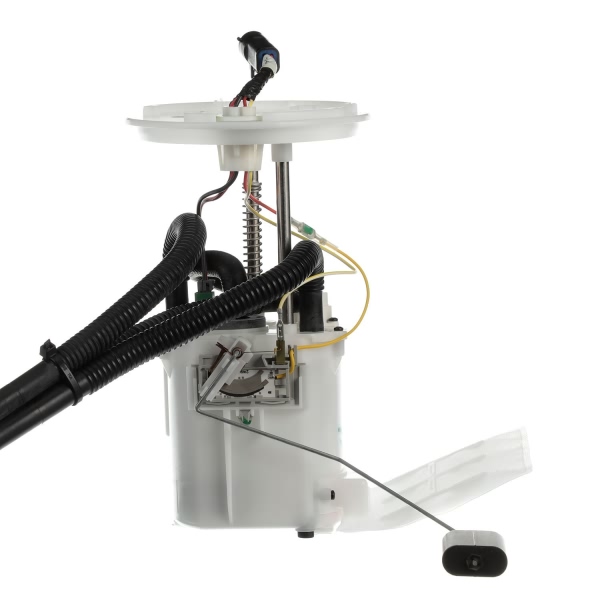

Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |

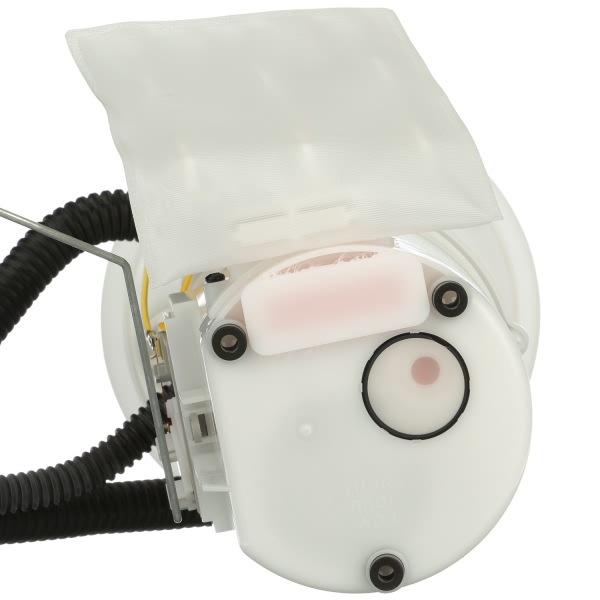

Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Lock Ring Included | No |
Maximum Pressure | 75.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 3 |
Outlet Type | Female Quick Connect |
Package Contents | Fuel Pump Module Assembly withFloat Arm, Seal, Instruction Sheet |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 160.0 |
Resistance Ohms Full | 15.0 |
Strainer Included | Yes |
System Pressure | 43 psi |

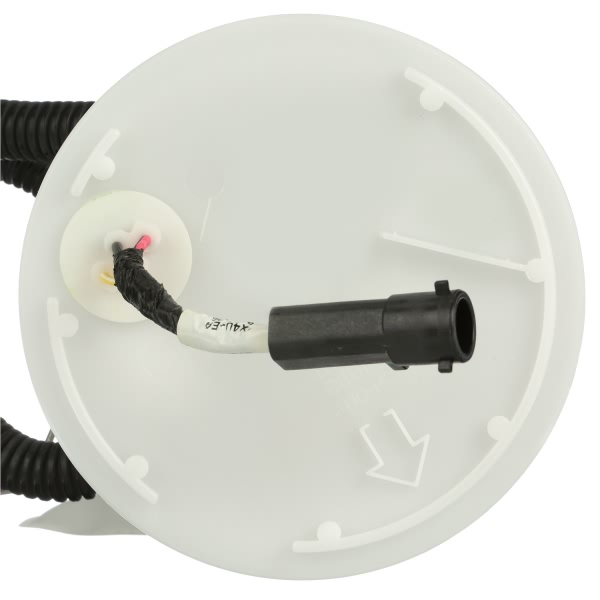

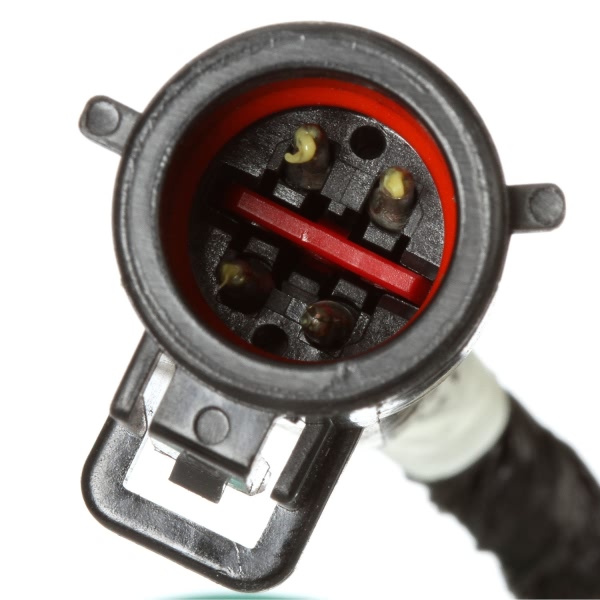

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604291207 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2003-2005 Jaguar S-Type | R | 8 Cyl 4.2L |
