Check if it fits by entering your vehicle infoBrand | Delphi |

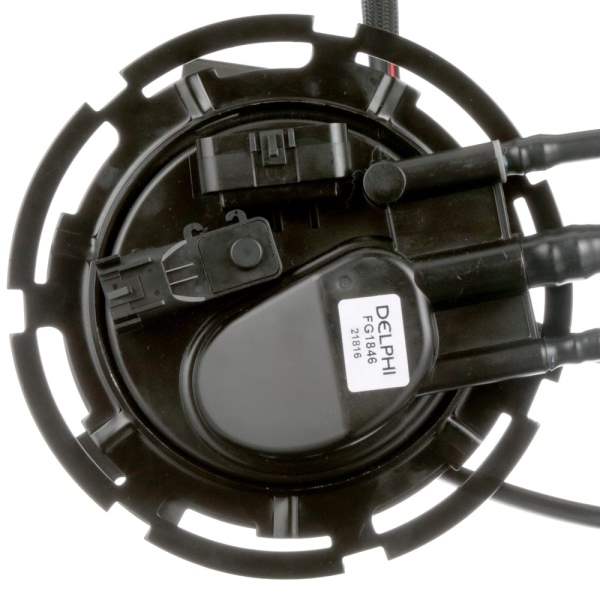

Part Number | FG1846 |

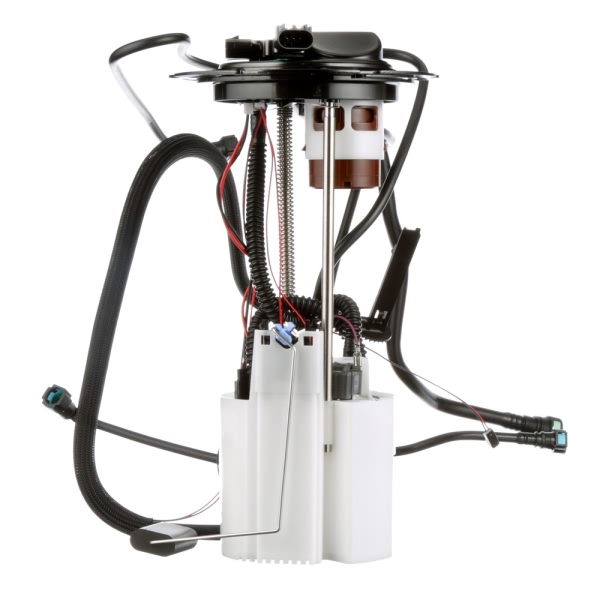

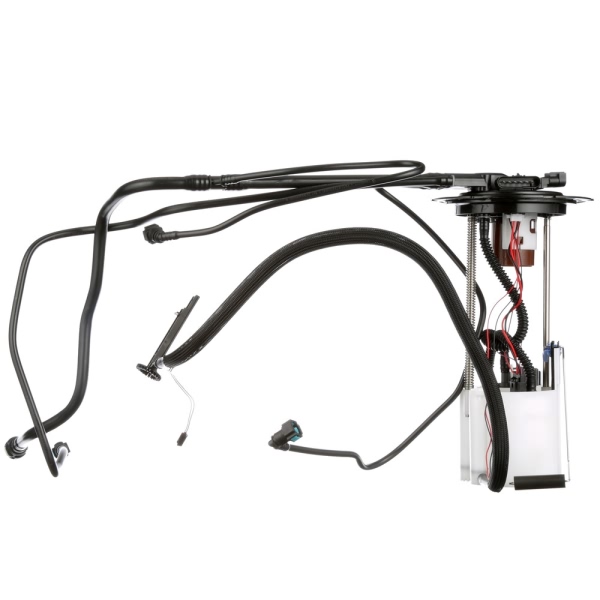

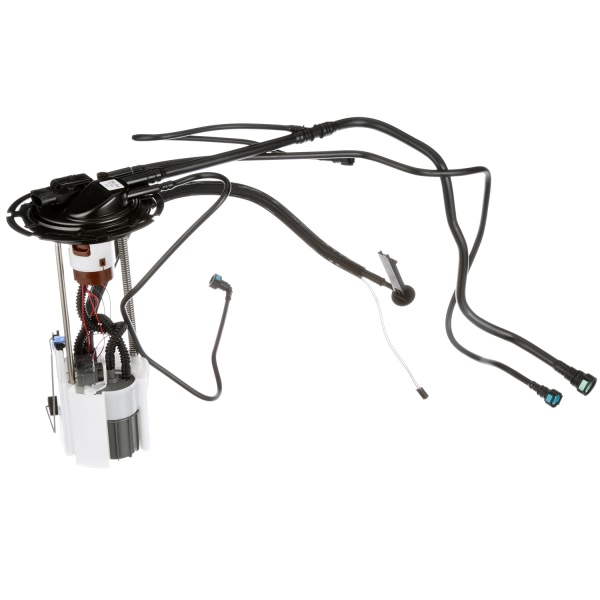

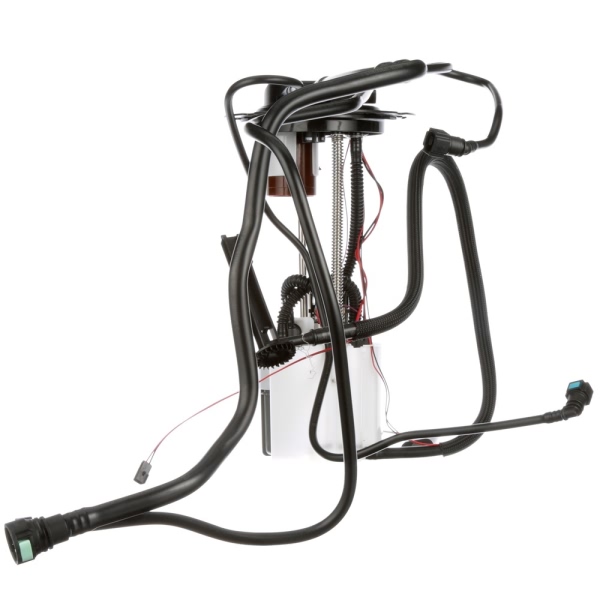

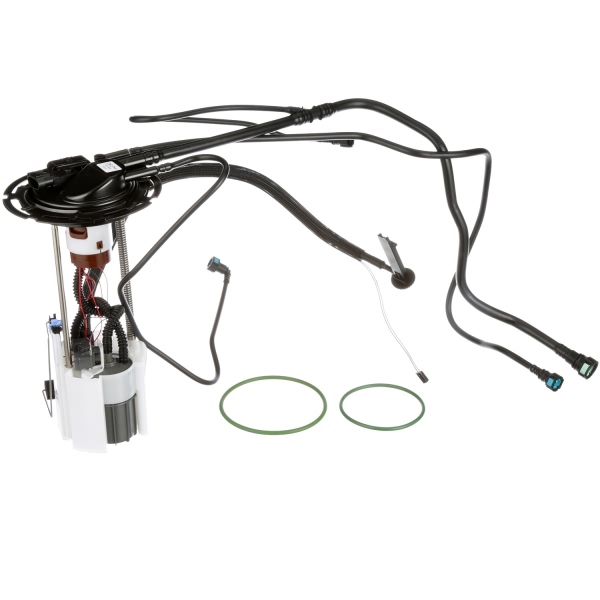

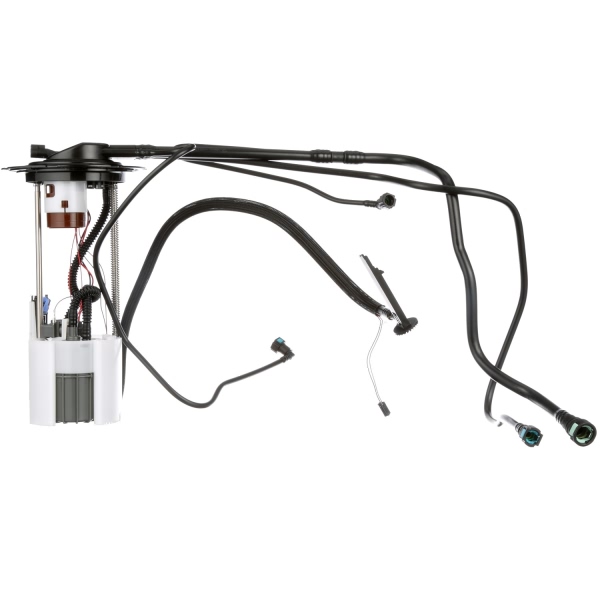

Part Description | Passenger Side Fuel Pump Module Assembly |
Current Draw | 9 |
Flow Rating | 18 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |

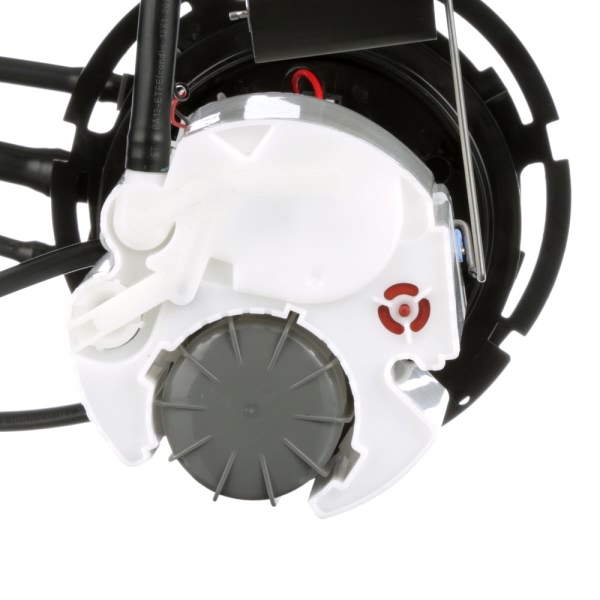

Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 94.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 3 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 125.0 |
Resistance Ohms Full | 20.0 |
Strainer Included | Yes |
System Pressure | 58 psi |
Terminal Gender | Male |

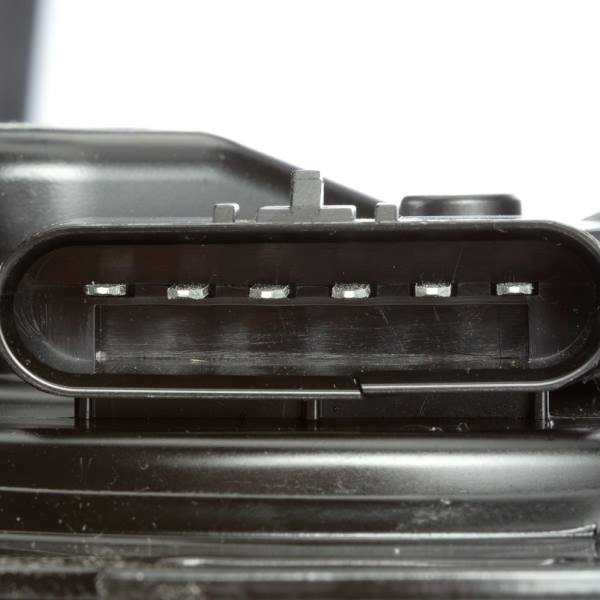

Terminal Quantity | 6 |
Terminal Type | Pin |
UPC | 689604267875 |
Vapor Pressure Sensor | Yes |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2008-2009 Chevrolet Equinox | All Trims | 6 Cyl 3.4L |
2008-2009 Chevrolet Equinox | All Trims | 6 Cyl 3.6L |
2008-2009 Pontiac Torrent | All Trims | 6 Cyl 3.4L |
2008-2009 Pontiac Torrent | All Trims | 6 Cyl 3.6L |
