Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1754 |

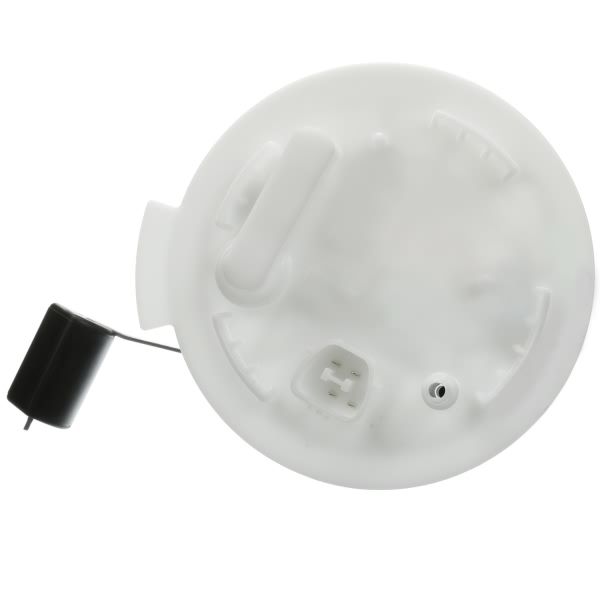

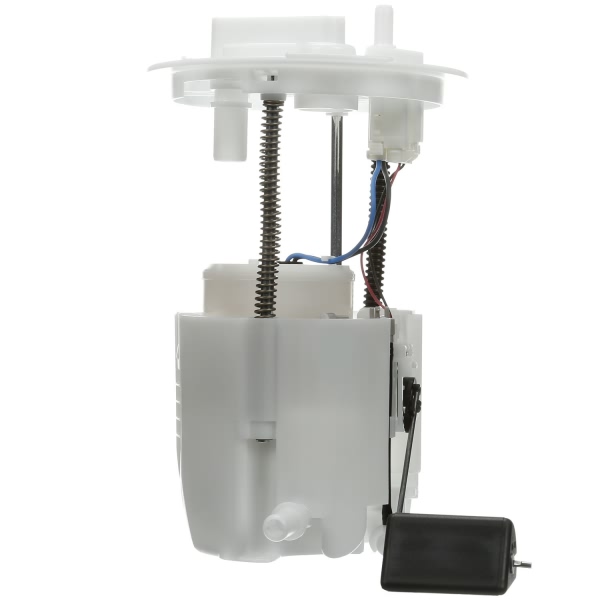

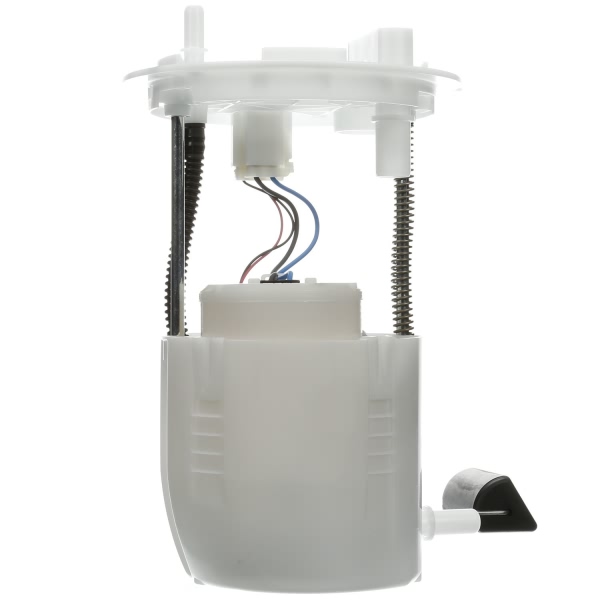

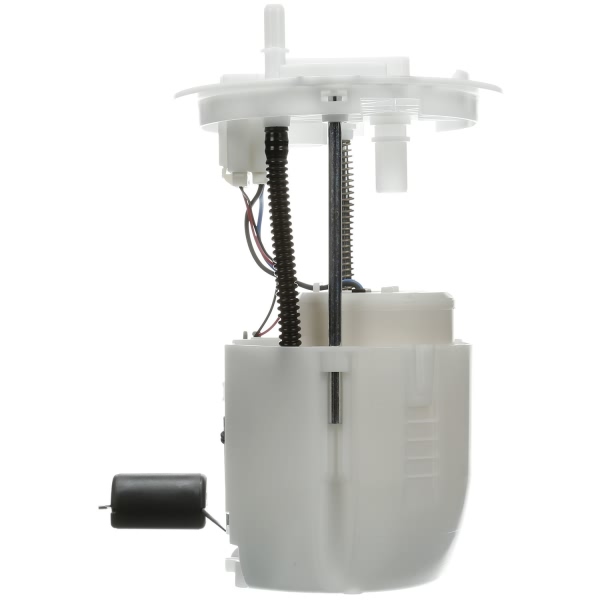

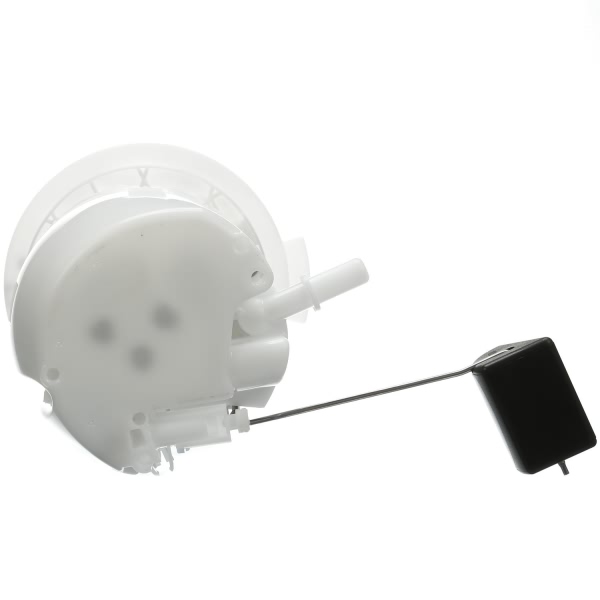

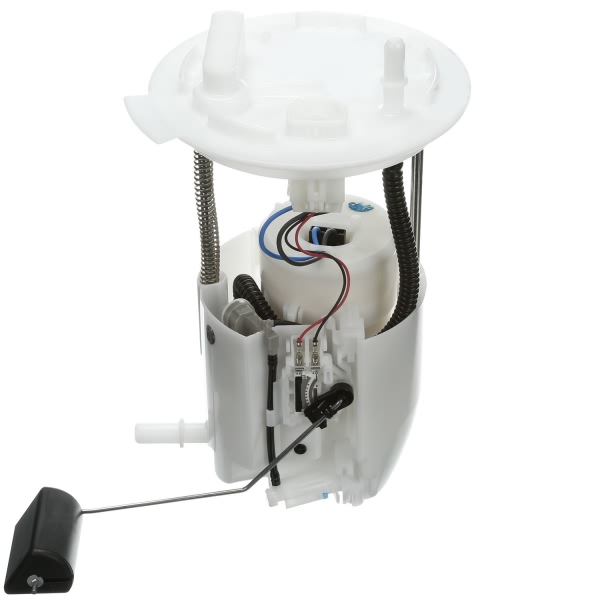

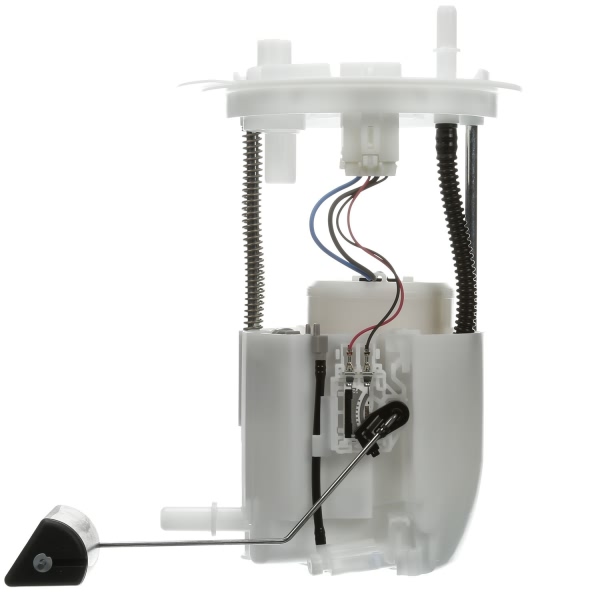

Part Description | Passenger Side Fuel Pump Module Assembly |
Current Draw | 10 |
Flow Rating | 45 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Lock Ring Included | No |
Maximum Pressure | 138.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 1 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 180.0 |
Resistance Ohms Full | 10.0 |
Strainer Included | Yes |
System Pressure | 65 psi |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604241837 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2010-2012 Ford Flex | All Trims | 6 Cyl 3.5L |
2010-2012 Lincoln MKT | All Trims | 6 Cyl 3.7L |
