Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1625 |

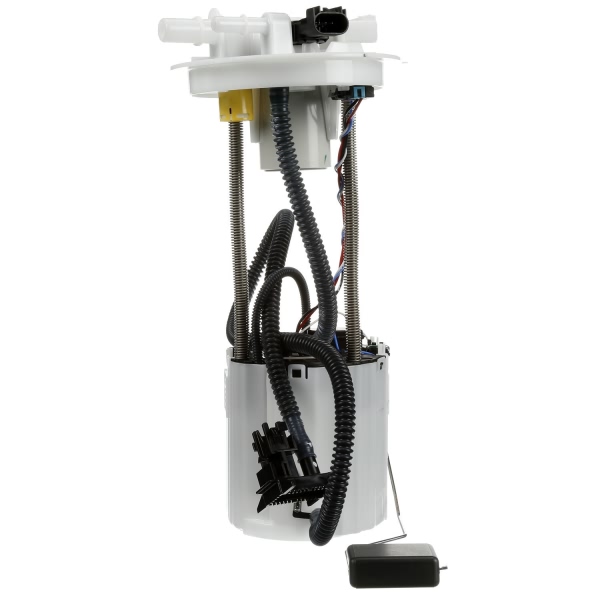

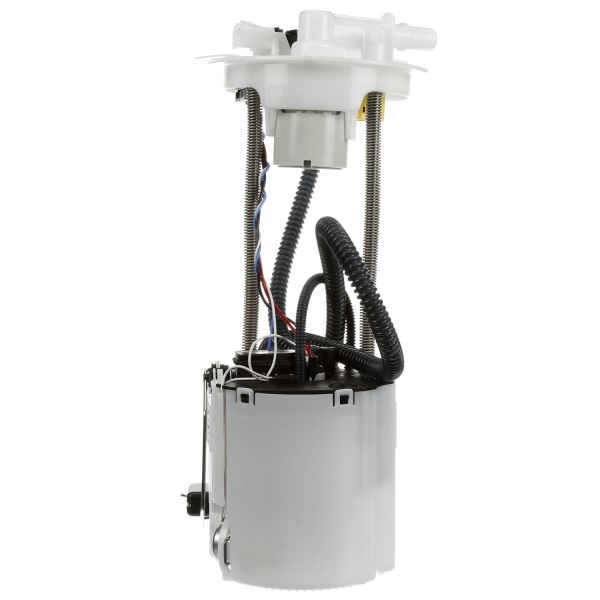

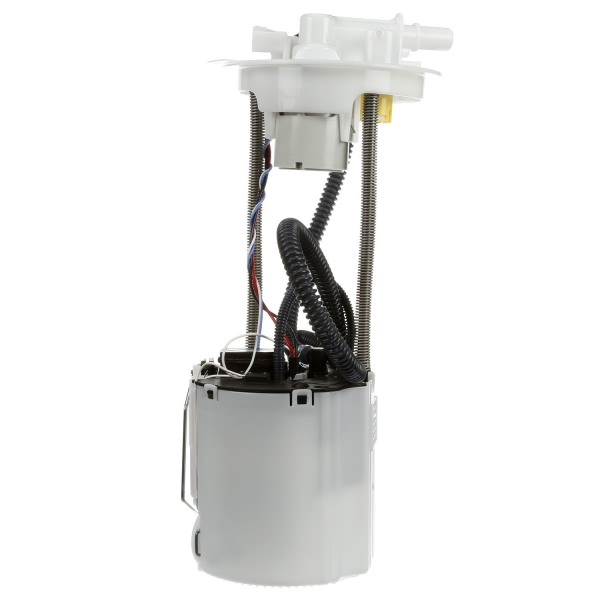

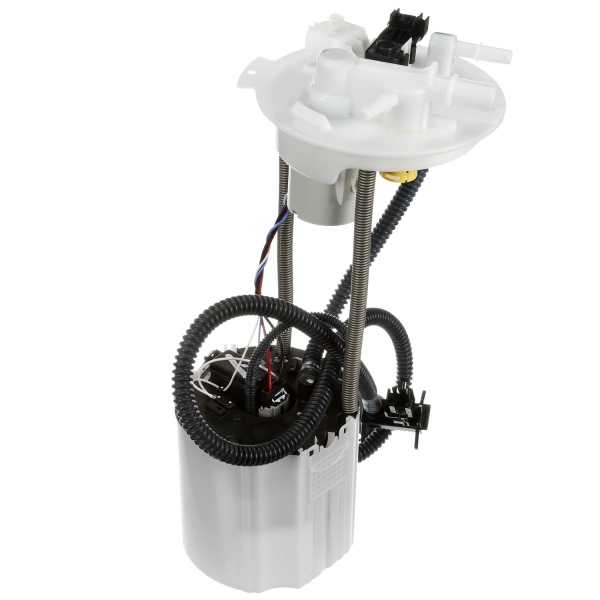

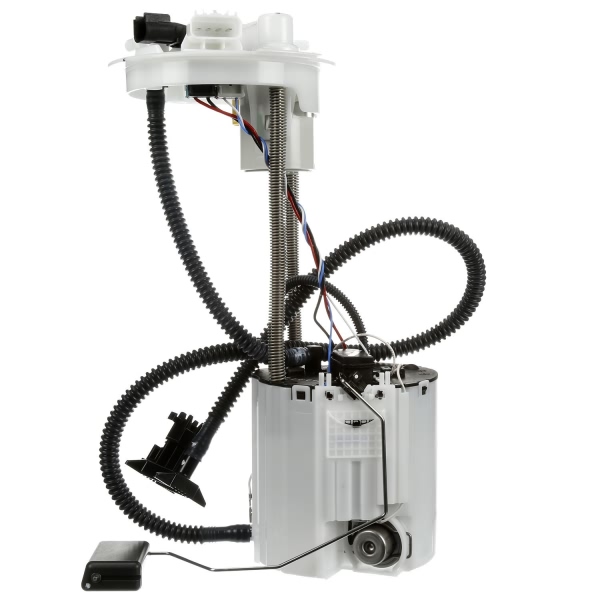

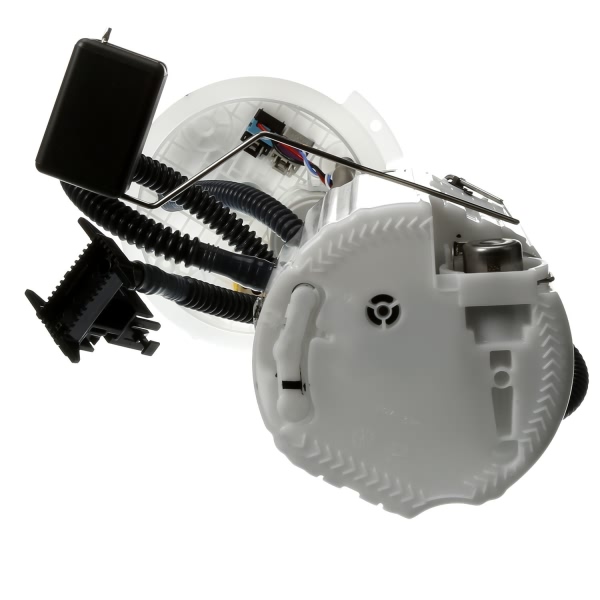

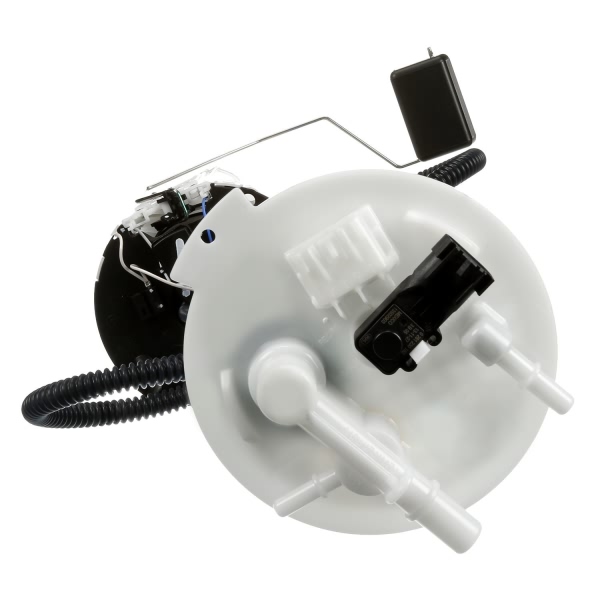

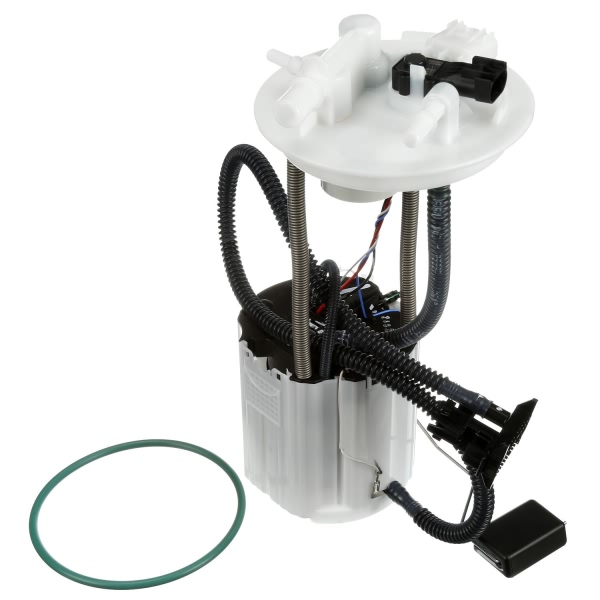

Part Description | Passenger Side Fuel Pump Module Assembly |
Current Draw | 10 |
Flow Rating | 30 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Lock Ring Included | No |
Maximum Pressure | 85.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 3 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 249.0 |
Resistance Ohms Full | 39.0 |
Strainer Included | Yes |
System Pressure | 44 psi |
Terminal Gender | Male |

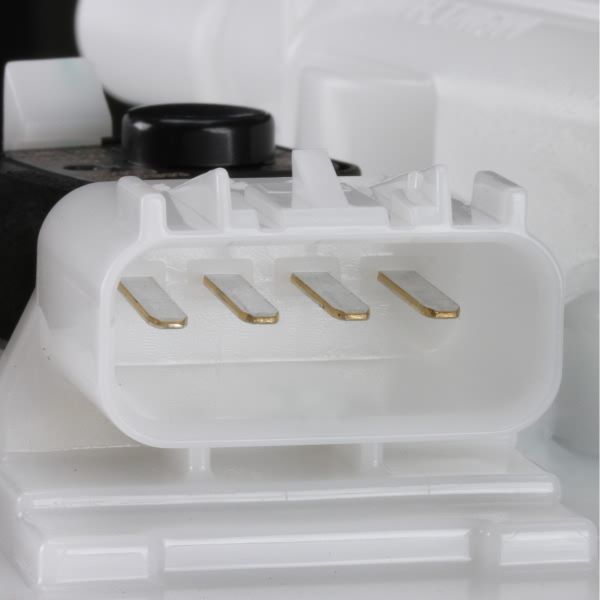

Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604241868 |
Vapor Pressure Sensor | Yes |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2010-2012 Chevrolet Equinox | All Trims | 6 Cyl 3.0L |
2013-2017 Chevrolet Equinox | All Trims | 6 Cyl 3.6L |
2010-2012 GMC Terrain | All Trims | 6 Cyl 3.0L |
2013-2017 GMC Terrain | All Trims | 6 Cyl 3.6L |
