Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1240 |

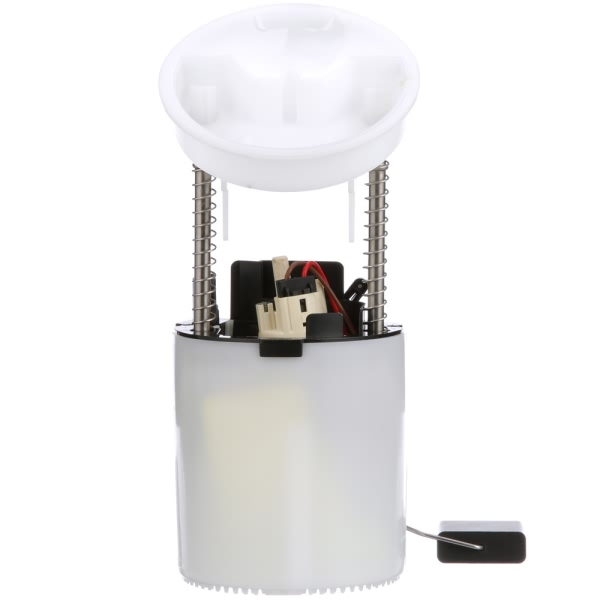

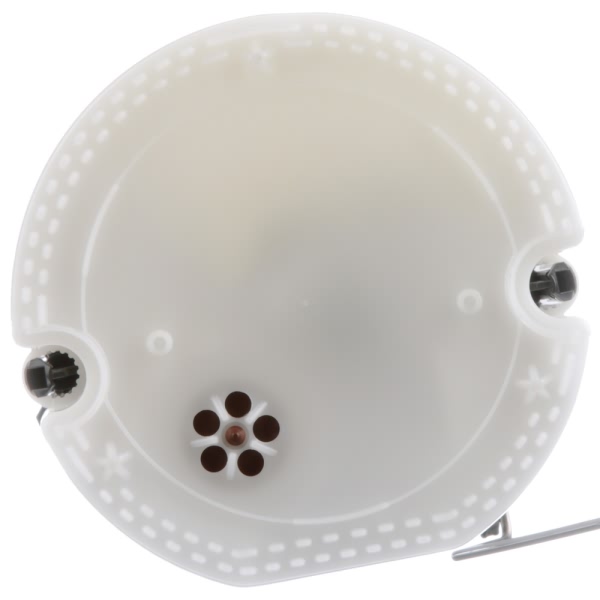

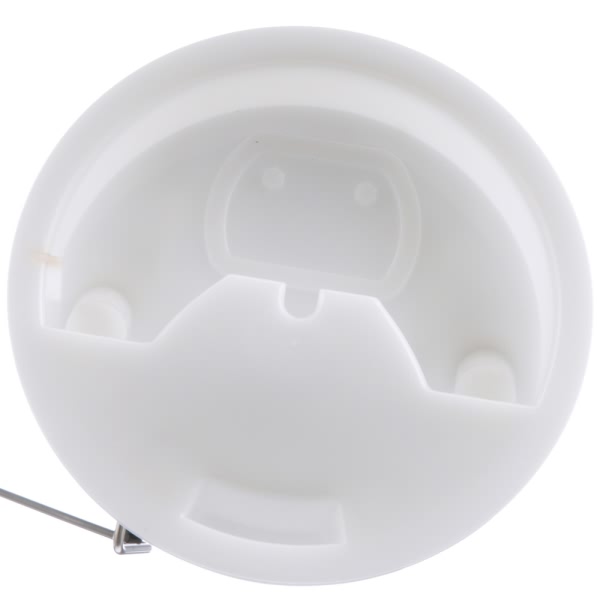

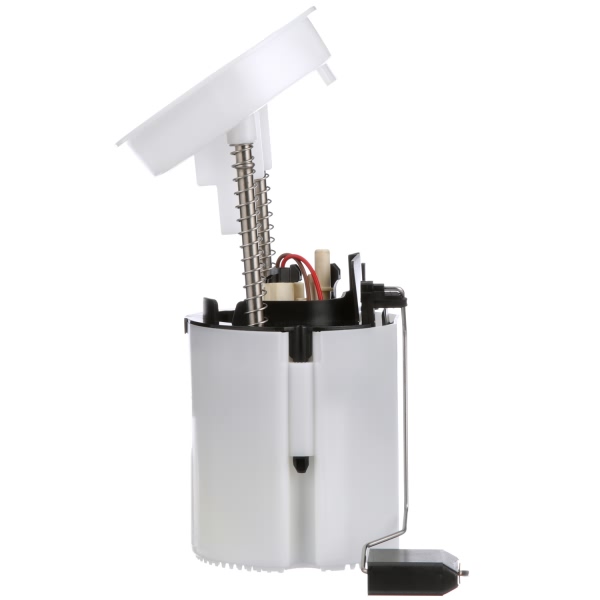

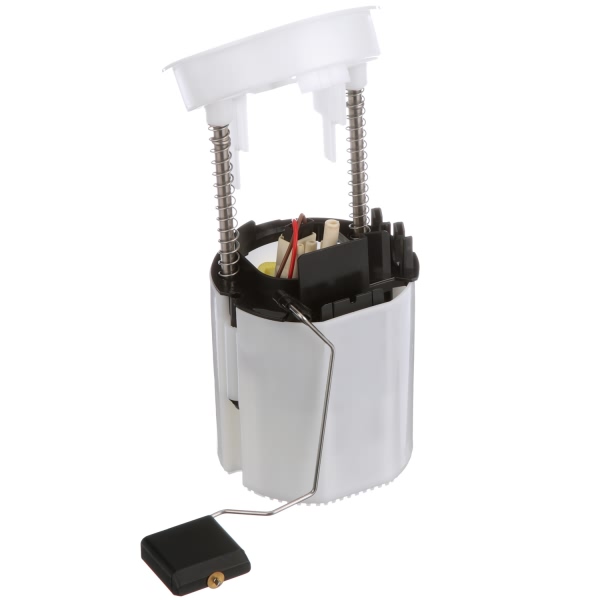

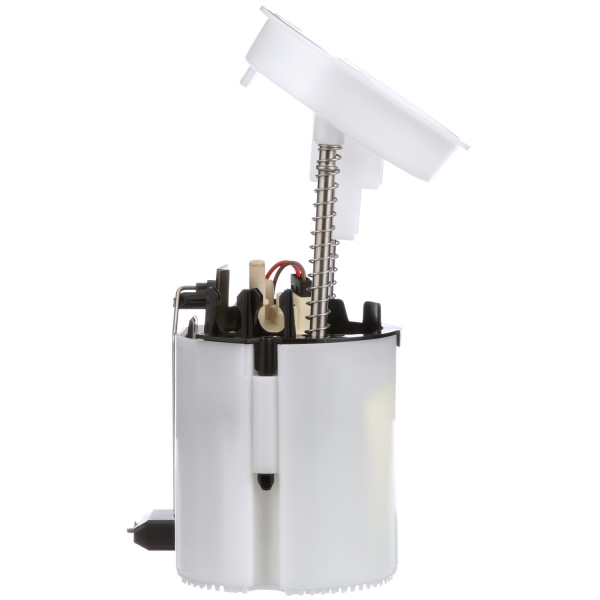

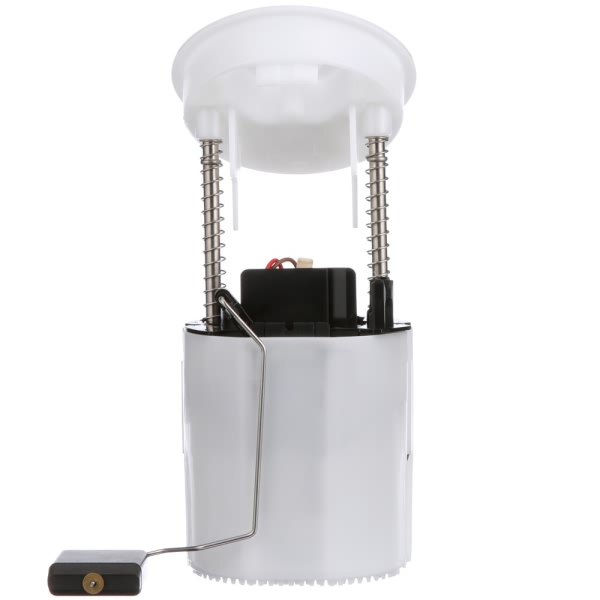

Part Description | Passenger Side Fuel Pump Module Assembly |
Current Draw | 7 |
Flow Rating | 33 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 95.0 PSI |
Outlet Outside Diameter | 0.313'' |
Outlet Quantity | 1 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | No |
Resistance Ohms Empty | 950.0 |
Resistance Ohms Full | 51.0 |
Strainer Included | Yes |
System Pressure | 58 psi |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604232071 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2007 Mercedes-Benz C230 | All Trims | 6 Cyl 2.5L |
2006-2007 Mercedes-Benz C350 | All Trims | 6 Cyl 3.5L |
2006-2009 Mercedes-Benz CLK350 | All Trims | 6 Cyl 3.5L |
2003-2006 Mercedes-Benz CLK500 | All Trims | 8 Cyl 5.0L |
