Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | TA1172 |

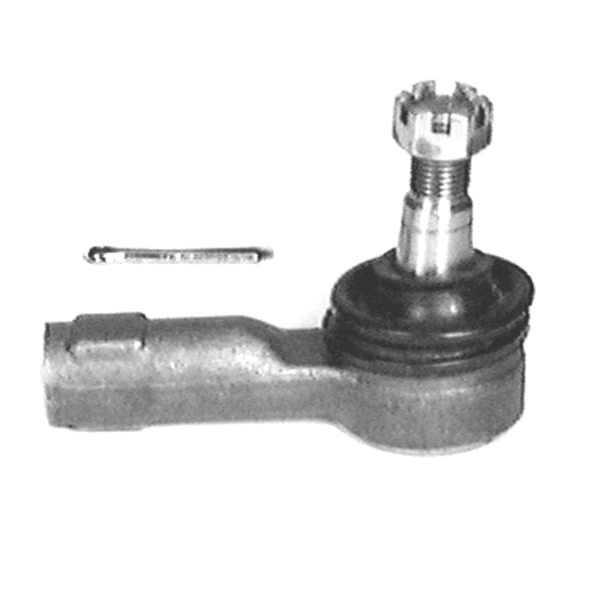

Part Description | Outer Steering Tie Rod End |
Adjustable | No |
Bearing Material | POM |
Color | Gray |
Dust Boot Included | Yes |
Dust Boot Material | Chloroprene Rubber |
End 1 Gender | Male |
End 1 Thread Diameter | 12.0 |
End 1 Thread Direction | Clockwise |
End 1 Thread Pitch | 1.25 |
End 2 Gender | Female |
End 2 Thread Diameter | 14.0 |
End 2 Thread Direction | Clockwise |
End 2 Thread Pitch | 1.5 |
End 2 Threads Per Inch | 17 |
Finish | Phosphate |
Grade | Premium |
Greasable | No |
Grease Fitting Included | No |
Height | 90.00 |
Housing Material | Steel |
Item Grade | Standard Replacement |
Length | 93.00 |
Length Stud Center to End | 2.11 or 53.5 |
Mounting Hardware Included | Yes |
Pre-Greased | Yes |
Stud Type | Threaded |
Tie Rod Material | Steel |
UPC | 689604274149 |
Weight | 0.67 |
Width | 38.00 |
Year Make Model | Trim | Engine |
---|---|---|
1979-1982 Chevrolet LUV | All Trims | All Engines |
1981-1987 Isuzu Pickup | All Trims | All Engines |
1984-1986 Isuzu Trooper | All Trims | All Engines |
