Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | TC5019 |

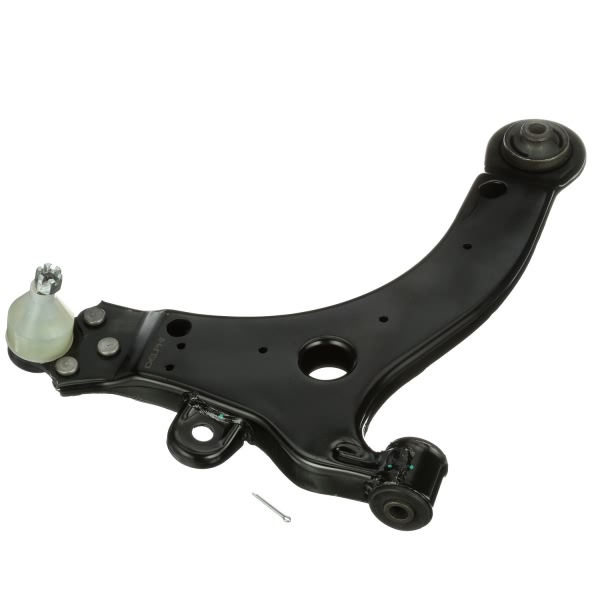

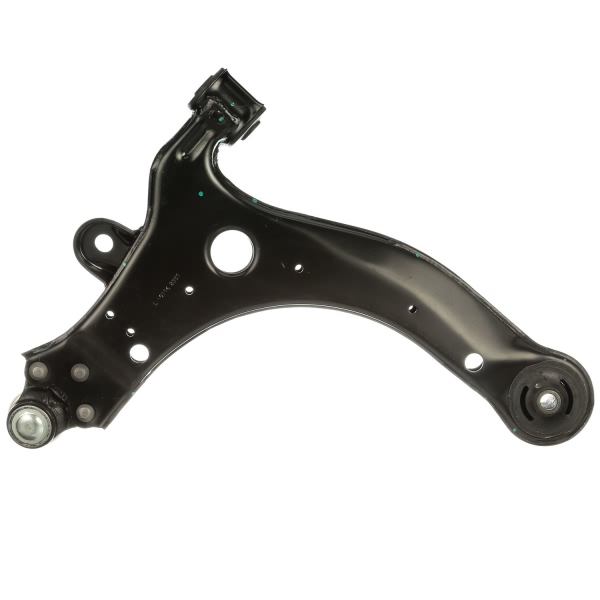

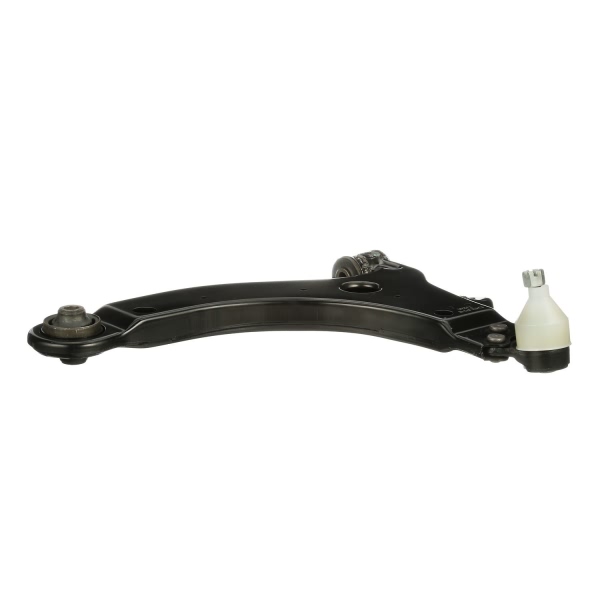

Part Description | Front Driver Side Control Arm And Ball Joint Assembly |
Adjustable | No |
Ball Joint Mounting Type | Welded |
Ball Joint Stud Length | 3.07 or 78.0 |
Ball Joint Stud Type | Threaded |
Ball Joint Thread Diameter | 12.0 |
Bushing Material | Rubber |
Bushings Included | Yes |
Control Arm Color | Black |
Control Arm Construction | Stamped |
Control Arm Material | Steel |
Control Arm Maximum Length | 18.07 or 459.0 |
Control Arm Maximum Width | 14.61 or 371.0 |
Greasable | No |
Grease Fitting Included | No |
Item Grade | Standard Replacement |
Mounting Hardware Included | Yes |
Mounting Hole Quantity | 2 |
Pre-Greased | Yes |
Suspension Grade Type | Light |
UPC | 689604281185 |
Year Make Model | Trim | Engine |
---|---|---|
2005-2009 Buick Allure | All Trims | All Engines |
2005-2009 Buick LaCrosse | All Trims | All Engines |
2008 Buick LaCrosse | All Trims | 6 Cyl 3.6L |
2000-2005 Chevrolet Impala | All Trims | All Engines |
2006-2009 Chevrolet Impala | SS | All Engines |
2006-2013 Chevrolet Impala | LS | All Engines |
2006-2013 Chevrolet Impala | LT | All Engines |
2006-2013 Chevrolet Impala | LTZ | All Engines |
2014-2016 Chevrolet Impala Limited | LS | All Engines |
2014-2016 Chevrolet Impala Limited | LT | All Engines |
