Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | TA1712 |

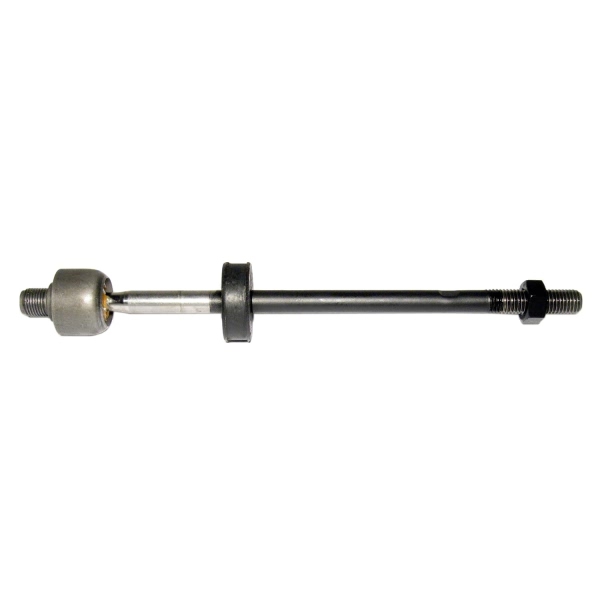

Part Description | Inner Steering Tie Rod End |
Adjustable | No |
Bearing Material | POM |
Color | Black, Gray |
Dust Boot Included | No |
Dust Boot Material | Rubber |
End 1 Gender | Male |
End 1 Thread Diameter | 14.0 |
End 1 Thread Direction | Clockwise |
End 1 Thread Pitch | 2.0 |
End 2 Gender | Male |
End 2 Thread Diameter | 16.0 |
End 2 Thread Direction | Clockwise |
End 2 Thread Pitch | 1.5 |
End 2 Threads Per Inch | 17 |
Finish | Phosphate, Cataphoresis |
Grade | Premium |
Greasable | No |
Grease Fitting Included | No |
Housing Material | Steel |
Item Grade | Standard Replacement |
Length Stud Center to End | 10.73 or 272.5 |
Mounting Hardware Included | Yes |
Pre-Greased | Yes |
Stud Type | Threaded |
Tie Rod Material | Steel |
UPC | 689604272800 |
Weight | 1.11 |
Year Make Model | Trim | Engine |
---|---|---|
1985-1992 Volvo 740 | All Trims | All Engines |
1985 Volvo 745 | All Trims | All Engines |
1985-1990 Volvo 760 | All Trims | All Engines |
1987-1991 Volvo 780 | All Trims | All Engines |
1991-1995 Volvo 940 | All Trims | All Engines |
1992-1997 Volvo 960 | All Trims | All Engines |
