Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG2324 |

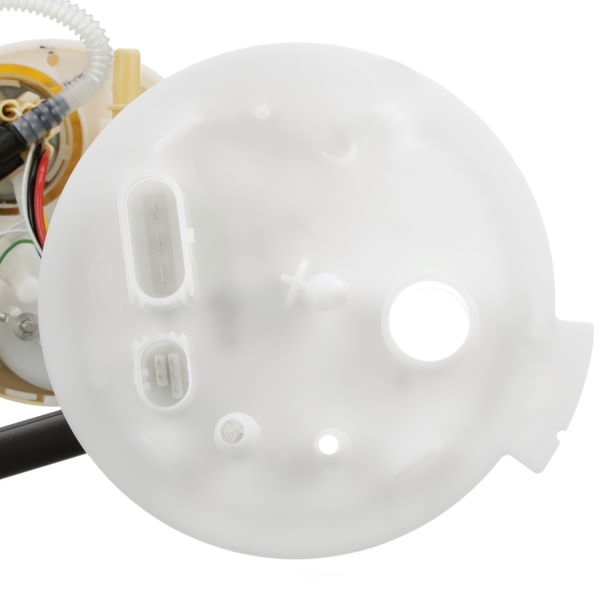

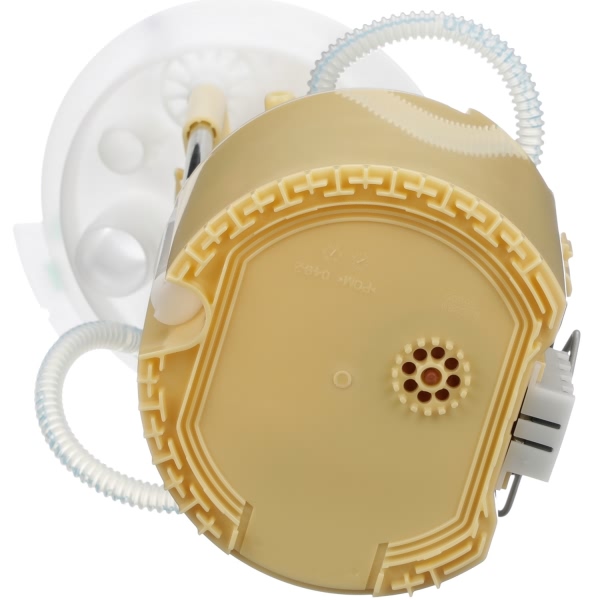

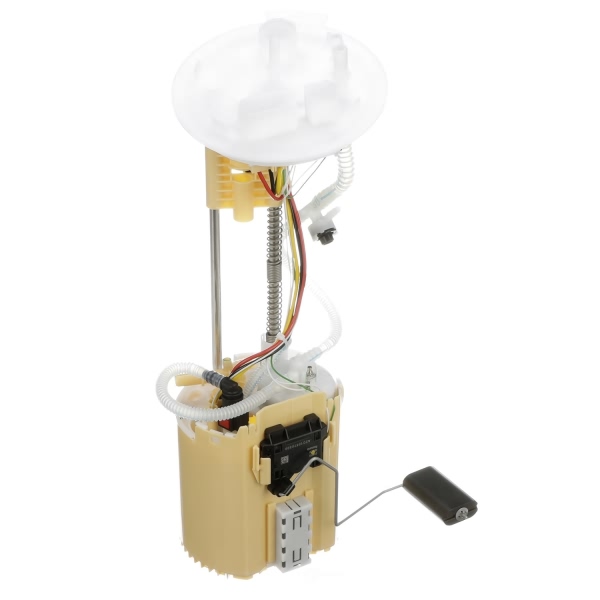

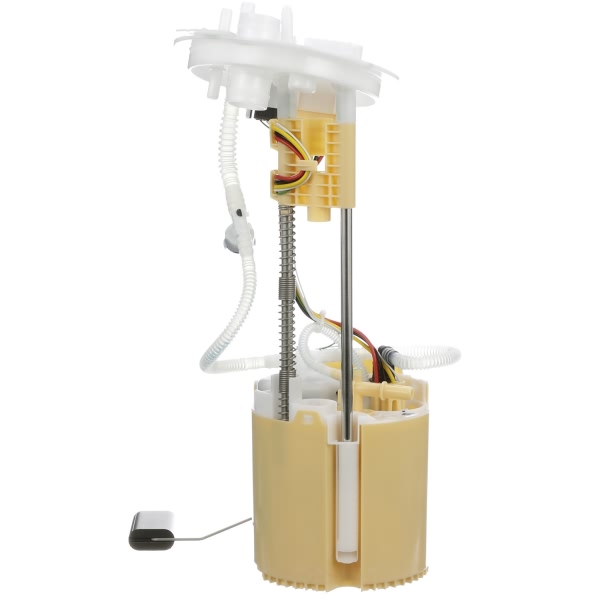

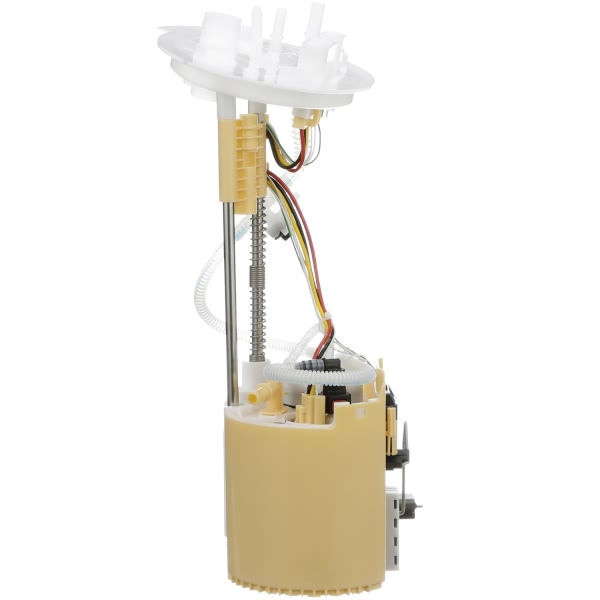

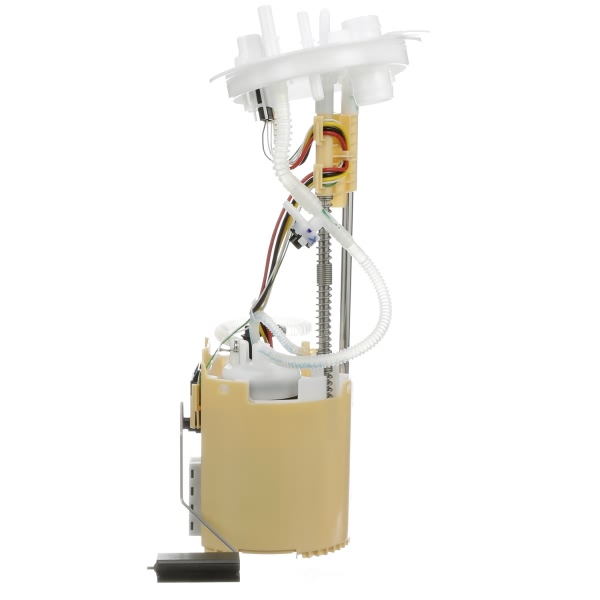

Part Description | Fuel Pump Module Assembly |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In-Tank |
Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Lock Ring Included | No |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Package Contents | Fuel Pump Module Assembly withFloat Arm, Instruction Sheet |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 990.0 |
Resistance Ohms Full | 51.0 |
Strainer Included | Yes |

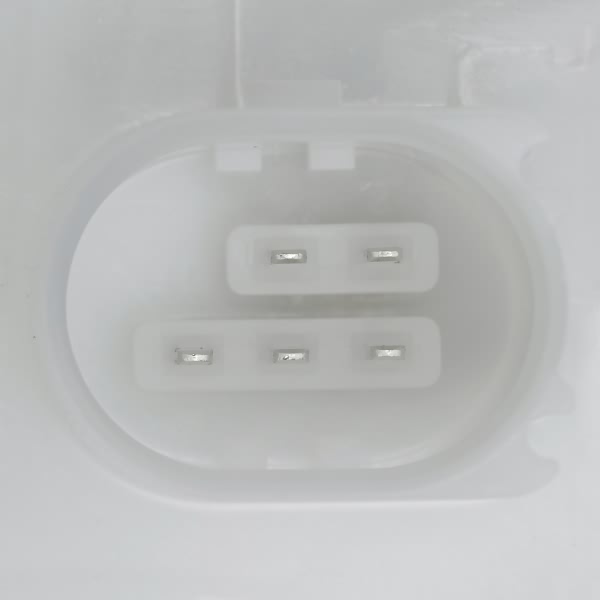

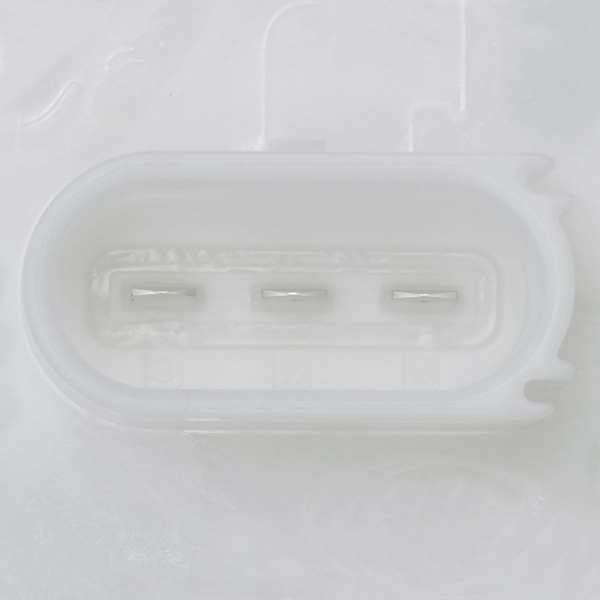

Terminal Gender | Male |
Terminal Quantity | 8 |
Terminal Type | Blade |
UPC | 689604338209 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2017-2019 Land Rover Range Rover | All Trims | 6 Cyl 3.0L |
2017-2019 Land Rover Range Rover | All Trims | 8 Cyl 5.0L |
2017-2019 Land Rover Range Rover Sport | All Trims | 6 Cyl 3.0L |
2017-2019 Land Rover Range Rover Sport | All Trims | 8 Cyl 5.0L |
