Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG2319 |

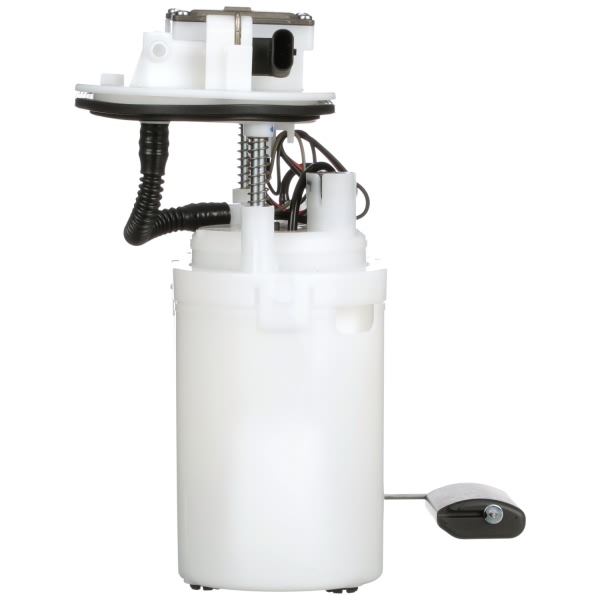

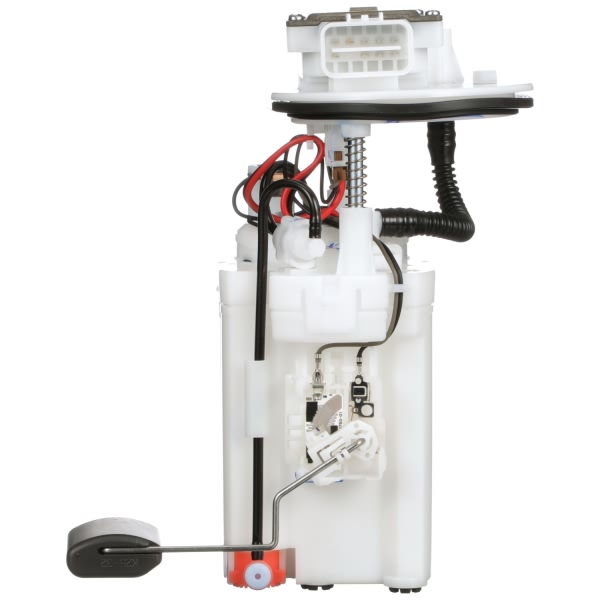

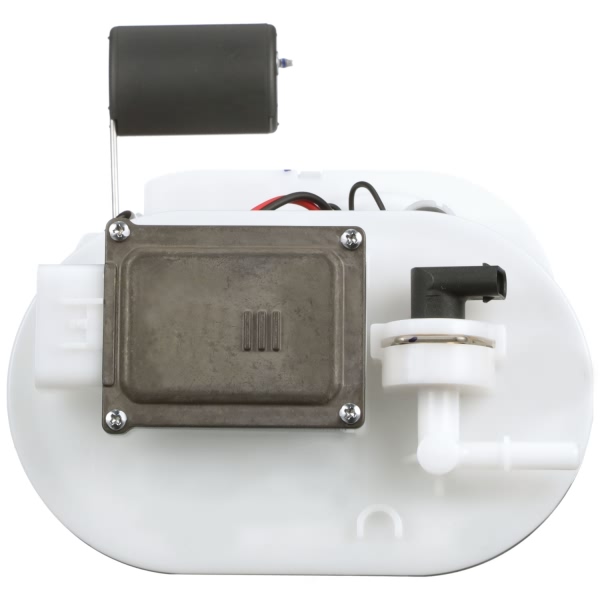

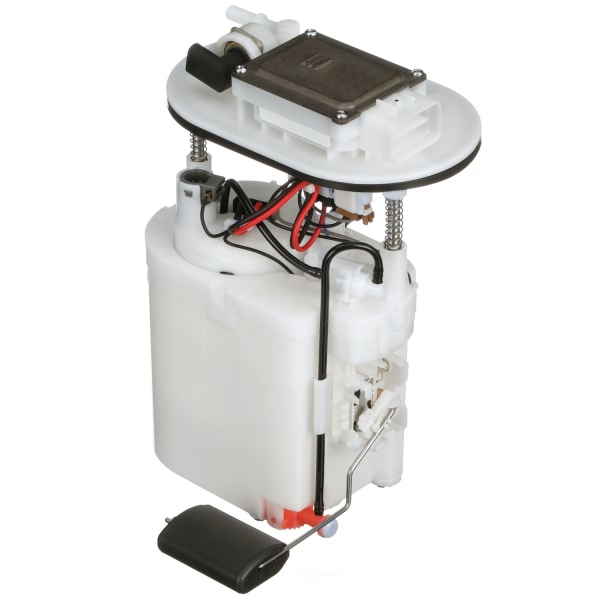

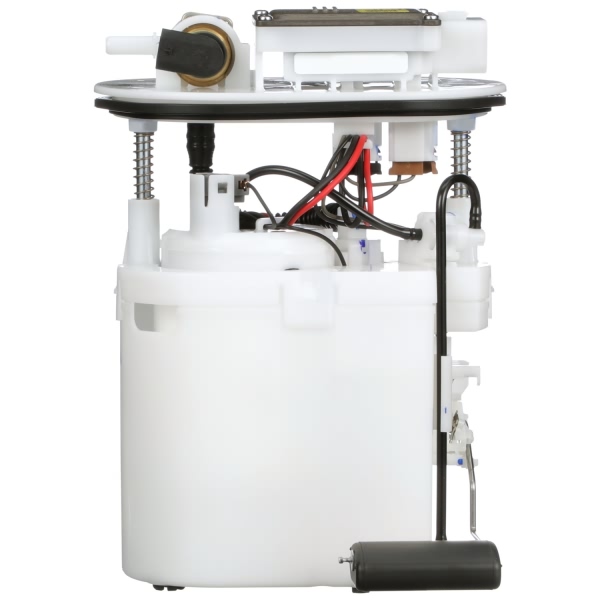

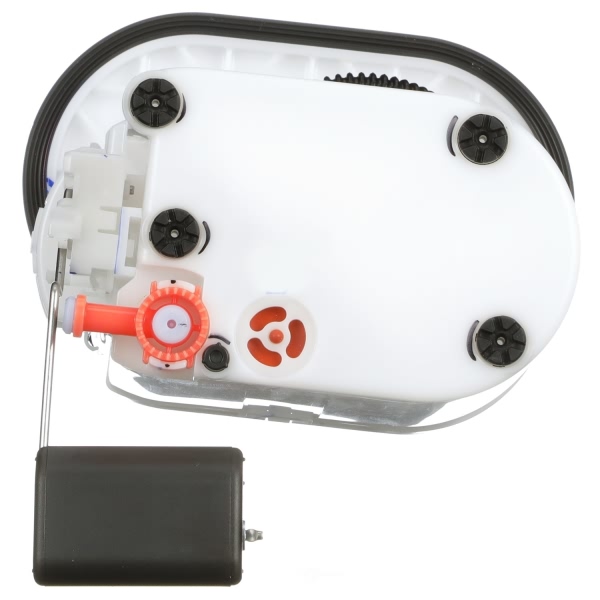

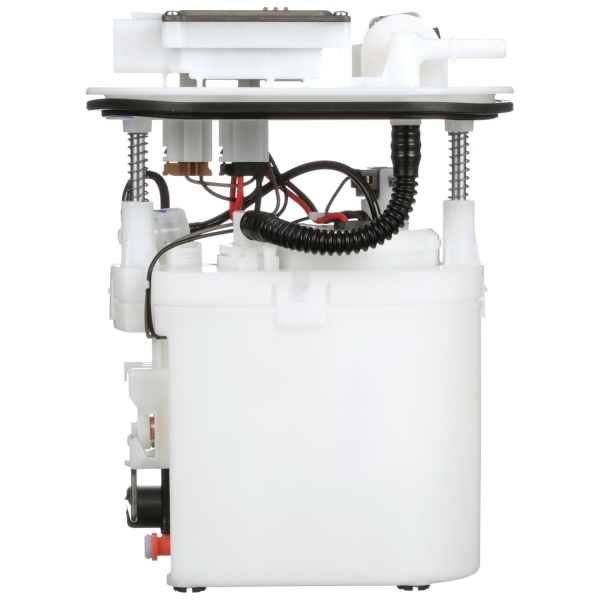

Part Description | Fuel Pump Module Assembly |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In-Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Lock Ring Included | No |
Outlet Outside Diameter | 0.313'' |
Outlet Quantity | 1 |
Outlet Type | Quick Connect |
Package Contents | Fuel Pump Module Assembly withFloat Arm, Seal, Instruction Sheet |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 300.0 |
Resistance Ohms Full | 15.0 |
Strainer Included | Yes |
Terminal Gender | Male |

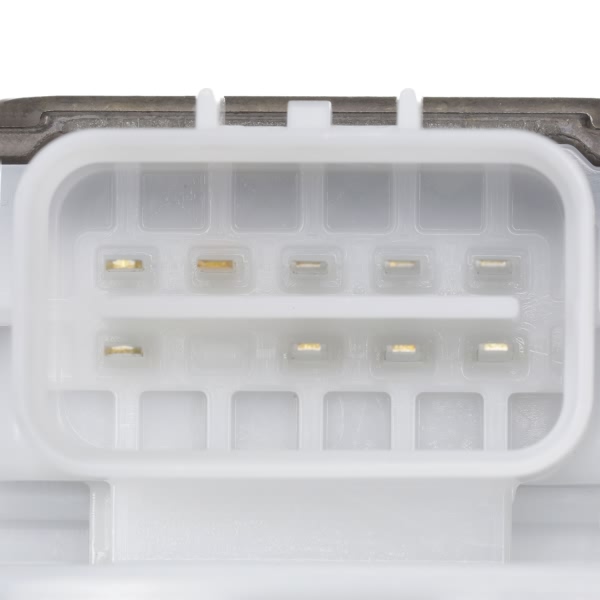

Terminal Quantity | 9 |
Terminal Type | Blade |
UPC | 689604338124 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2016 Hyundai Sonata | Hybrid | 4 Cyl 2.0L |
2016-2019 Hyundai Sonata | Hybrid Limited | 4 Cyl 2.0L |
2017-2019 Hyundai Sonata | Hybrid SE | 4 Cyl 2.0L |
2017-2018 Kia Optima | Hybrid EX | 4 Cyl 2.0L |
2017-2018 Kia Optima | Hybrid Premium | 4 Cyl 2.0L |
