Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG2308 |

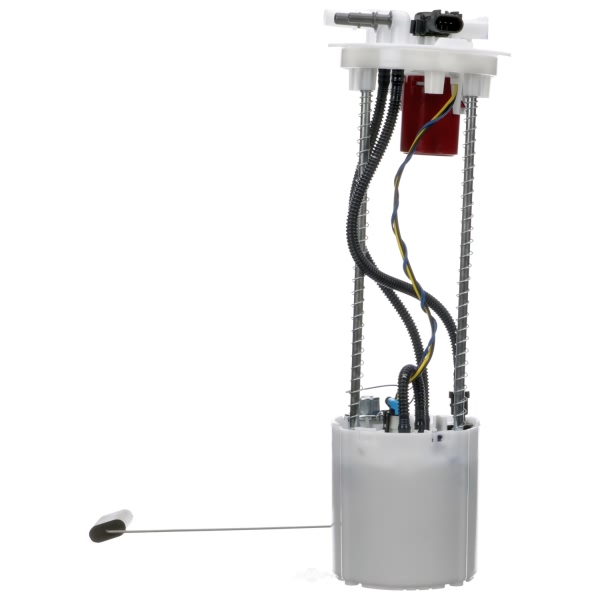

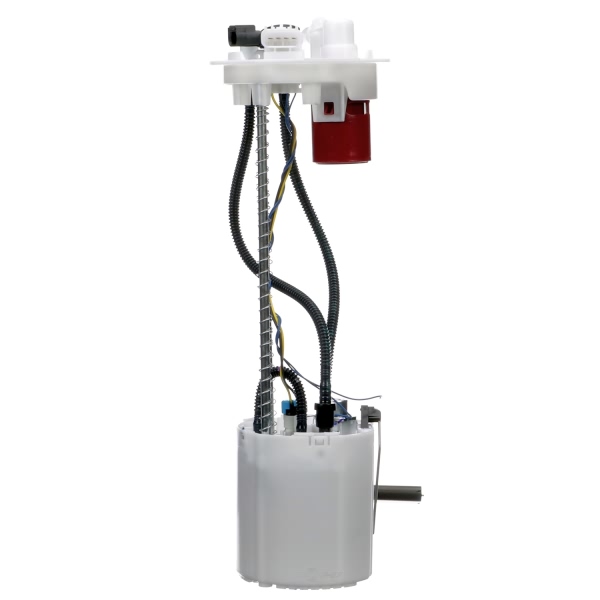

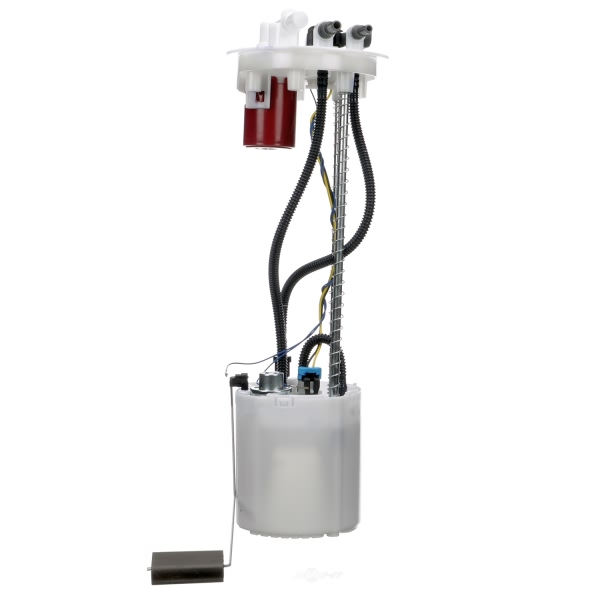

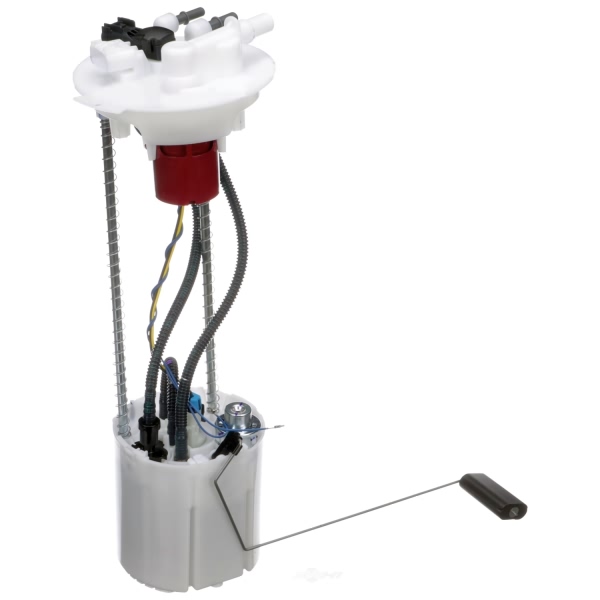

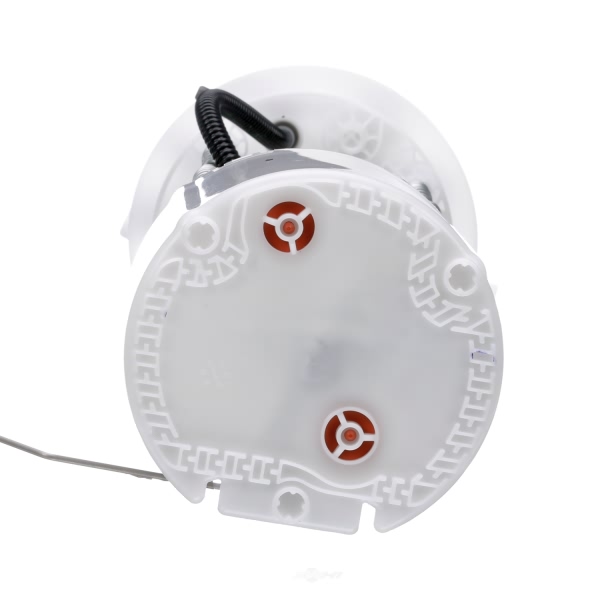

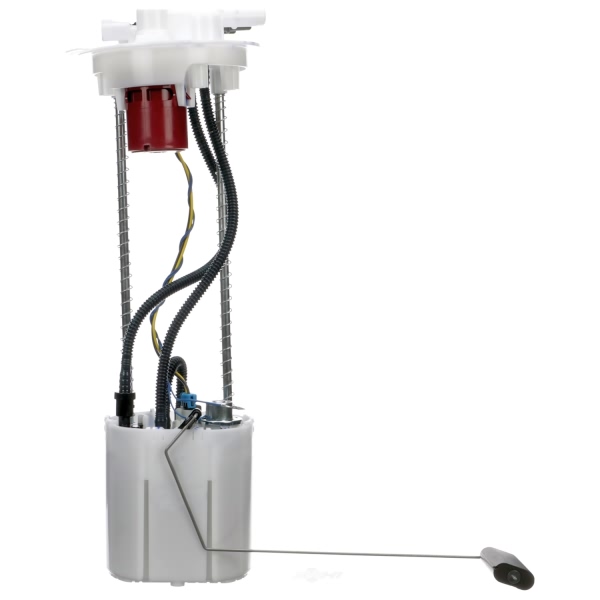

Part Description | Fuel Pump Module Assembly |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Flex |
Gasket or Seal Included | Yes |
In Tank or External | In-Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Lock Ring Included | No |
Maximum Pressure | 100.0 PSI |
Outlet Outside Diameter | 0.375'' |

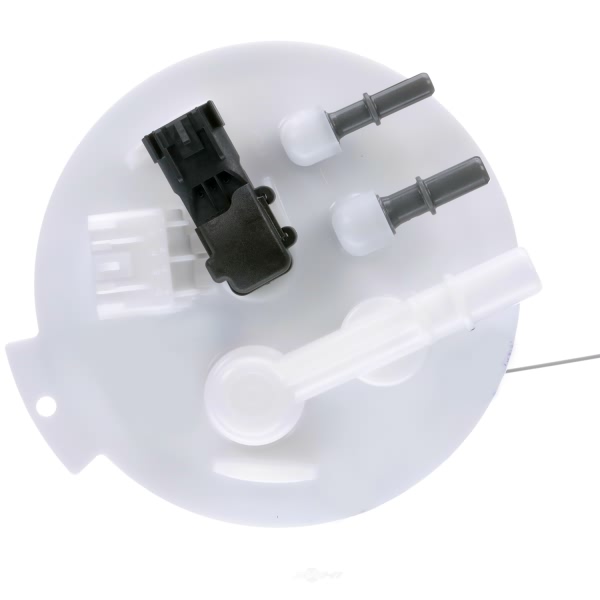

Outlet Quantity | 3 |
Outlet Type | Quick Connect |

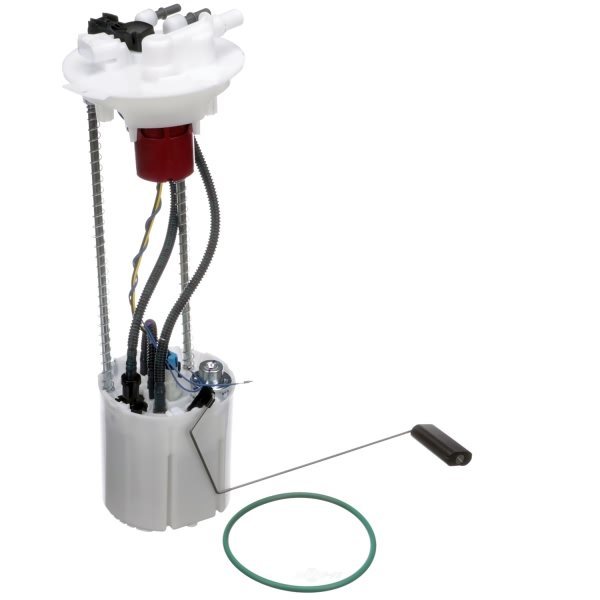

Package Contents | Fuel Pump Module Assembly withFloat Arm, Seal, Instruction Sheet |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 250.0 |
Resistance Ohms Full | 40.0 |
Strainer Included | Yes |
System Pressure | 50 PSI |

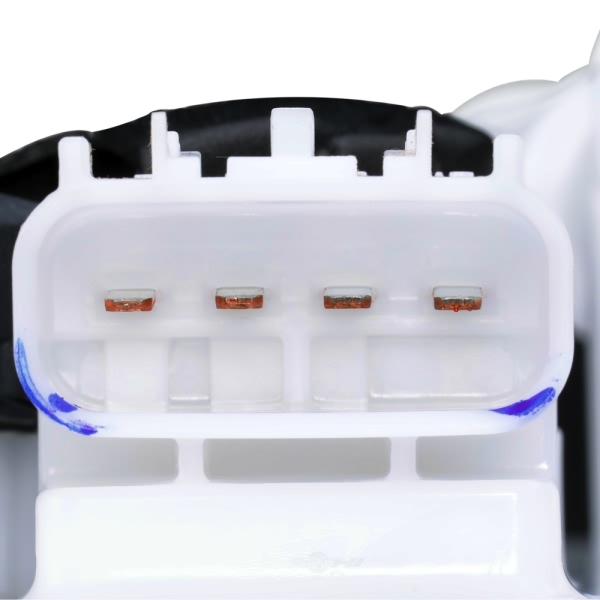

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604329467 |
Vapor Pressure Sensor | Yes |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2011-2013 Chevrolet Silverado 3500 HD | All Trims | 8 Cyl 6.0L |
2014 Chevrolet Silverado 3500 HD | LT | 8 Cyl 6.0L |
2014 Chevrolet Silverado 3500 HD | WT | 8 Cyl 6.0L |
2011-2013 GMC Sierra 3500 HD | SLT | 8 Cyl 6.0L |
2011-2014 GMC Sierra 3500 HD | SLE | 8 Cyl 6.0L |
2011-2014 GMC Sierra 3500 HD | WT | 8 Cyl 6.0L |
