Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG2201 |

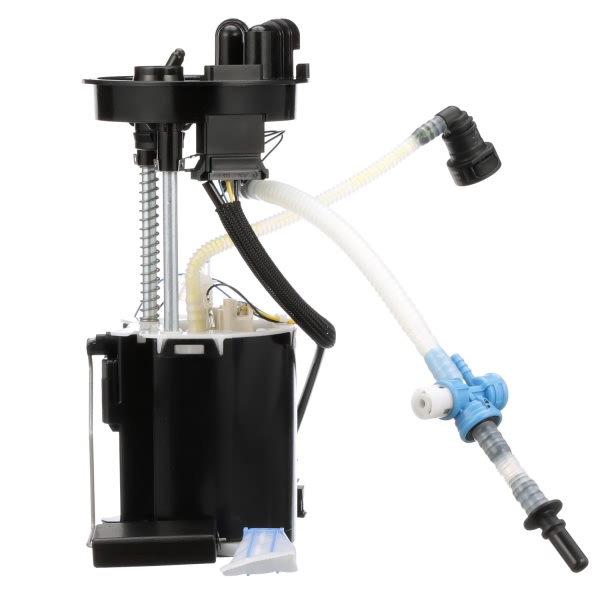

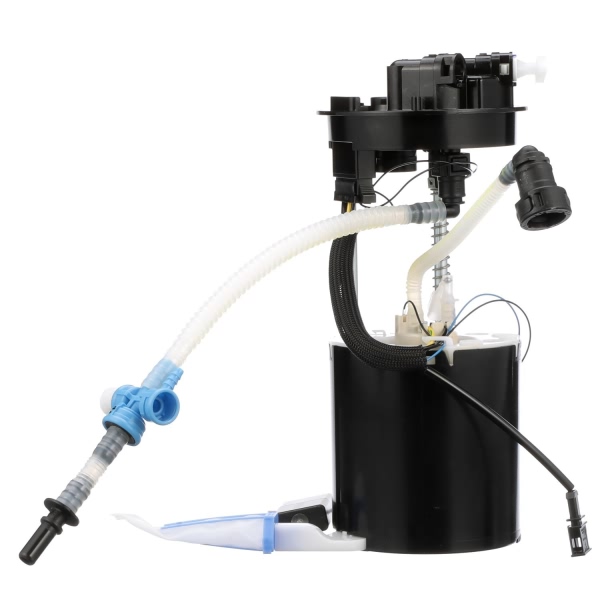

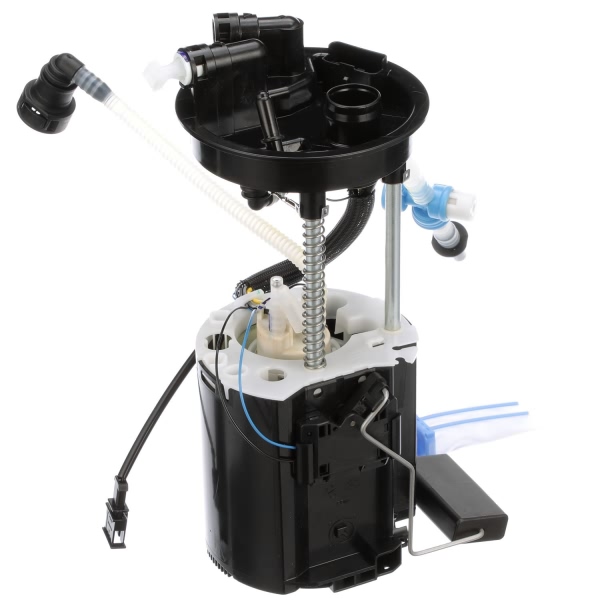

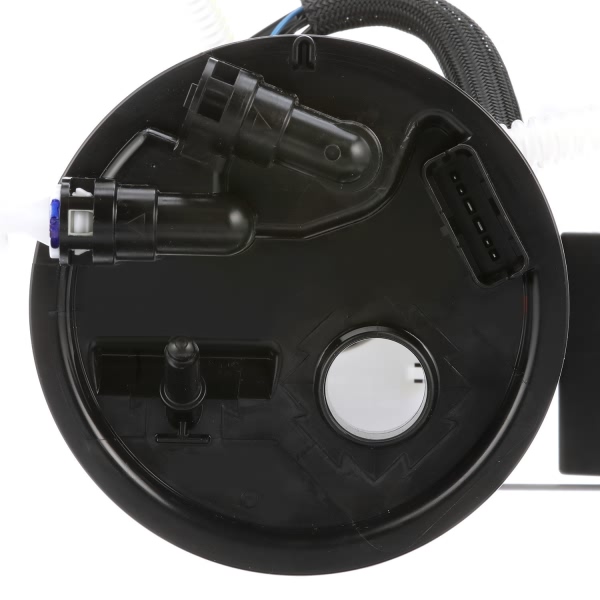

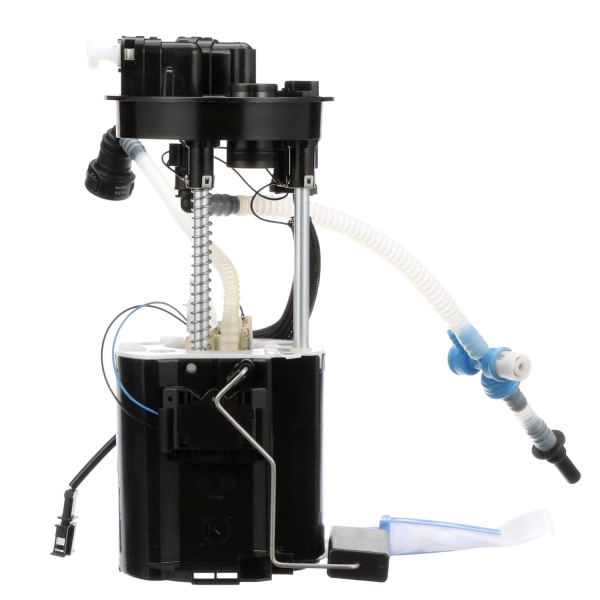

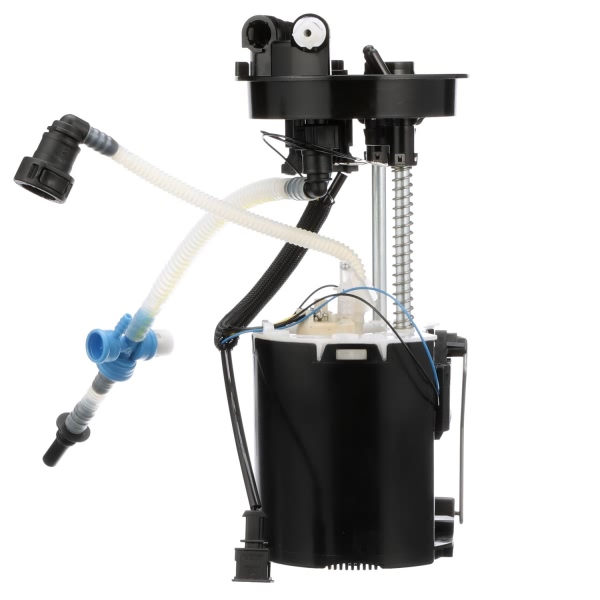

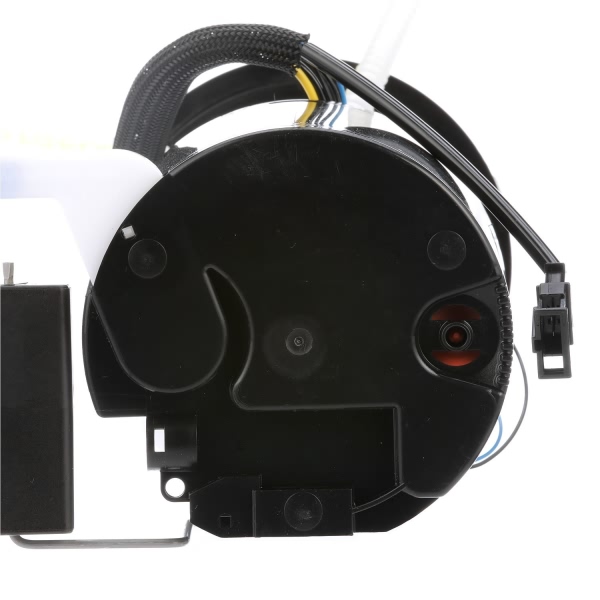

Part Description | Fuel Pump Module Assembly |
Flow Rating | 40 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Lock Ring Included | No |
Maximum Pressure | 150.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 3 |
Outlet Type | Female Quick Connect |
Package Contents | Fuel Pump Module Assembly withFloat Arm, Instruction Sheet |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 990.0 |
Resistance Ohms Full | 51.0 |
Strainer Included | Yes |
System Pressure | 70 psi |

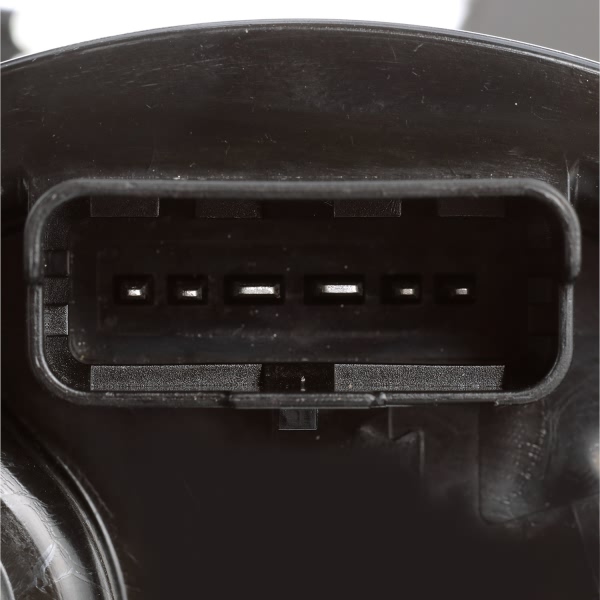

Terminal Gender | Male |
Terminal Quantity | 6 |
Terminal Type | Blade |
UPC | 689604295571 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2015-2016 Volvo S80 | All Trims | 4 Cyl 2.0L |
2015-2017 Volvo XC60 | All Trims | 4 Cyl 2.0L |
2015-2016 Volvo XC70 | All Trims | 4 Cyl 2.0L |
