Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG2199 |

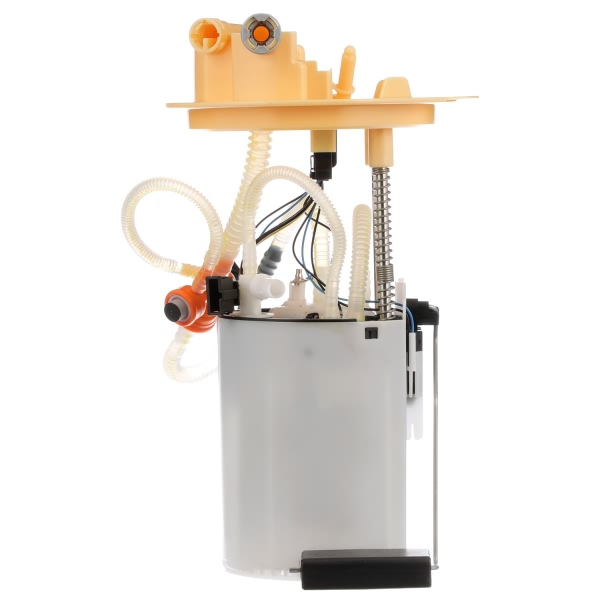

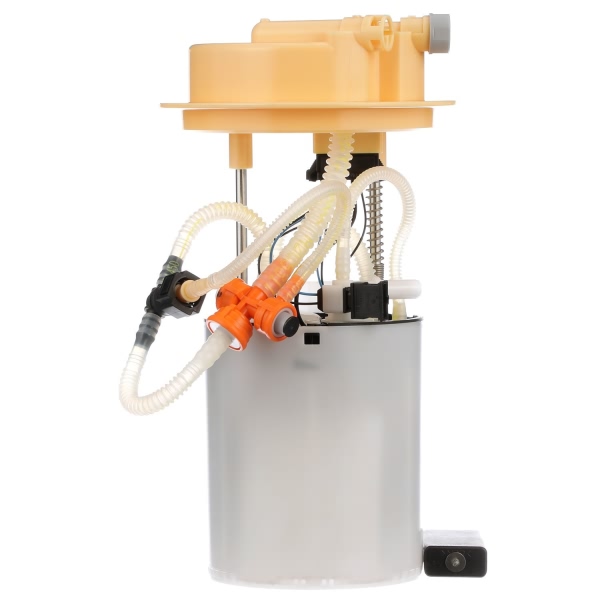

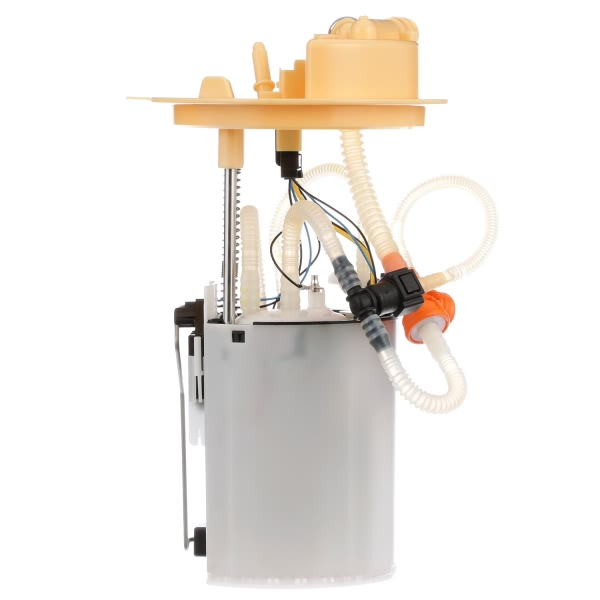

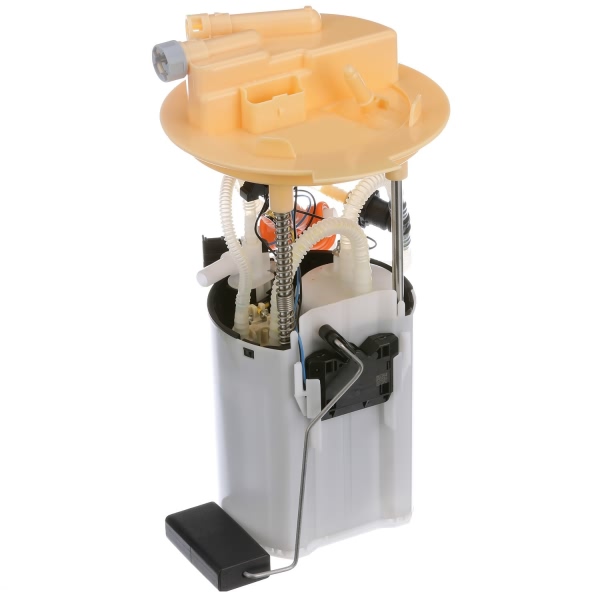

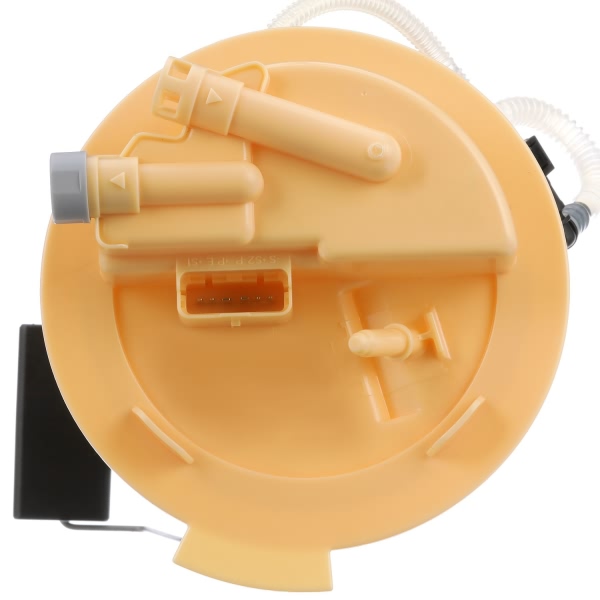

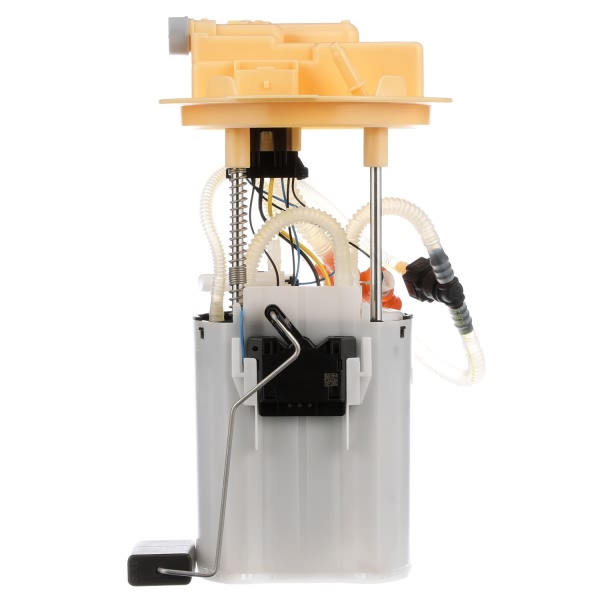

Part Description | Fuel Pump Module Assembly |
Flow Rating | 38 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In Tank |
Inlet Type | Strainer |

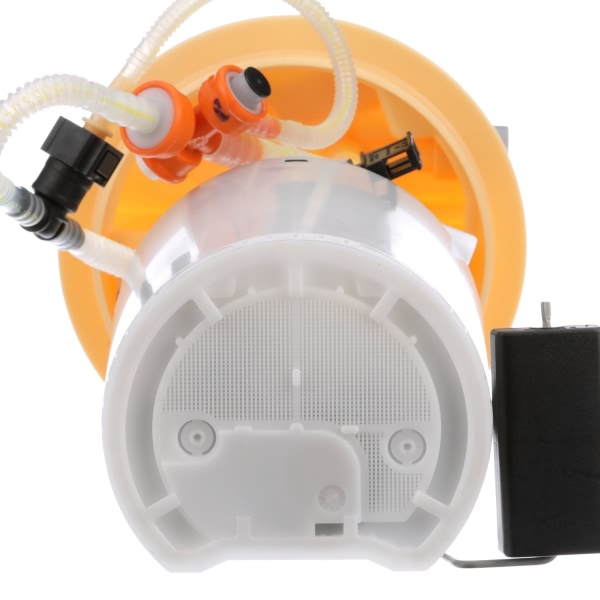

Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Lock Ring Included | No |
Maximum Pressure | 80.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 1 |
Outlet Type | Female Quick Connect |
Package Contents | Fuel Pump Module Assembly withFloat Arm, Instruction Sheet |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 65.0 |
Resistance Ohms Full | 990.0 |
Strainer Included | Yes |
System Pressure | 72 psi |
Terminal Gender | Male |

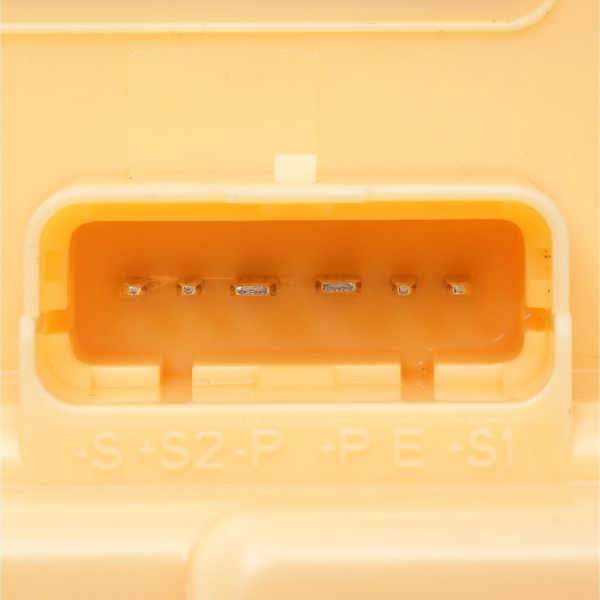

Terminal Quantity | 6 |
Terminal Type | Blade |
UPC | 689604295687 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2014-2015 Volvo S60 | All Trims | 5 Cyl 2.5L |
2016 Volvo S60 Cross Country | All Trims | 5 Cyl 2.5L |
2015 Volvo V60 | All Trims | 5 Cyl 2.5L |
2015-2016 Volvo V60 Cross Country | All Trims | 5 Cyl 2.5L |
