Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG2184 |

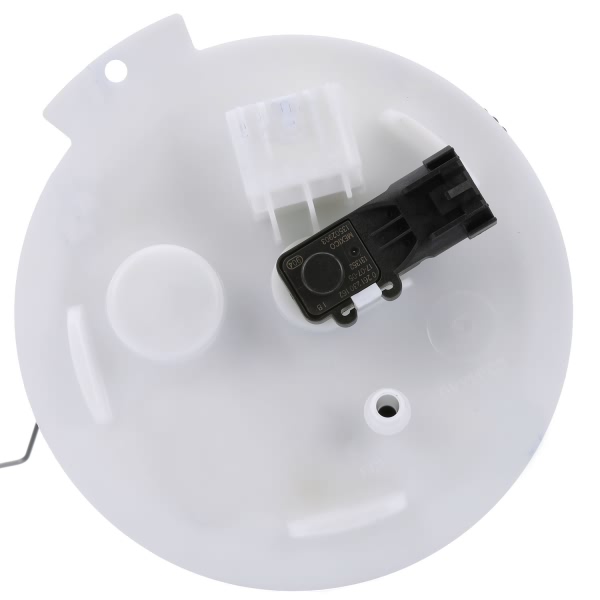

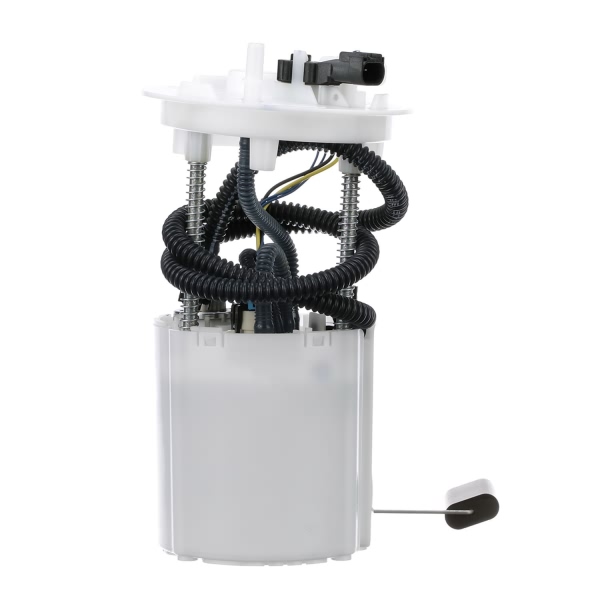

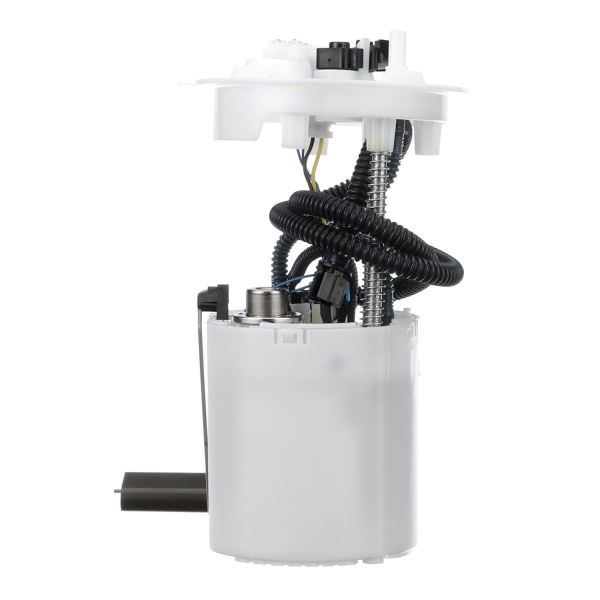

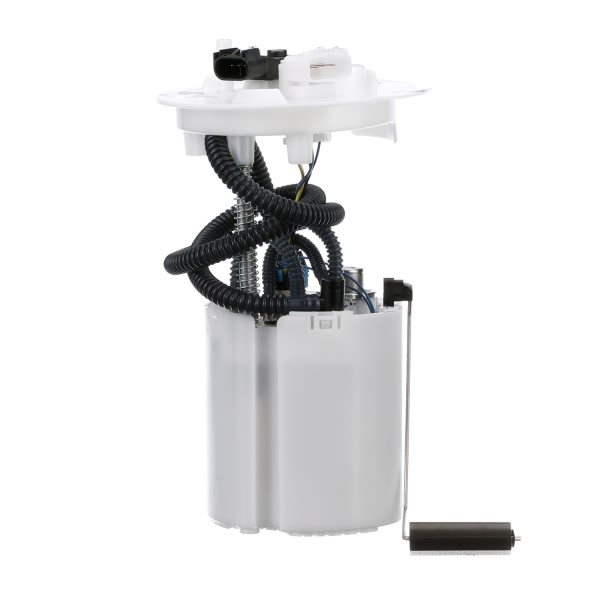

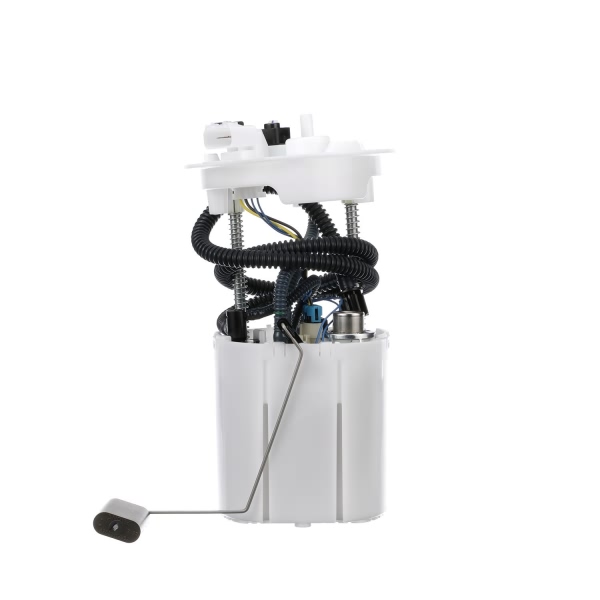

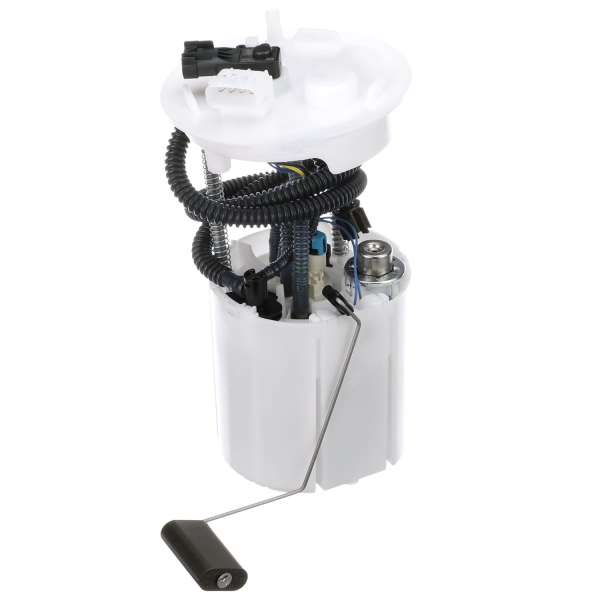

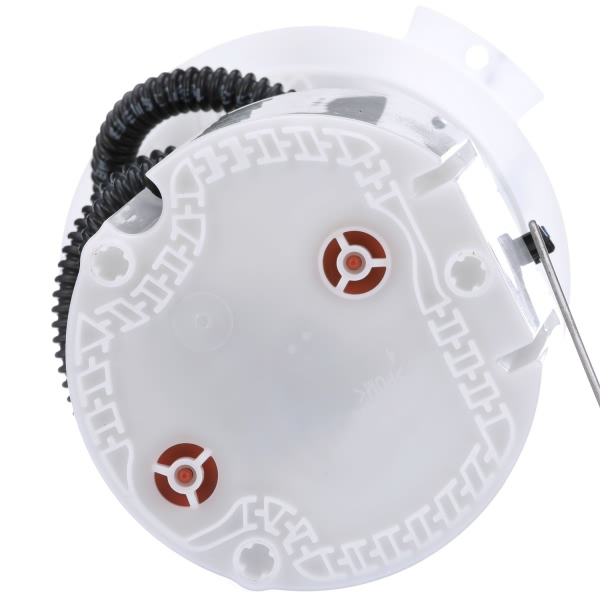

Part Description | Fuel Pump Module Assembly |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Flex |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Lock Ring Included | No |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 1 |
Outlet Type | Quick Connect |

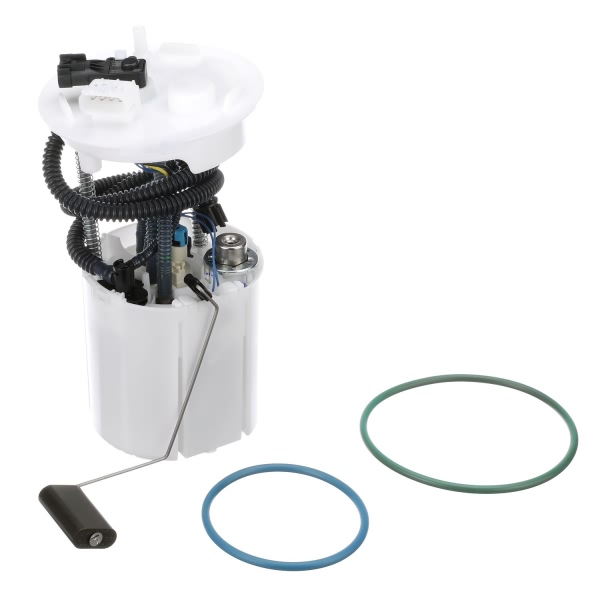

Package Contents | Fuel Pump Module Assembly withFloat Arm, Seals, Instruction Sheet |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 250.0 |
Resistance Ohms Full | 40.0 |
Strainer Included | Yes |
System Pressure | 51 psi |

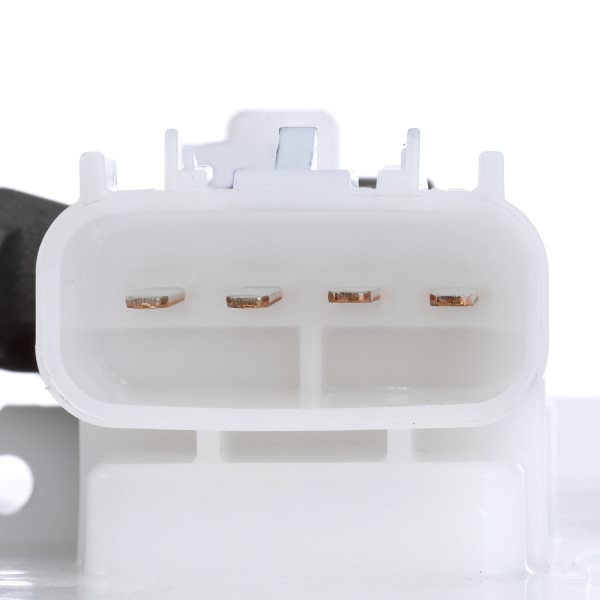

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604295489 |
Vapor Pressure Sensor | Yes |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2012-2015 Buick LaCrosse | All Trims | 6 Cyl 3.6L |
2016 Buick LaCrosse | Leather | 6 Cyl 3.6L |
2016 Buick LaCrosse | Premium | 6 Cyl 3.6L |
2014-2015 Buick Regal | All Trims | 4 Cyl 2.0L |
2016-2017 Buick Regal | GS | 4 Cyl 2.0L |
2016-2017 Buick Regal | Premium | 4 Cyl 2.0L |
2017 Buick Regal | Base | 4 Cyl 2.0L |
2013-2016 Cadillac XTS | Premium | 6 Cyl 3.6L |
2013-2018 Cadillac XTS | Luxury | 6 Cyl 3.6L |
2013-2018 Cadillac XTS | Platinum | 6 Cyl 3.6L |
