Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG2137 |

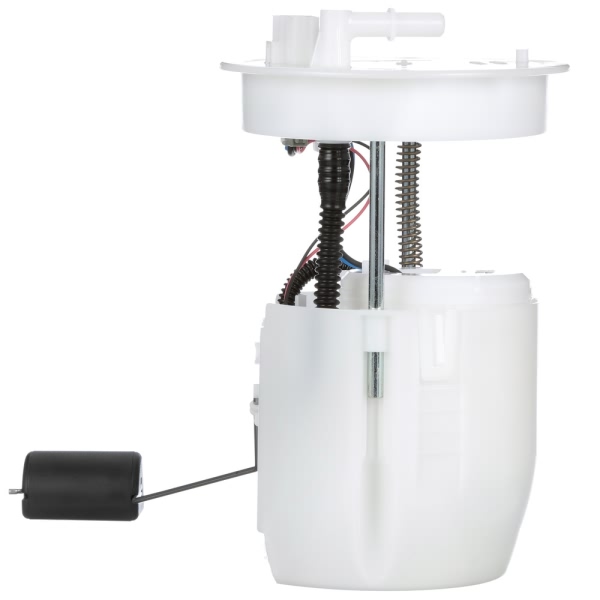

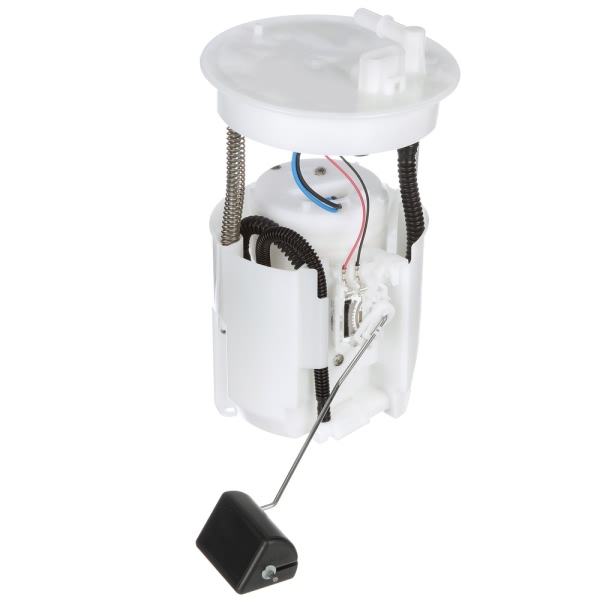

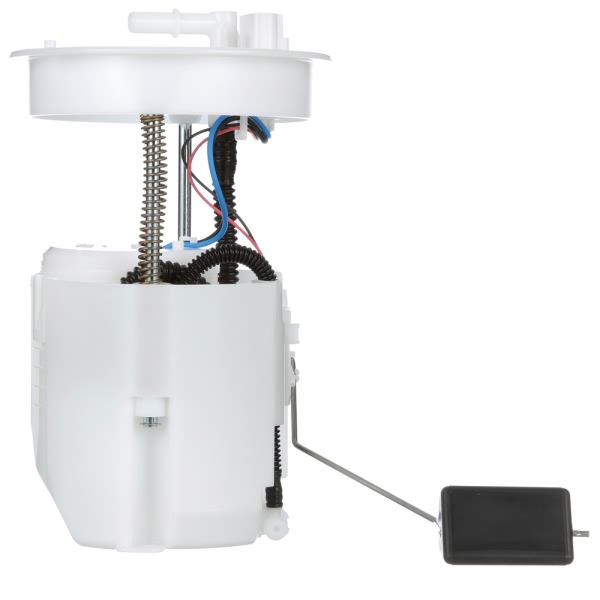

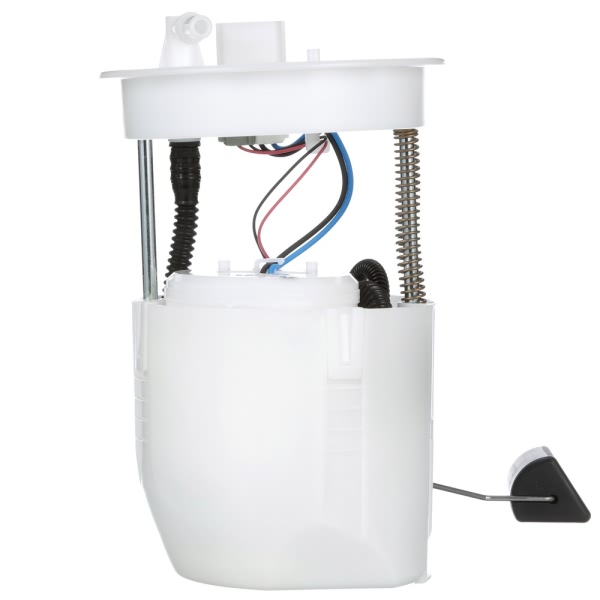

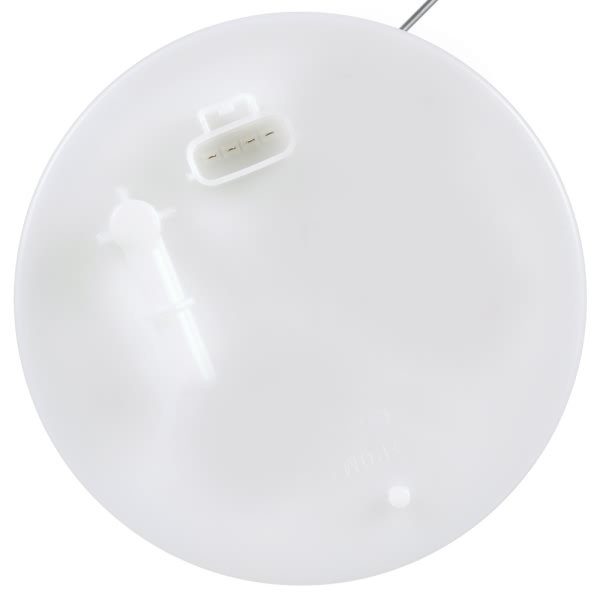

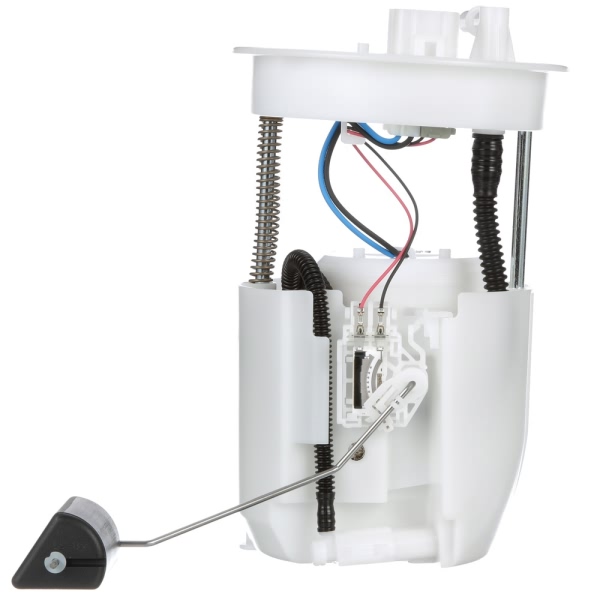

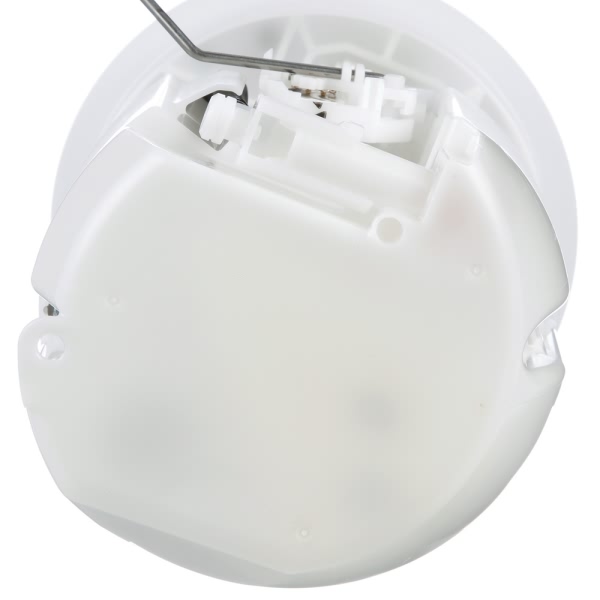

Part Description | Fuel Pump Module Assembly |
Current Draw | 10 |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 1 |
Outlet Type | Quick Connect |
Regulator Included | Yes |
Resistance Ohms Empty | 200.0 |
Resistance Ohms Full | 20.0 |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604285978 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2016 Scion iA | All Trims | 4 Cyl 1.5L |
2019 Toyota Yaris | All Trims | 4 Cyl 1.5L |
2017-2018 Toyota Yaris iA | All Trims | 4 Cyl 1.5L |
