Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG2132 |

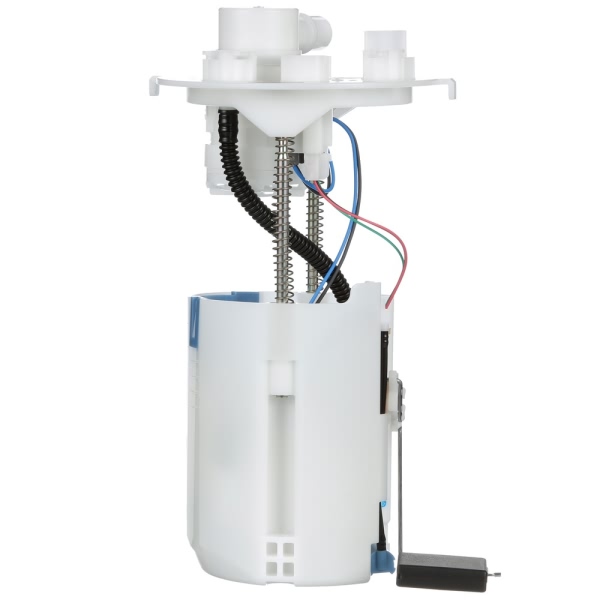

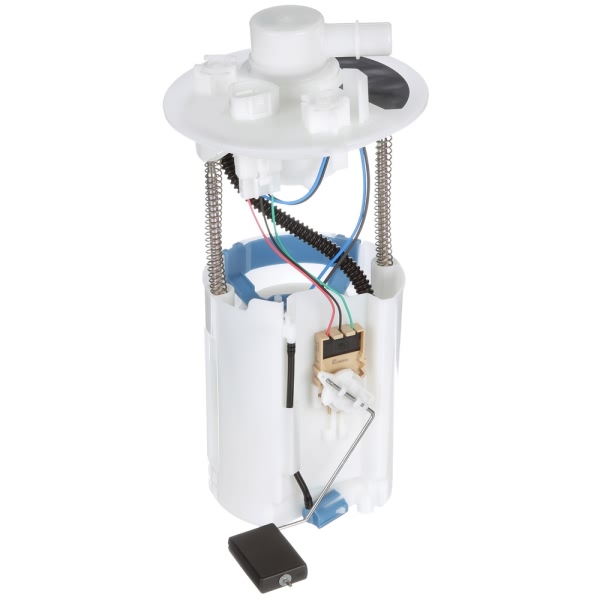

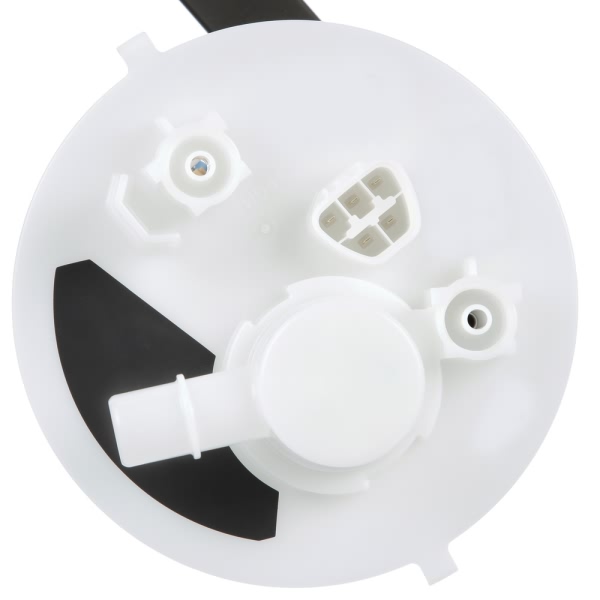

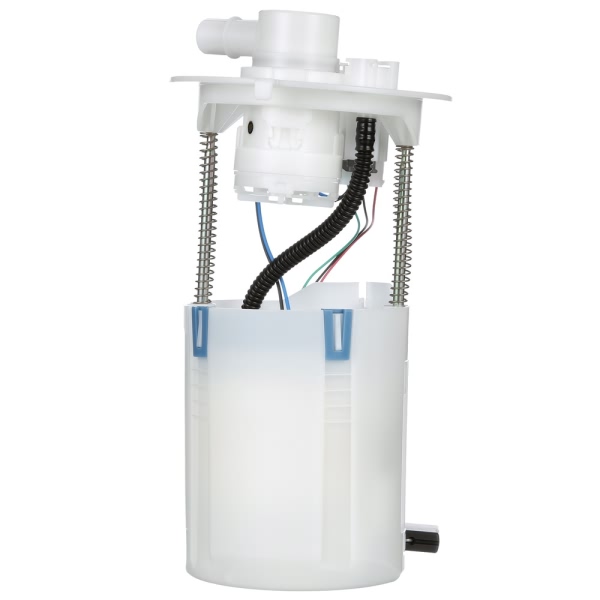

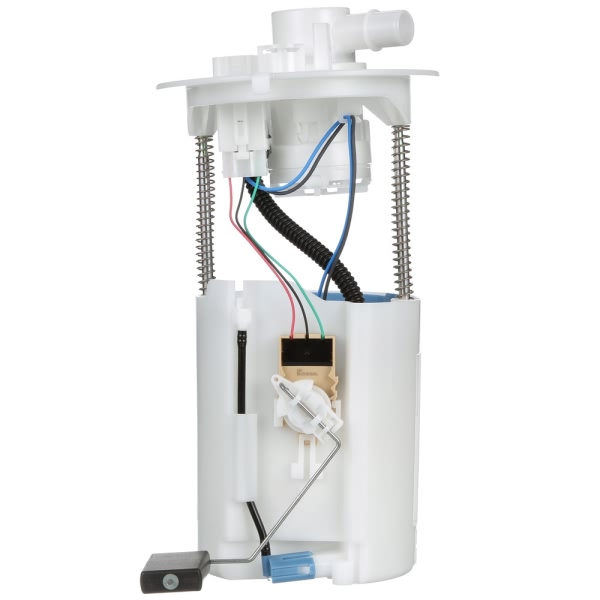

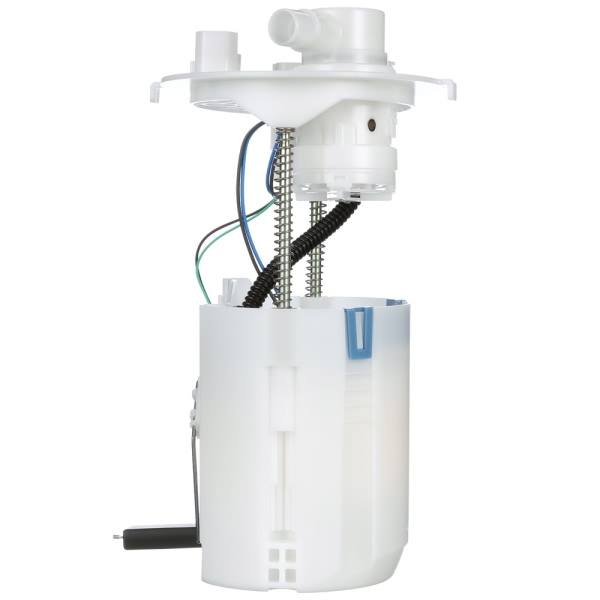

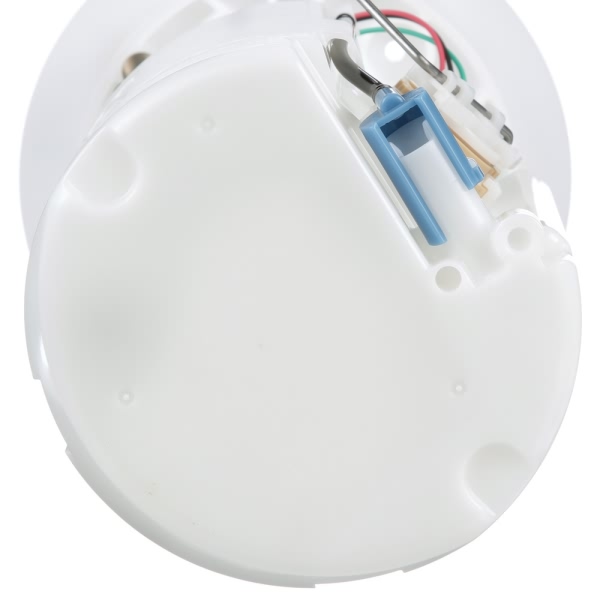

Part Description | Fuel Pump Module Assembly |
Current Draw | 10 |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Outlet Outside Diameter | 0.313'' |
Outlet Quantity | 3 |
Outlet Type | Push'' |
Regulator Included | Yes |
Resistance Ohms Empty | 460.0 |
Resistance Ohms Full | 35.0 |
Strainer Included | Yes |
System Pressure | 44 PSI |
Terminal Gender | Male |
Terminal Quantity | 6 |

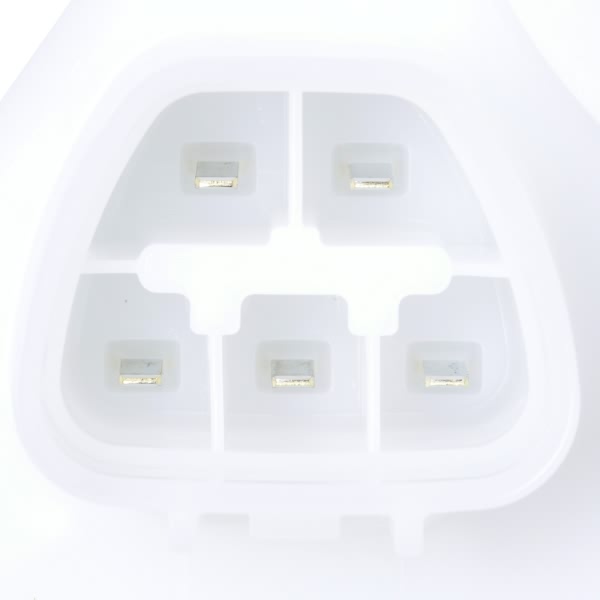

Terminal Type | Blade |
UPC | 689604285916 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2016-2019 Toyota Prius | All Trims | 4 Cyl 1.8L |
2019 Toyota Prius AWD-e | All Trims | 4 Cyl 1.8L |
2017-2019 Toyota Prius Prime | All Trims | 4 Cyl 1.8L |
