Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG2115 |

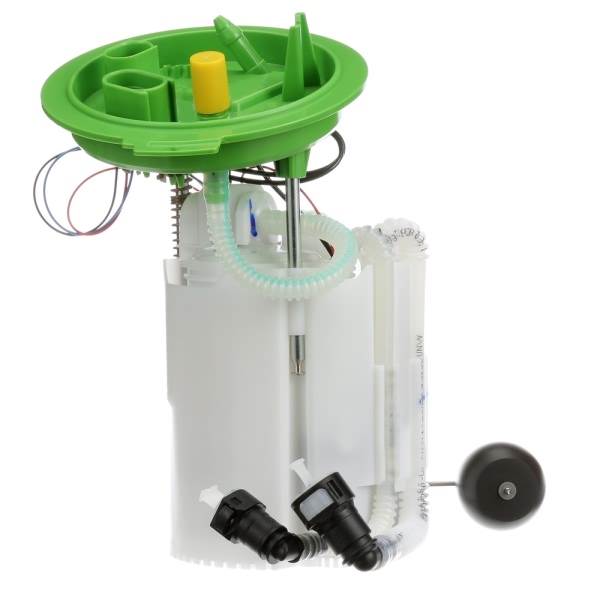

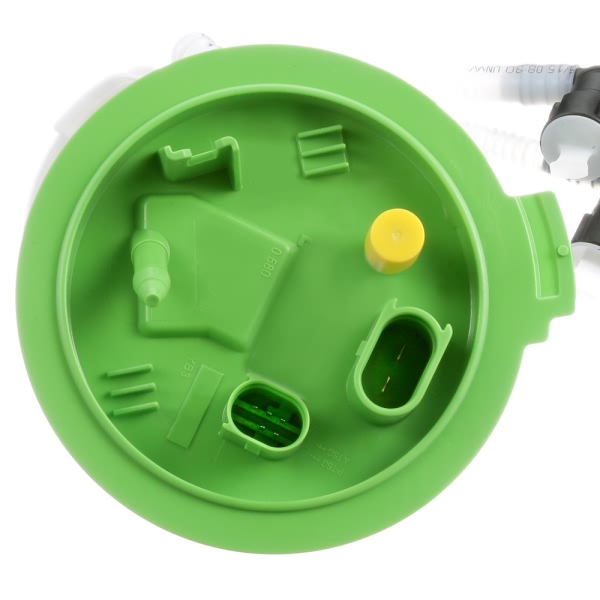

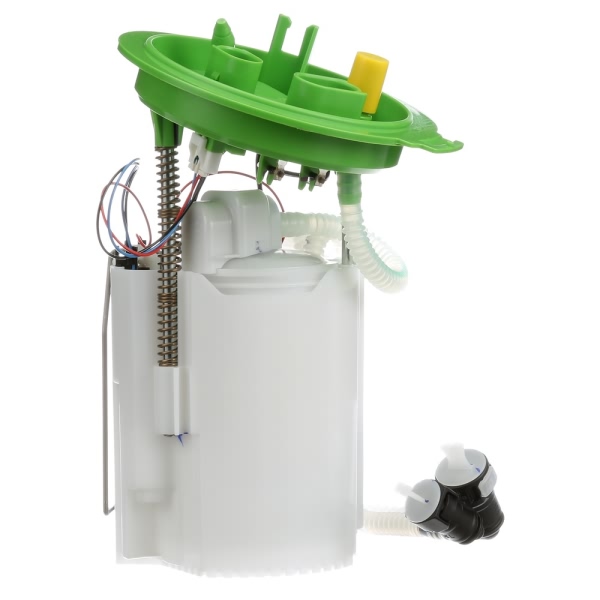

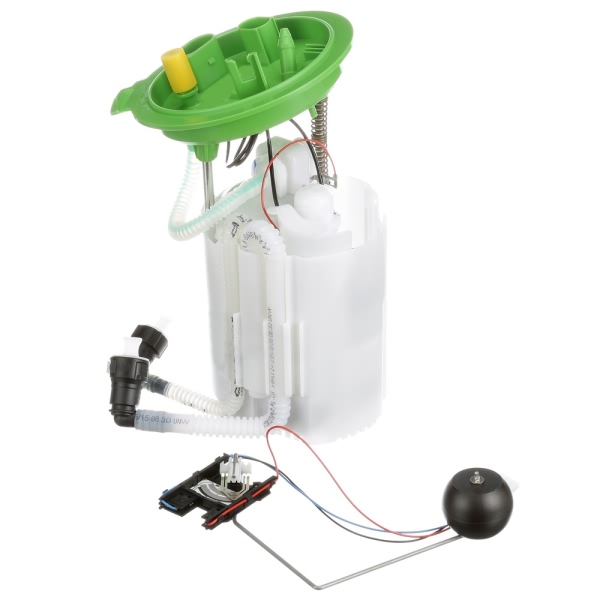

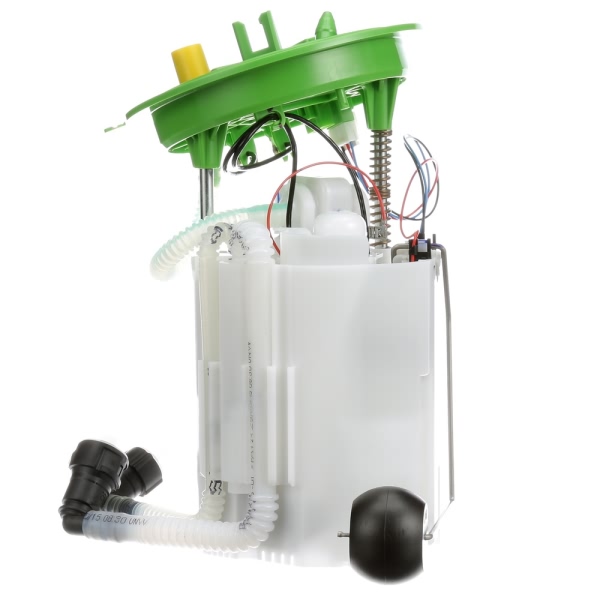

Part Description | Fuel Pump Module Assembly |
Average Current Draw | 10 |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In Tank |

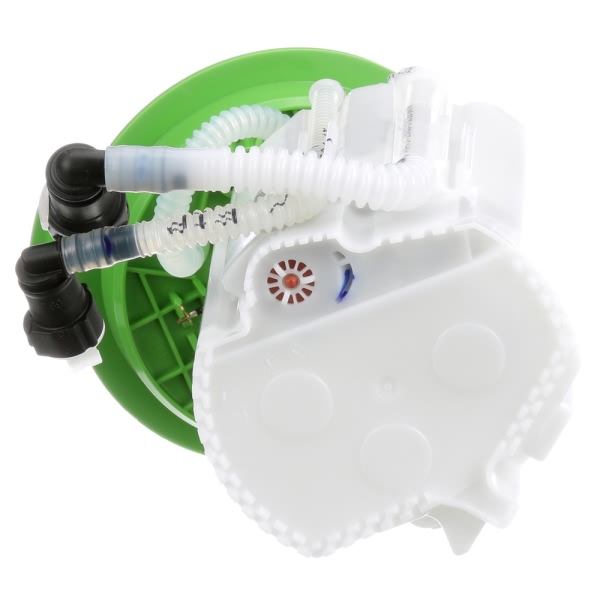

Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Lock Ring Included | No |
Outlet Outside Diameter | 0.375 |
Outlet Quantity | 1 |

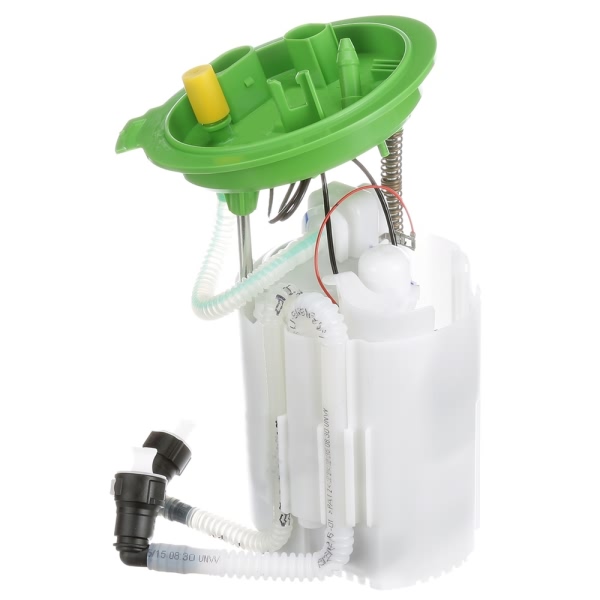

Outlet Type | Quick Connect |

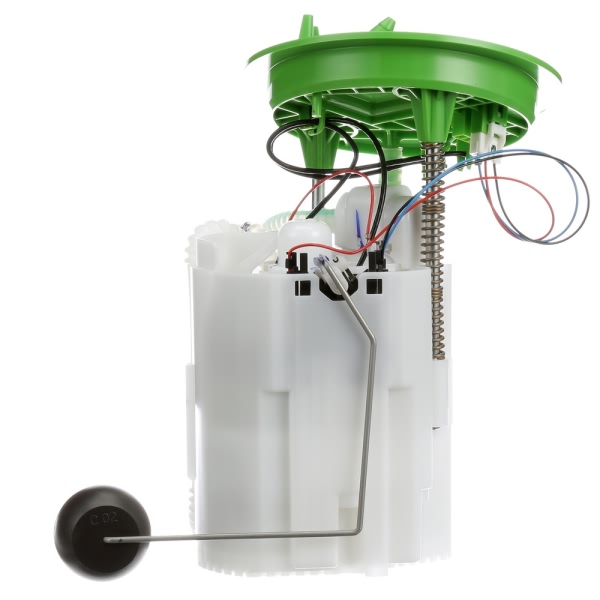

Package Contents | Fuel Pump Module Assembly w/Float Arm, Instruction Sheet |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 295.0 |
Resistance Ohms Full | 80.0 |
Strainer Included | Yes |
System Pressure | 58 psi |

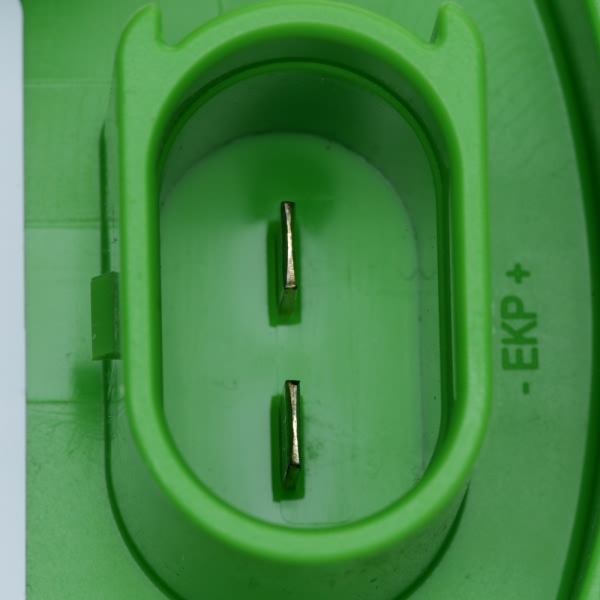

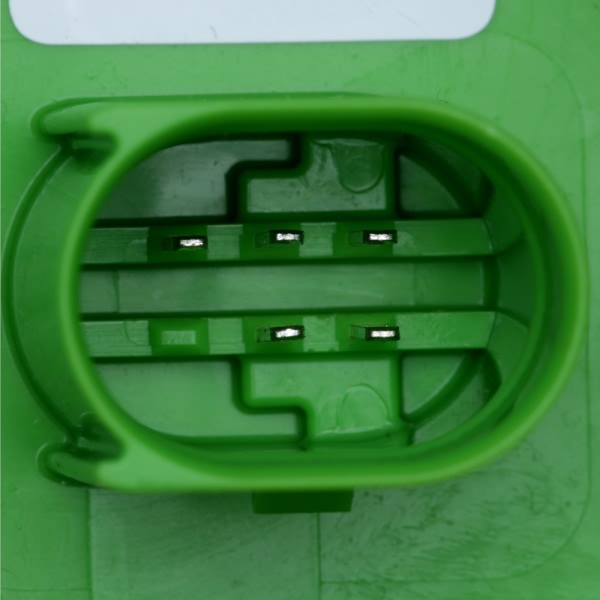

Terminal Gender | Male |
Terminal Quantity | 7 |
Terminal Type | Blade |
UPC | 689604285541 |
Vapor Pressure Sensor | No |
Voltage | 12.0 |
Year Make Model | Trim | Engine |
---|---|---|
2015-2019 Audi A3 Quattro | All Trims | 4 Cyl 2.0L |
2015-2019 Audi S3 | All Trims | 4 Cyl 2.0L |
2016-2019 Audi TT Quattro | All Trims | 4 Cyl 2.0L |
2017-2019 Volkswagen Golf Alltrack | All Trims | 4 Cyl 1.8L |
2015-2018 Volkswagen Golf R | All Trims | 4 Cyl 2.0L |
2017-2018 Volkswagen Golf SportWagen | S | 4 Cyl 1.8L |
