Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG2059 |

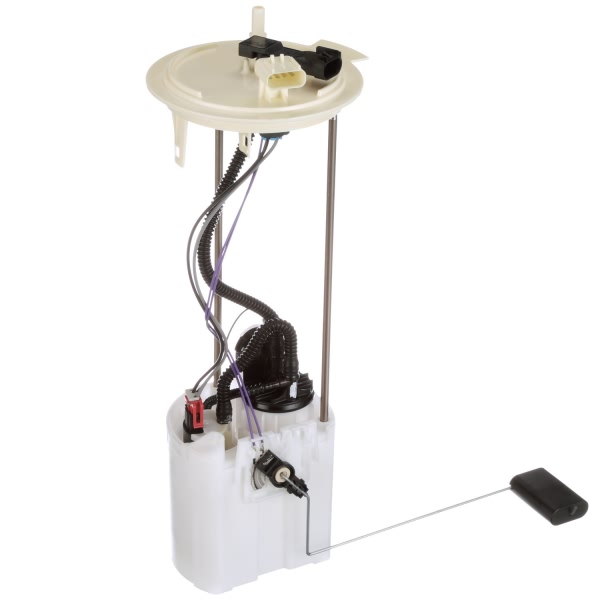

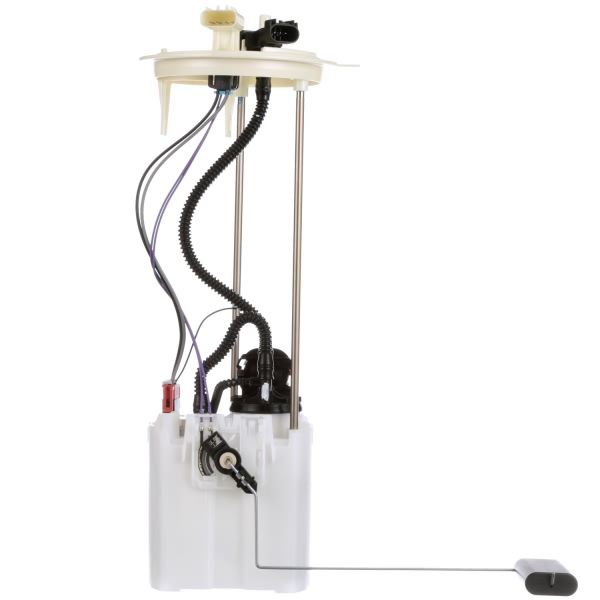

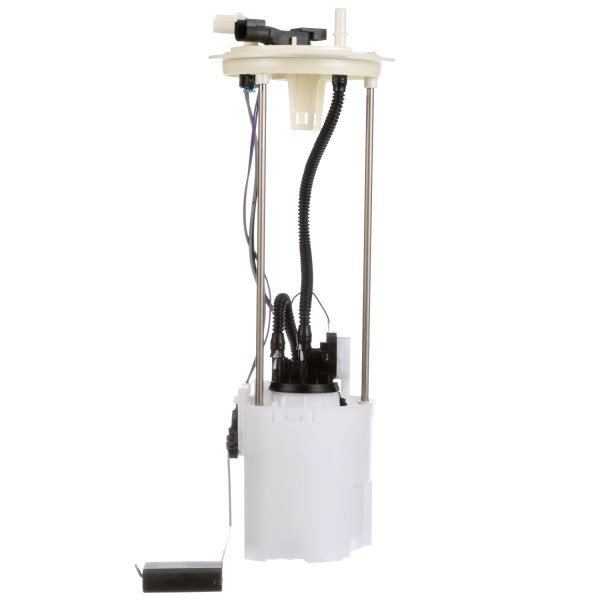

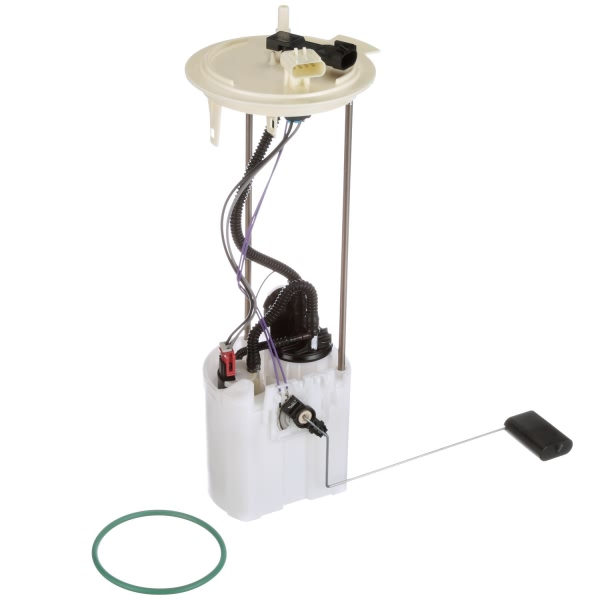

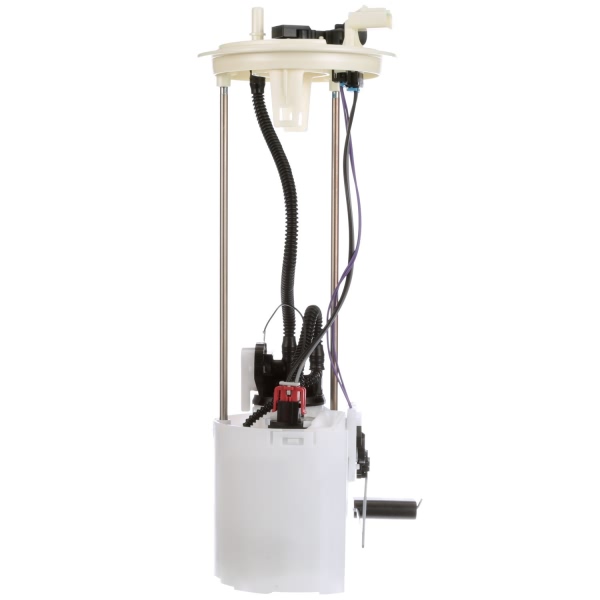

Part Description | Fuel Pump Module Assembly |
Current Draw | 11 |
Flow Rating | 48 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Flex |
Gasket or Seal Included | No |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 120.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 1 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 180.0 |
Resistance Ohms Full | 10.0 |
Strainer Included | Yes |
System Pressure | 55 psi |

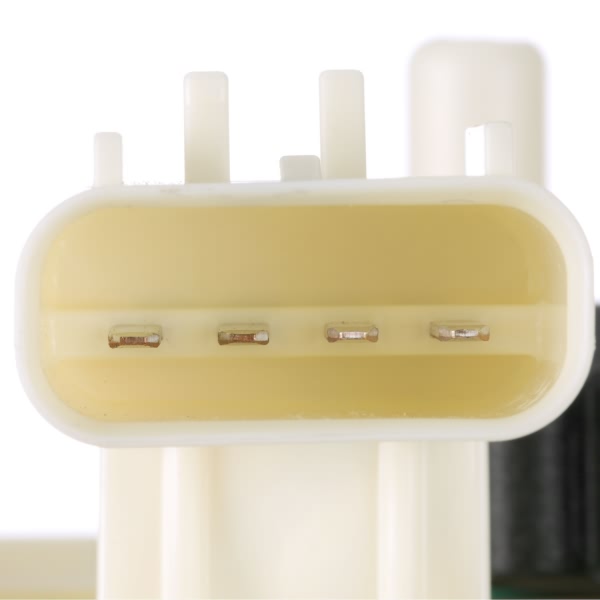

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604283967 |
Vapor Pressure Sensor | Yes |
Voltage | 12.5 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2011-2016 Ford F-350 Super Duty | Lariat | 8 Cyl 6.2L |
2011-2016 Ford F-350 Super Duty | XL | 8 Cyl 6.2L |
2011-2016 Ford F-350 Super Duty | XLT | 8 Cyl 6.2L |
