Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG2001 |

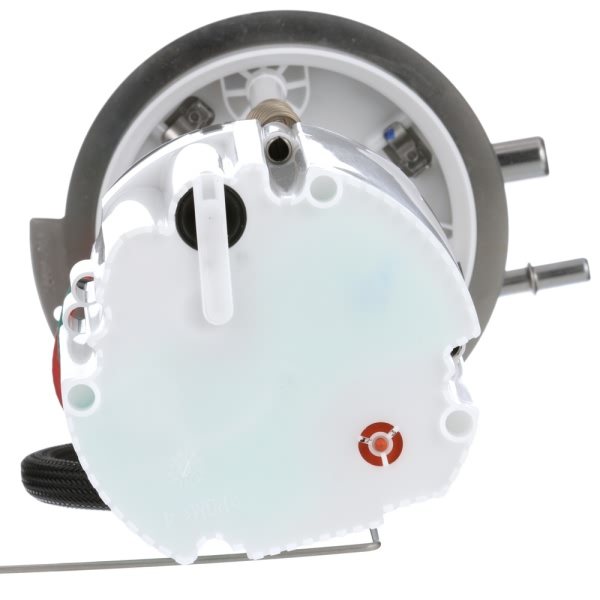

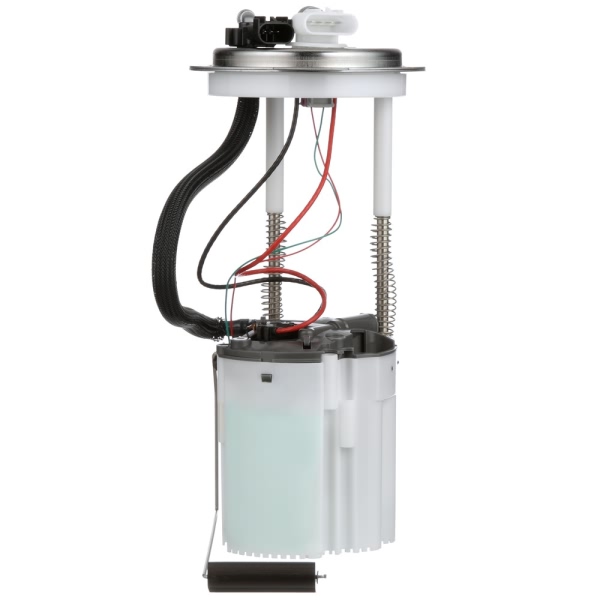

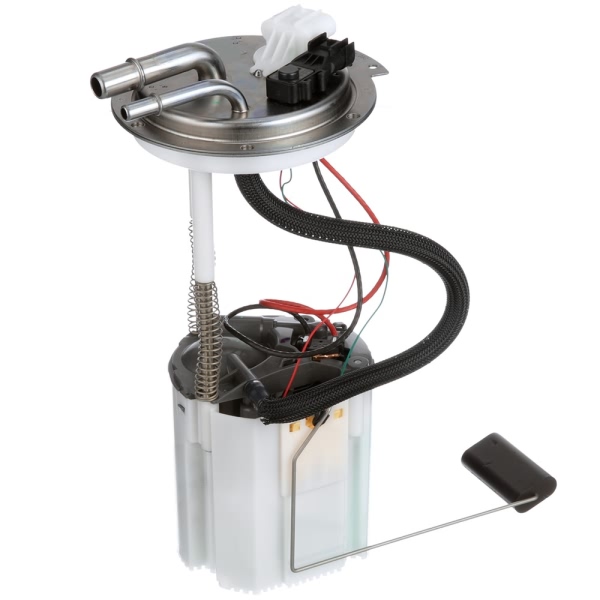

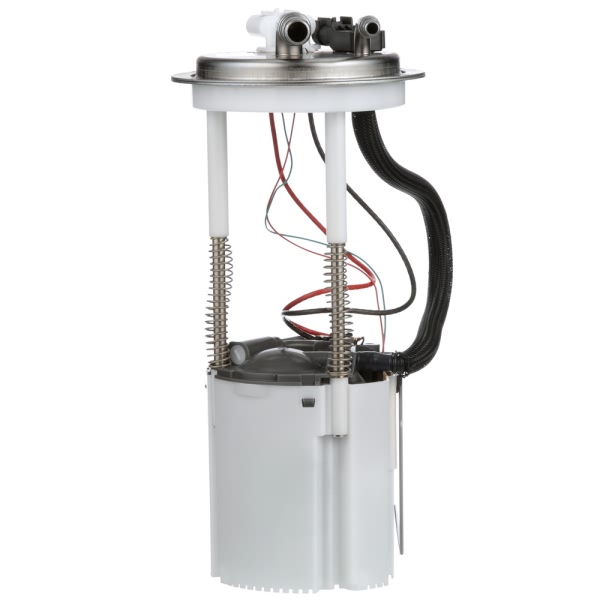

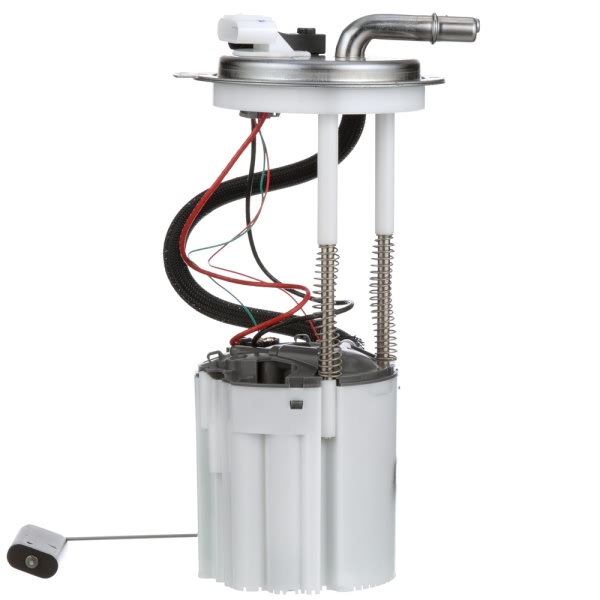

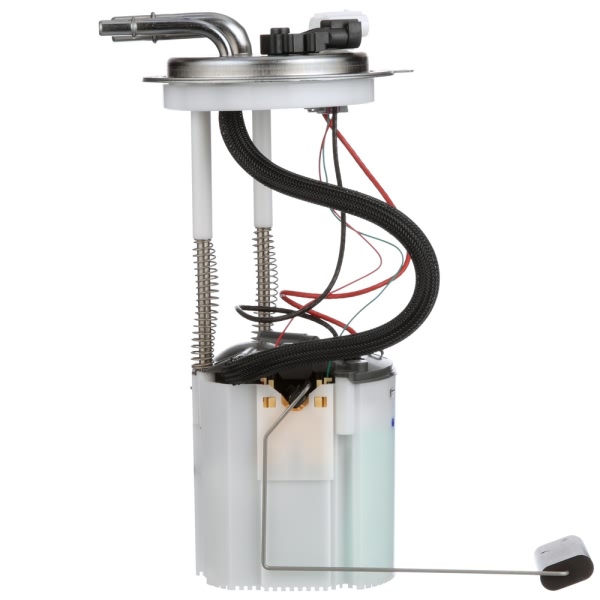

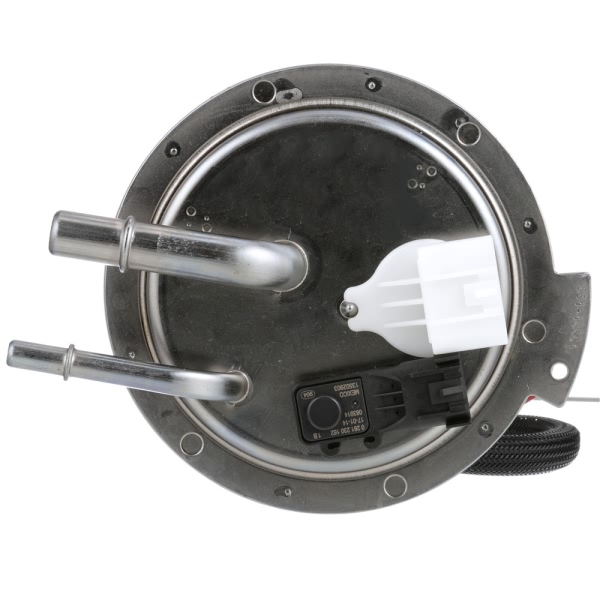

Part Description | Fuel Pump Module Assembly |
Current Draw | 12 |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |

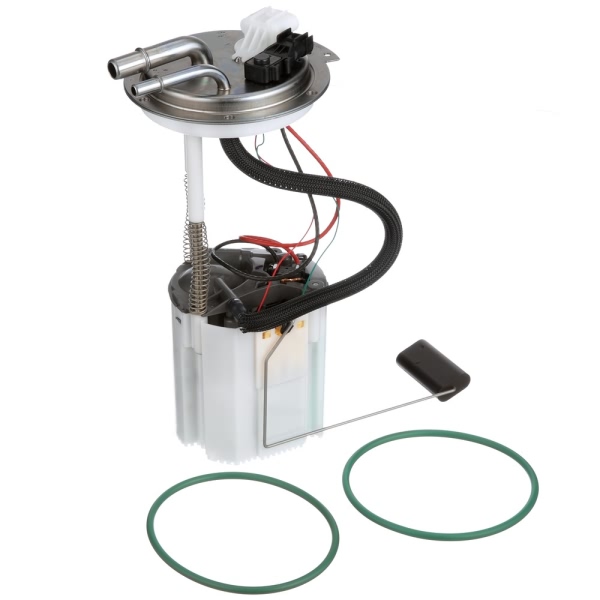

Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 250.0 |
Resistance Ohms Full | 40.0 |
Strainer Included | Yes |
System Pressure | 62 psi |

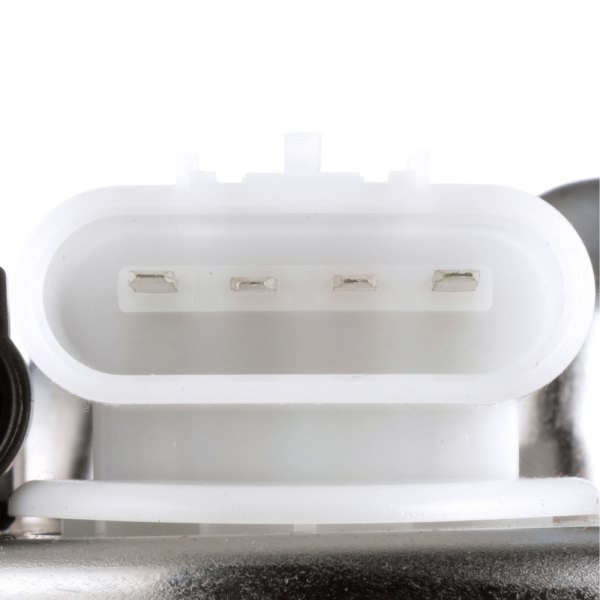

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604279670 |
Vapor Pressure Sensor | Yes |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2010-2012 Chevrolet Express 3500 | All Trims | 8 Cyl 4.8L |
2010-2016 Chevrolet Express 3500 | Base | 8 Cyl 6.0L |
2013-2016 Chevrolet Express 3500 | Base | 8 Cyl 4.8L |
2010-2012 GMC Savana 3500 | All Trims | 8 Cyl 4.8L |
2010-2016 GMC Savana 3500 | Base | 8 Cyl 6.0L |
2015-2016 GMC Savana 3500 | Base | 8 Cyl 4.8L |
