Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1983 |

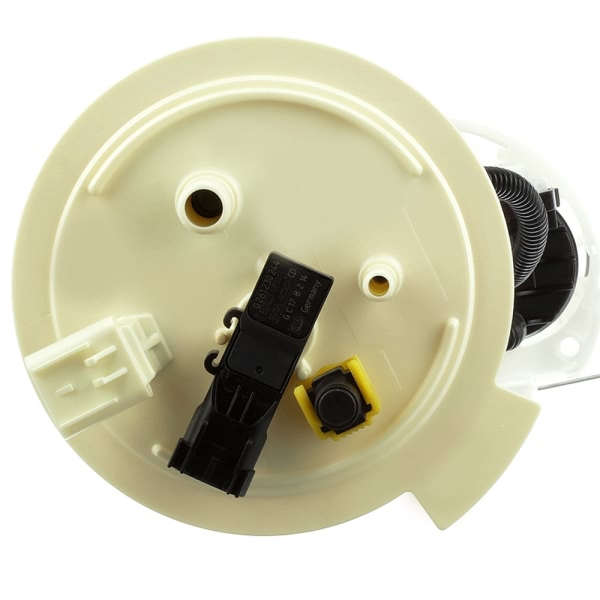

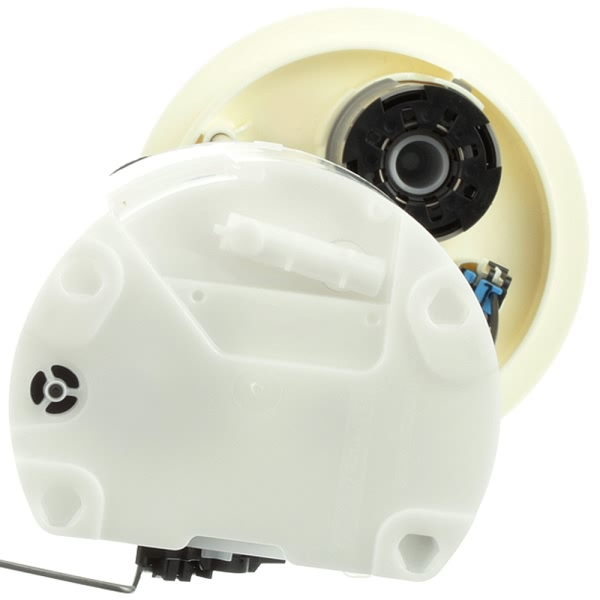

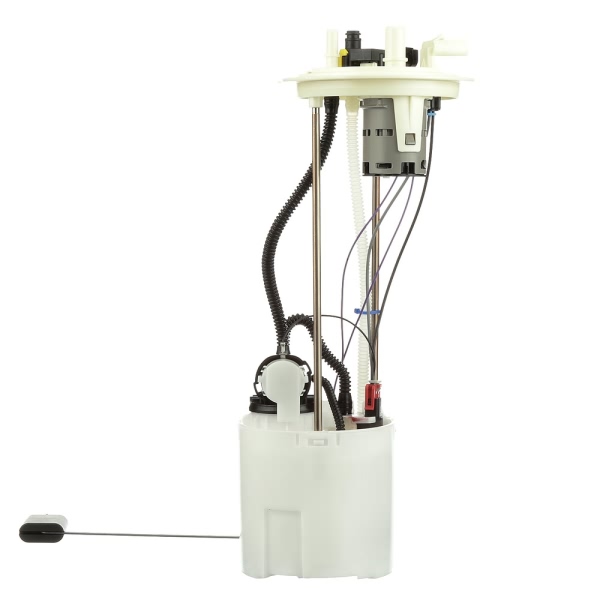

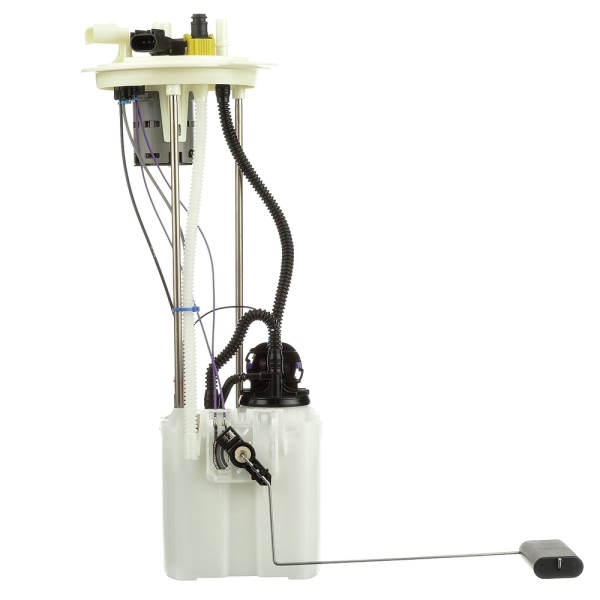

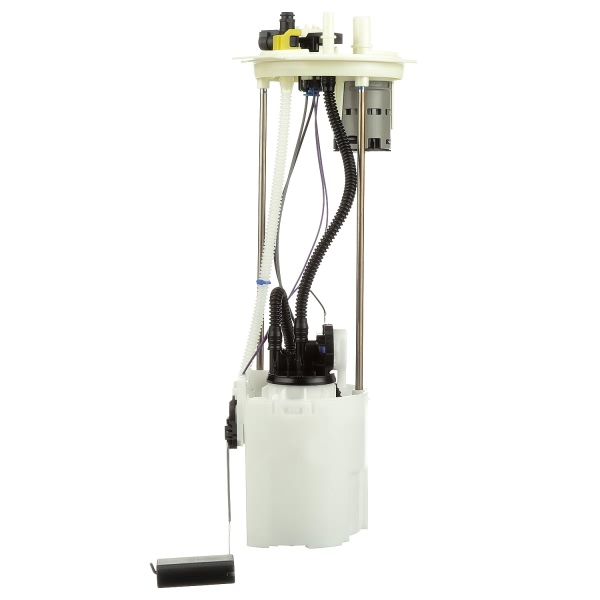

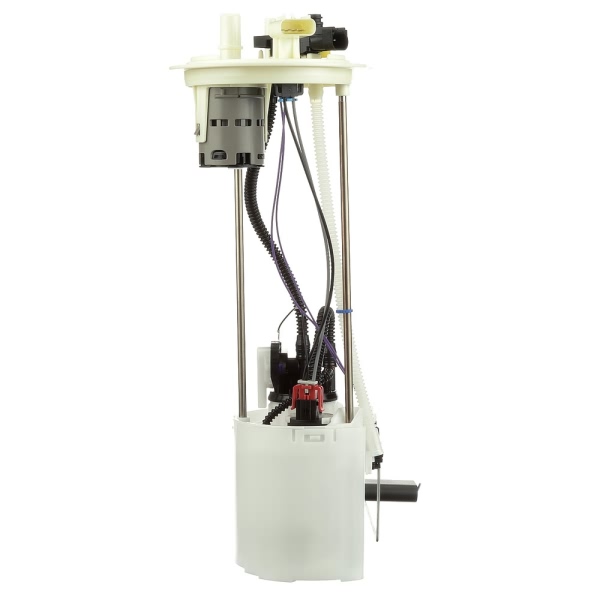

Part Description | Fuel Pump Module Assembly |
Current Draw | 10 |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 102.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 3 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 180.0 |
Resistance Ohms Full | 10.0 |
Strainer Included | Yes |
System Pressure | 58 psi |

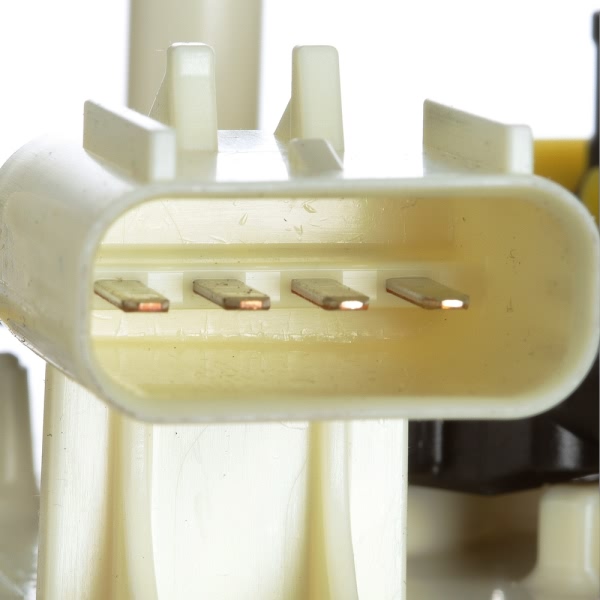

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604272107 |
Vapor Pressure Sensor | Yes |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2010-2014 Ford E-350 Super Duty | Base | 10 Cyl 6.8L |
2011-2014 Ford E-350 Super Duty | Base | 8 Cyl 5.4L |
2015-2016 Ford E-350 Super Duty | All Trims | 8 Cyl 5.4L |
2015-2019 Ford E-350 Super Duty | All Trims | 10 Cyl 6.8L |
