Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1906 |

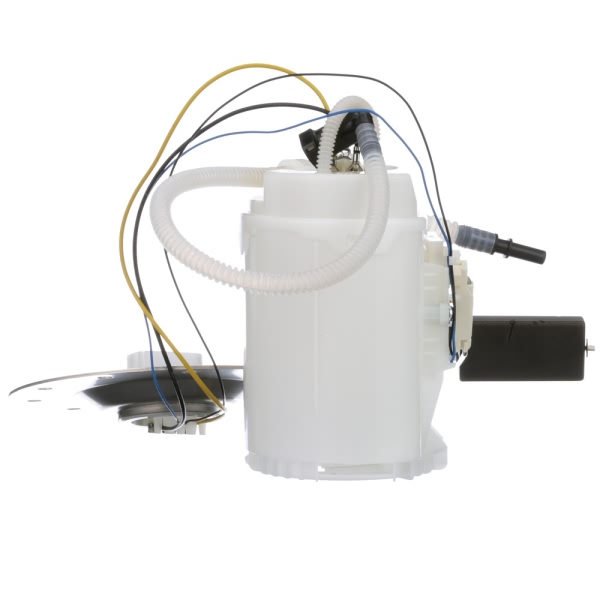

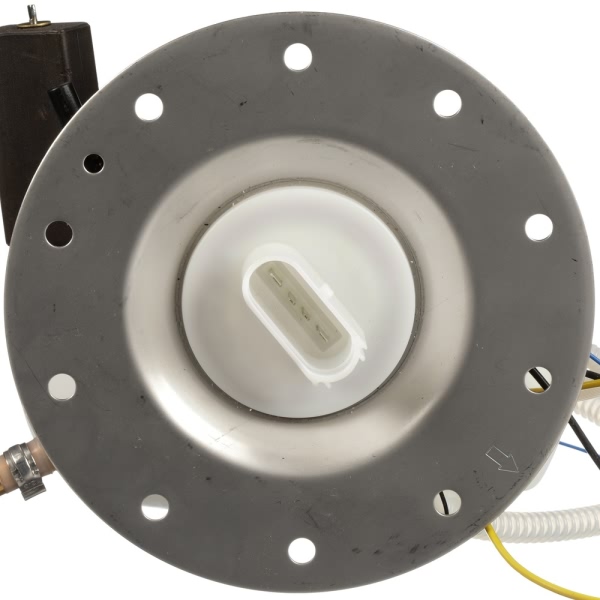

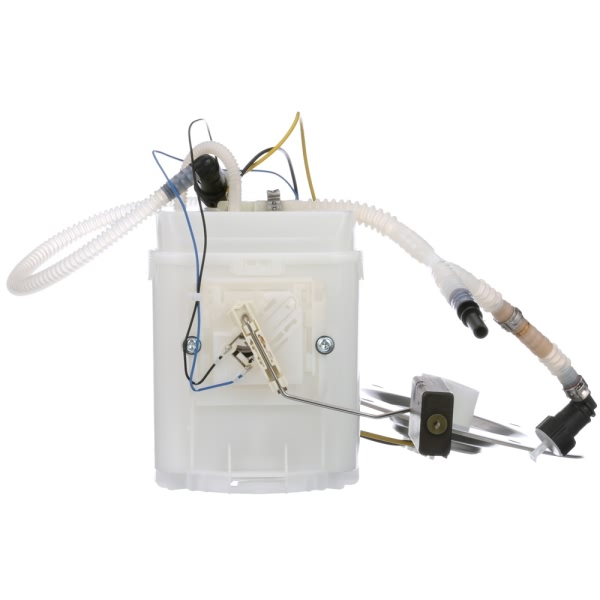

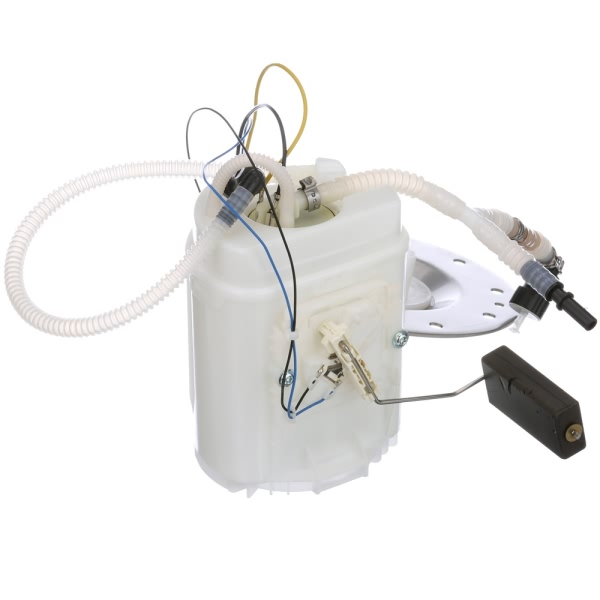

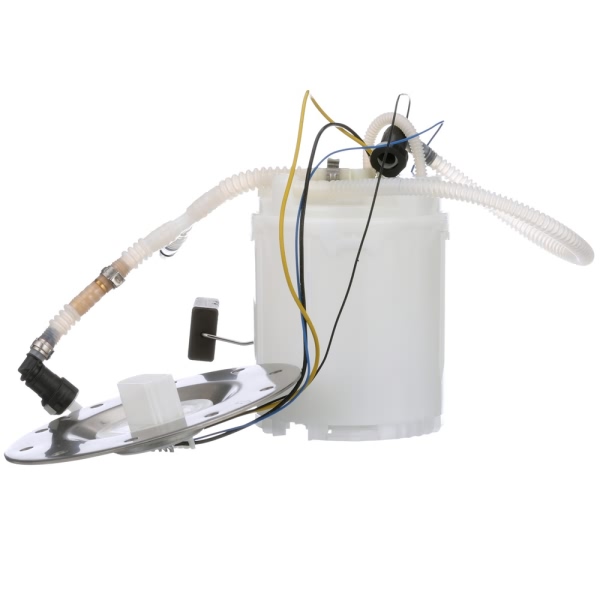

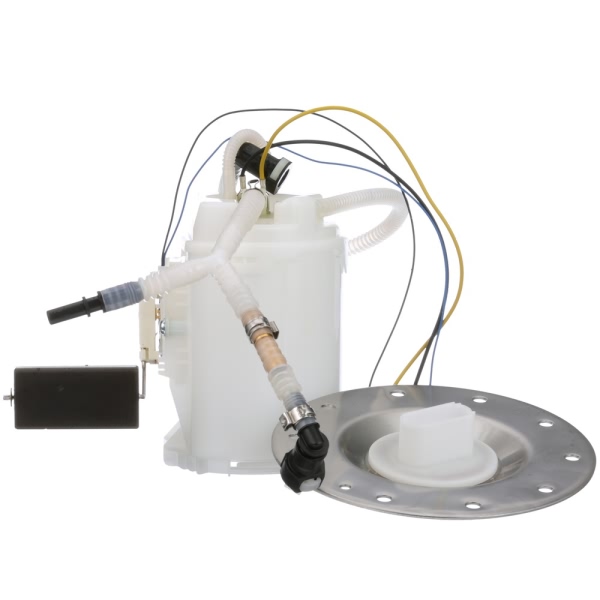

Part Description | Fuel Pump Module Assembly |
Current Draw | 10 |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In Tank |
Inlet Type | Strainer |

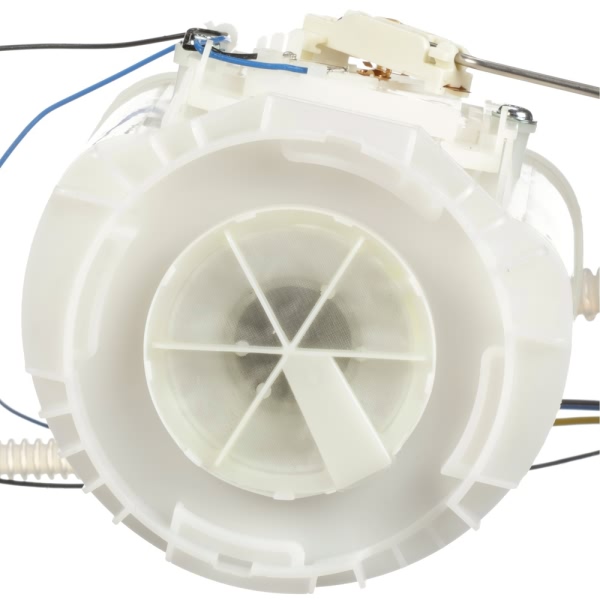

Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 138.0 PSI |
Outlet Outside Diameter | 0.313'' |
Outlet Quantity | 1 |
Outlet Type | Female Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 53.0 |
Resistance Ohms Full | 290.0 |
Strainer Included | Yes |
System Pressure | 58 psi |
Terminal Gender | Male |

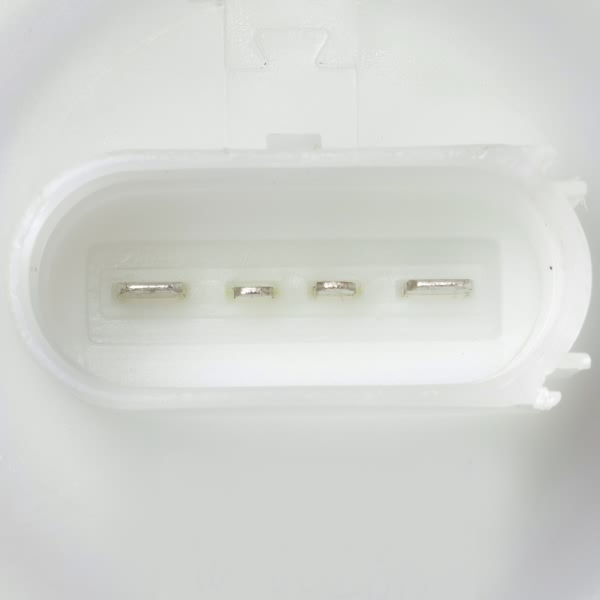

Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604265697 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2004-2005 Volkswagen Beetle | All Trims | 4 Cyl 1.8L |
2004-2005 Volkswagen Beetle | All Trims | 4 Cyl 2.0L |
2006-2010 Volkswagen Beetle | All Trims | 5 Cyl 2.5L |
2004 Volkswagen Jetta | All Trims | 6 Cyl 2.8L |
2004-2005 Volkswagen Jetta | All Trims | 4 Cyl 1.8L |
2004-2005 Volkswagen Jetta | All Trims | 4 Cyl 2.0L |
